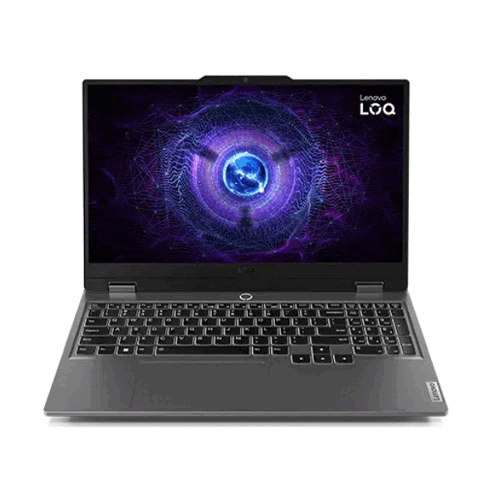

Lenovo LOQ Gaming 15IRX9 83DV0015PH | 15.6in FHD IPS 300nits 144Hz | Core i7-13650HX | 16GB RAM | 512GB SSD | RTX 4060 8GB |WIN11

Technical Specifications

Processor: Intel Core i7-13650HX, 14C (6P + 8E) / 20T, P-core 2.6 / 4.9GHz, E-core 1.9 / 3.6GHz, 24MB

Graphics: NVIDIA GeForce RTX 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 115W

Chipset Intel HM770 Chipset

Memory: 2x 8GB SO-DIMM DDR5-4800

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-4800

Storage: 512GB SSD M.2 2242 PCIe 4.0x4 NVMe

Storage Support Up to two drives, 2x M.2 SSD  M.2 2242 SSD up to 1TB

Storage Slot Two M.2 2280 PCIe 4.0 x4 slots

Card Reader None

Optical  None

Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers Stereo speakers, 2W x2, optimized with Nahimic Audio

Camera HD 720p with E-shutter

Microphone 2x, Array

Battery Integrated 60Wh

Max Battery Life               -

Power Adapter 230W Slim Tip (3-pin)

Special Features AI Chip: LA1

DESIGN

Display: 15.6inch FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC

Touchscreen None

Color Calibration None

Keyboard 4-Zone RGB Backlit, English

Case Color Luna Grey

Surface Treatment Painting

Case Material PC-ABS (Top), PC-ABS (Bottom)

Dimensions (WxDxH) 359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)

Weight Starting at 2.38 kg (5.25 lbs)

SOFTWARE

Operating System Windows 11 Home Single Language, English

Bundled Software Office Home & Student 2021

CONNECTIVITY

Ethernet Integrated 100/1000M

WLAN + Bluetooth Wi-Fi 6, 11ax 2x2 + BT5.1

Standard Ports
3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with PD 140W and DisplayPort 1.4
1x HDMI 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector

Security Chip Firmware TPM 2.0 Enabled

Fingerprint Reader None

Other Security E-shutter

SERVICE

Base Warranty   1-year, Courier or Carry-in

Upgrade 2Y Premium Care -IPENTRY (ESS)

ACCESSORIES

Bundled Accessories Lenovo LOQ M100 RGB Mouse

CERTIFICATIONS

Green Certifications ErP Lot 3

RoHS compliant

Other Certifications TÜV Rheinland Low Blue Light (Software Solution)
