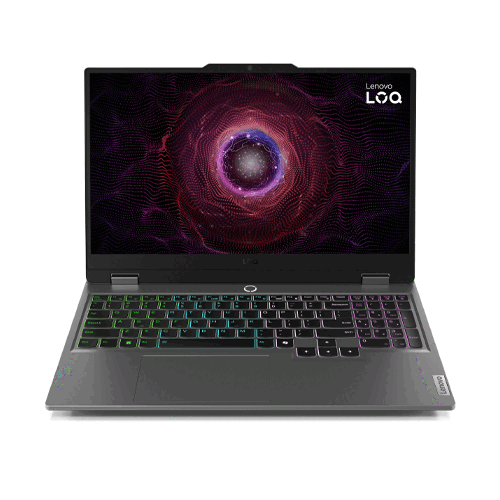

Lenovo LOQ 15AHP10 83JG00C4PH | 15.6in FHD 144Hz | AMD Ryzen 7 250 | 16GB DDR5 | 512GB SSD | RTX 5060 8GB | Win11 Home

Tech Specifications

PERFORMANCE

Processor
AMD Ryzen? 7 250 (8C / 16T, 3.3 / 5.1GHz, 8MB L2 / 16MB L3)

AI PC Category
AI-Powered Gaming PC

NPU
Integrated AMD Ryzen? AI, up to 16 TOPS

Graphics
NVIDIA® GeForce RTX? 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 100W, 572 AI TOPS

Chipset
AMD SoC Platform

Memory
1x 16GB SODIMM DDR5-5600

Memory Slots
Two DDR5 SODIMM slots, dual-channel capable

Max Memory
Up to 32GB DDR5-5600 offering

Storage
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Support
Two M.2 2280 PCIe® 4.0 x4 slots

Storage Slot
Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB each

Card Reader
None

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers
Stereo speakers, 2W x2, optimized with Nahimic Audio

Camera
2x, Array

Microphone
5.0MP with E-shutter

Battery
60Wh

Power Adapter
170W Slim Tip (3-pin)

Special Features
AI Chip: LA1

DESIGN

Display
15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC®

Touchscreen
None

Screen-to-Body Ratio
88% AAR (active area ratio)

Color Calibration
None

Pen
Pen Not Supported

Keyboard
24-Zone RGB Backlit, English

Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)
359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)

Weight
Starting at 2.4 kg (5.29 lbs)

Case Color
Luna Grey

Case Material
PC-ABS (Top), PC-ABS (Bottom)

Surface Treatment
Painting

SOFTWARE

Operating System
Windows® 11 Home Single Language, English

Bundled Software
Office Trial + Lenovo® AI Now

CONNECTIVITY

Ethernet
Wi-Fi® 6, 802.11ax 2x2 + BT5.3

WLAN + Bluetooth
WWAN Not Supported

WWAN
100/1000M (RJ-45)

Standard Ports
1x Slim tip Power connector
3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort? 1.4
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)

Docking
Various docking solutions supported via or USB-C®. For more compatible docking solutions, please visit Docking for LOQ? 15AHP10

SECURITY & PRIVACY

Security Chip
Firmware TPM 2.0 Enabled

Fingerprint Reader
None

Other Security
E-shutter

SERVICE

Base Warranty
1-year, Courier or Carry-in

Included Warranty Upgrade
2Y Premium Care -IPENTRY (ESS)

ACCESSORIES

Bundled Accessories
None

CERTIFICATIONS

Green Certifications
ErP Lot 6/26
RoHS compliant

Other Certifications
TÜV Rheinland® Low Blue Light (Software Solution)

Mil-Spec Test
