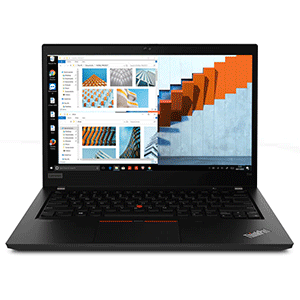

Lenovo ThinkPad T14 Gen1 20S00055PH | 14in FHD IPS | Core i5-10210U | 8GB DDR4 | 512GB SSD | Intel UHD Graphics | Win10 Pro

Technical Specifications

Model: Lenovo ThinkPad T14 Gen1

Part Number : 20S00055PH

PERFORMANCE

Processor: Intel Core i5-10210U (4C / 8T, 1.6 / 4.2GHz, 6MB)

Graphics: Integrated Intel UHD Graphics

Chipset: Intel SoC Platform

Memory: 8GB Soldered DDR4-2666

Memory Slots: One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable

Max Memory: Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-2666

Storage: 512GB SSD M.2 2280 PCIe 3.0x4 NVMe Opal2

Storage Support: One drive, 1x M.2 2280 SSD or 1x M.2 2242 SSD ? M.2 2280 SSD up to 2TB ? M.2 2242 SSD up to 128GB ? Optional Intel Optane Memory integrated with SSD, M.2

Card Reader: MicroSD Reader

Optical: None

Audio Chip: High Definition (HD) Audio, Realtek ALC3287 codec

Speakers Stereo: speakers, 2W x2, Dolby Audio

Camera: 720p with ThinkShutter

Microphone: 2x, Array

Battery: Integrated 50Wh

Max Battery Life: MobileMark 2014: 16.5 hr MobileMark 2018: 11.45 hr JEITA 2.0: 17.05 hr

Power Adapter: 45W USB-C

DESIGN

Display: 14" FHD (1920x1080) IPS 250nits Anti-glare

Touchscreen: None

Keyboard: Backlit, English

Case Color: Black

Surface Treatment: Not Anti-microbial

Case Material: PPS / 50% GF (Top), PC + ABS / Talc15 + Magnesium Alloy (Keyboard Cover), PA / 50% GF (Bottom)

Dimensions (WxDxH): 329 x 227 x 17.9 mm (12.95 x 8.94 x 0.70 inches)

Weight: 1.55 kg (3.41 lbs)

SOFTWARE

Operating System: Windows 10 Pro 64, English

Bundled Software: None

CONNECTIVITY

Ethernet: 100/1000M

WLAN + Bluetooth: Intel AX201 11ax, 2x2 + BT5.2

WWAN: Fibocom L850-GL

SIM Card: None

NFC: NFC

Standard Ports:

        1x side docking connector

1x USB-C 3.2 Gen 1 (support data transfer, Power Delivery and DisplayPort 1.2)

1x Ethernet (RJ-45)

1x USB 3.2 Gen 1

1x USB 3.2 Gen 1 (Always On)

1x HDMI 1.4b

1x headphone / microphone combo jack (3.5mm)

1x microSD card reader

1x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery and DisplayPort 1.2)

Optional Ports 1x Nano-SIM card slot (WWAN models)

Monitor Cable None

SECURITY & PRIVACY

Smart Card Reader: None

Security Chip: Discrete TPM 2.0

Fingerprint Reader: Touch Style, Match-on-Chip

Physical Locks: Kensington Security Slot

Other Security: ThinkShutter camera cover

MANAGEABILITY

System Management: None

SERVICE

Base Warranty :1-year, Depot

Bundled ServiceL 3Y Premier Support Upgrade from 1Y Depot/CCI (5WS0T36154)

ACCESSORIES

Bundled Accessories: None

CERTIFICATIONS

Green Certifications

- ENERGY STAR 8.0

- EPEAT Gold

- RoHS compliant
