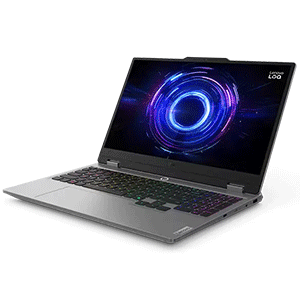

Lenovo LOQ Gaming 15IRX10 83JE00SUPH | 15.6in FHD 144Hz | Intel Core i5-13450HX | 16GB DDR5 | 512GB SSD | RTX 5060, 8GB | Win11

Technical Specifications:

Processor Intel® Core i5-13450HX, 10C (6P + 4E) / 16T, P-core 2.4 / 4.6GHz, E-core 1.8 / 3.4GHz, 20MB

AI PC Category AI-Powered Gaming PC

NPU -

Graphics NVIDIA® GeForce RTX? 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 100W, 572 AI TOPS

Chipset Intel® HM770 Chipset

Memory 1x 16GB SO-DIMM DDR5-4800

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-4800 offering

Storage 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Support Two M.2 2280 PCIe® 4.0 x4 slots

Storage Slot Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB each

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers Stereo speakers, 2W x2, optimized with Nahimic Audio

Camera 2x, Array

Microphone 5.0MP with E-shutter

Battery 60Wh

Power Adapter 170W Slim Tip (3-pin)

Special Features AI Chip: LA1

DESIGN

Display 15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC®

Touchscreen None

Screen-to-Body Ratio 88% AAR (active area ratio)

Color Calibration None

Pen Pen Not Supported

Keyboard White Backlit, English

Touchpad Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH) 359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)

Weight Starting at 2.4 kg (5.29 lbs)

Case Color Luna Grey

Case Material PC-ABS (Top), PC-ABS (Bottom)

Surface Treatment Painting

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Office Trial + Lenovo® AI Now

CONNECTIVITY

Ethernet Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WLAN + Bluetooth Non-WWAN

WWAN 100/1000M (RJ-45)

Standard Ports 3x USB-A (USB 5Gbps / USB 3.2 Gen 1)

- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort? 1.4

- 1x HDMI® 2.1, up to 8K/60Hz

- 1x Headphone / microphone combo jack (3.5mm)

- 1x Ethernet (RJ-45)

- 1x Power connector

-

Docking Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for LOQ? 15IRX10

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 Enabled

Fingerprint Reader None

Other Security E-shutter

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Warranty Upgrade 2Y Premium Care -IPENTRY (ESS)

ACCESSORIES

Bundled Accessories None

CERTIFICATIONS

Green Certifications ErP Lot 6/26

- RoHS compliant

Other Certifications TÜV Rheinland® Low Blue Light (Software Solution)

Mil-Spec Test
