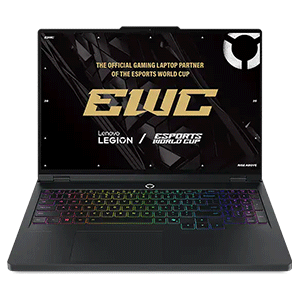

Lenovo Legion Pro 5i 16IRX10 83NN003TPH | 16in WQXGA 240Hz | Intel Core i9-14900HX | 32GB DDR5 | 1TB SSD | RTX 5070, 8GB | Win11

Technical Specifications:

LENOVO Legion Pro 5i 16IRX10 83NN003TPH

PERFORMANCE

Processor Intel® Core i9-14900HX, 24C (8P + 16E) / 32T, P-core 2.2 / 5.8GHz, E-core 1.6 / 4.1GHz, 36MB

AI PC Category AI-Powered Gaming PC

NPU None

Graphics NVIDIA® GeForce RTX? 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS

Chipset Intel® HM770 Chipset

Memory 2x 16GB SO-DIMM DDR5-5600

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-5600 offering

Storage 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Support Two M.2 2280 PCIe® 4.0 x4 slots

Storage Slot Up to two drives, 2x M.2 2280 SSD ? M.2 2280 SSD up to 1TB each ? M.2 2242 SSD up to 1TB each

Optical None

Card Reader None

Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone 2x, Array

Camera 5.0MP with E-shutter

Battery 80Wh

Power Adapter 245W Slim Tip (3-pin)

Special Features AI Chip: LA3

DESIGN

Display 16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR? 400, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance

Touchscreen None

Screen-to-Body Ratio 91.7% AAR (active area ratio)

Color Calibration Factory Color Calibration

Pen Pen Not Supported

Keyboard 24-Zone RGB Backlit, English

Touchpad Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH) 364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)

Weight Around 2.4 kg (5.3 lbs)

Case Color Eclipse Black

Case Material Aluminium (Top), PC-ABS (Bottom)

Surface Treatment Anodizing Sandblasting

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Office Home 2024 + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN Non-WWAN

Ethernet 100/1000M (RJ-45)

Standard Ports 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On

- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort? 2.1

- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort? 1.4

- 1x HDMI® 2.1, up to 8K/60Hz

- 1x Headphone / microphone combo jack (3.5mm)

- 1x Ethernet (RJ-45)

- 1x Power connector

Docking Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion Pro 5 16IRX10

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 Enabled

Fingerprint Reader None

Other Security E-shutter

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Upgrade 3Y ADP -IPMAIN(ESS), 3Y Legion Ultimate Support -IPMAIN (ESS)

ACCESSORIES

Bundled Accessories None

CERTIFICATIONS

Green Certifications ENERGY STAR® 8.0

ErP Lot 6/26

RoHS compliant

Other Certifications TÜV Rheinland® High Gaming Performance

TÜV Rheinland® Low Blue Light (Hardware Solution)
