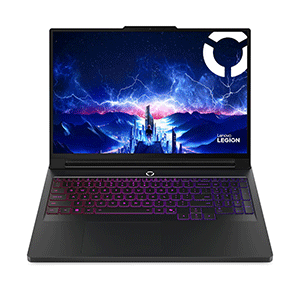

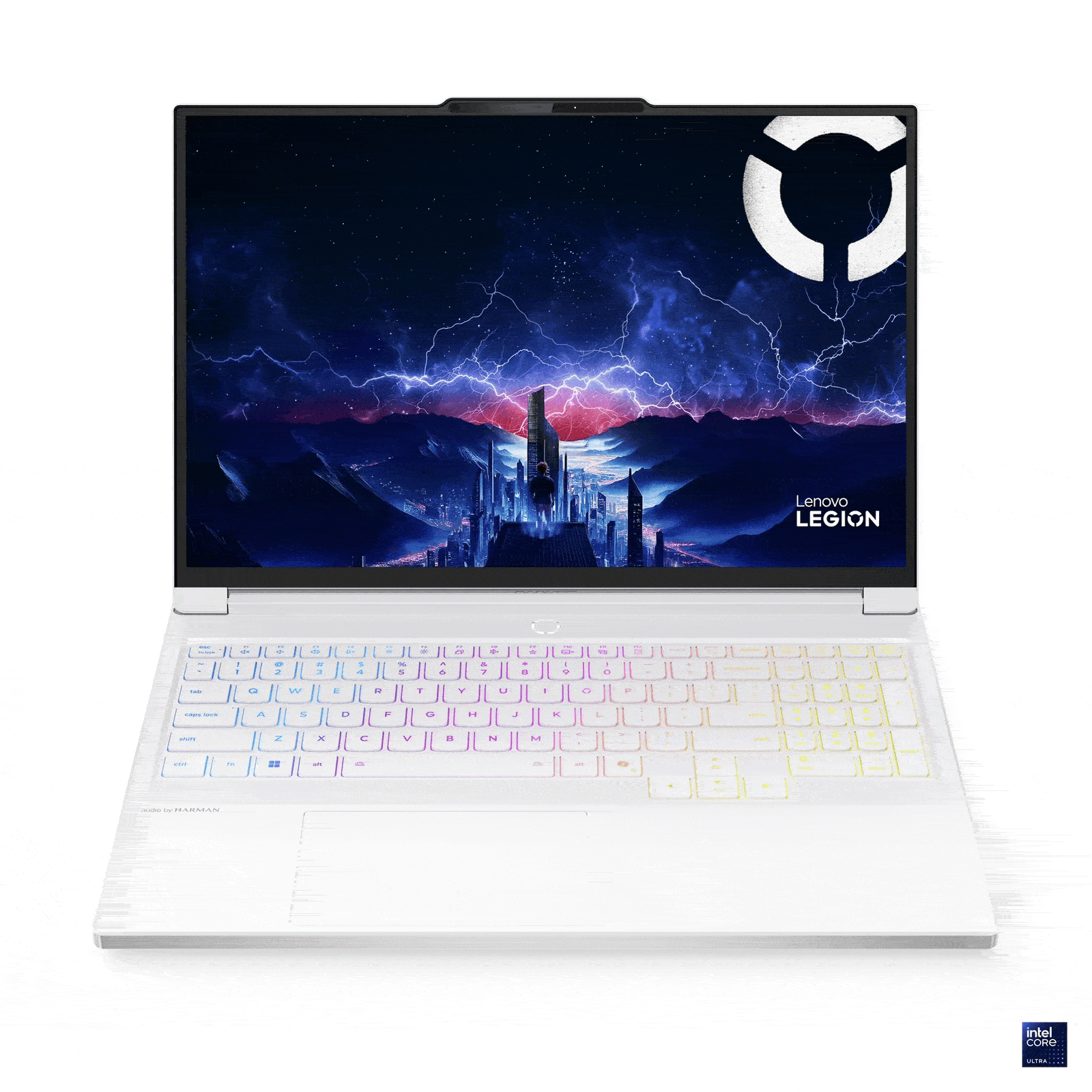

Lenovo Legion 7i 16IAX10 83KY001DPH | Intel Core Ultra 7 255HX | 16in WQXGA | 32GB DDR5 | 1TB SSD | NVIDI GF RTX5060, 8G | Win 11

Technical Specifications:

PERFORMANCE

Processor Intel® Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB

AI PC Category AI-Powered Gaming PC

NPU Integrated Intel® AI Boost, up to 13 TOPS

Graphics NVIDIA® GeForce RTX? 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS

Chipset Intel® HM870 Chipset

Memory 32GB SO-DIMM DDR5-5600 (2x 16GB)

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-5600 offering

Storage 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Support Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB each

Storage Slot Two M.2 2280 PCIe® 4.0 x4 slots

Card Reader SD Card Reader

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio, Smart Amplifier (AMP)

Camera 5.0MP + IR with E-shutter

Microphone 2x, Array

Battery 84Wh

Power Adapter 245W Slim Tip (3-pin)

Special Features AI Chip: LA3

- -

DESIGN

Display 16" WQXGA (2560x1600) OLED 500nits (Typical) / 1100nits (Peak) Glossy, 100% DCI-P3, 165Hz, DisplayHDR? True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free

Touchscreen None

Color Calibration Factory Color Calibration

Keyboard Per-key RGB Backlit, English

Touchpad Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Case Color Glacier White

Surface Treatment Anodize Electrophoresis Deposition

Case Material Aluminium (Top), Aluminium (Bottom)

Pen Pen Not Supported

Dimensions (WxDxH) 361.7 x 263.4 x 15.9-17.9 mm (14.24 x 10.37 x 0.63-0.70 inches)

Weight Less than 2.0 kg (4.52 lbs)

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Office Home 2024 + Lenovo® AI Now

CONNECTIVITY

Ethernet Wi-Fi® 7, 802.11be 2x2 + BT5.4

WLAN + Bluetooth Non-WWAN

WWAN No Onboard Ethernet

Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort? 2.1

1x USB-C® (Thunderbolt? 4 / USB4® 40Gbps), with USB PD 65-100W and DisplayPort? 2.1

1x HDMI® 2.1, up to 8K/60Hz

1x Headphone / microphone combo jack (3.5mm)

1x Card reader

1x Power connector

-

Docking Various docking solutions supported via Thunderbolt? or USB-C®. For more compatible docking solutions, please visit Docking for Legion 7 16IAX10

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 Enabled

Fingerprint Reader None

Other Security E-shutter

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Upgrade 3Y Legion Ultimate Support -IPPREM (ESS)

ACCESSORIES

Bundled Accessories None

CERTIFICATIONS

Green Certifications ErP Lot 3

RoHS compliant

Other Certifications TÜV Rheinland® Flicker Free

TÜV Rheinland® High Gaming Performance

TÜV Rheinland® Low Blue Light (Hardware Solution)
