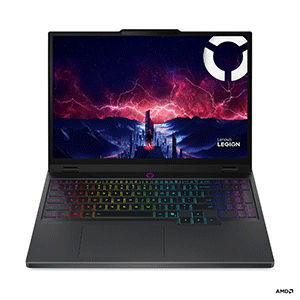

Lenovo Legion 5 15AKP10 83F1004NPH | 15.1in WQXGA OLED 165Hz | AMD R7 AI 350 | 16GB DDR5 | 1TB SSD | RTX 5070, 8GB | Win11

Technical Specifications:

AI PC Category AMD Ryzen? AI 7 350 (8C / 16T, 2.0 / 5.0GHz, 8MB L2 / 16MB L3)

NPU AI-Powered Gaming PC

Processor Integrated AMD Ryzen? AI, up to 50 TOPS

Graphics NVIDIA® GeForce RTX? 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS

Chipset AMD SoC Platform

Memory 1x 16GB SO-DIMM DDR5-5600

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-5600 offering

Storage 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB each

Optical None

Card Reader None

Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone 2x, Array

Camera FHD 1080p + IR with E-shutter

Battery 80Wh

Power Adapter 245W Slim Tip (3-pin)

Special Features AI Chip: LA3

DESIGN

Display 15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) Glossy, 100% DCI-P3, Dolby Vision®, DisplayHDR? True Black 600, 165Hz

Touchscreen None

Screen-to-Body Ratio OLED models: 90% AAR (active area ratio)

Color Calibration Factory Color Calibration

Pen Pen Not Supported

Keyboard 24-Zone RGB Backlit, English

Touchpad Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH) 344.9 x 255.35 x 22.50-23.99 mm (13.58 x 10.05 x 0.89-0.94 inches)

Weight Around 2 kg (4.4 lbs)

Case Color Eclipse Black

Case Material Aluminium (Top), PC-ABS (Bottom)

Surface Treatment Anodizing Sandblasting

SOFTWARE

Operating System Windows® 11 Home, English

Bundled Software Office Home 2024 + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN Non-WWAN

Ethernet 100/1000M (RJ-45)

Standard Ports 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort? 2.1

- 1x USB-C® (USB4® 40Gbps), with DP 2.1

- 1x HDMI® 2.1, up to 8K/60Hz

- 1x Headphone / microphone combo jack (3.5mm)

- 1x Ethernet (RJ-45)

- 1x Power connector

- -

Docking -

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 Enabled

Fingerprint Reader None

Other Security E-shutter

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Warranty Upgrade 3Y Legion Ultimate Support -IPMAIN (ESS)

ACCESSORIES

Bundled Accessories None

CERTIFICATIONS

Green Certifications ENERGY STAR® 9.0

- EPEAT? Gold Registered

- ErP Lot 3

RoHS compliant

Other Certifications TÜV Rheinland® Flicker Free

- TÜV Rheinland® Low Blue Light (Hardware Solution)
