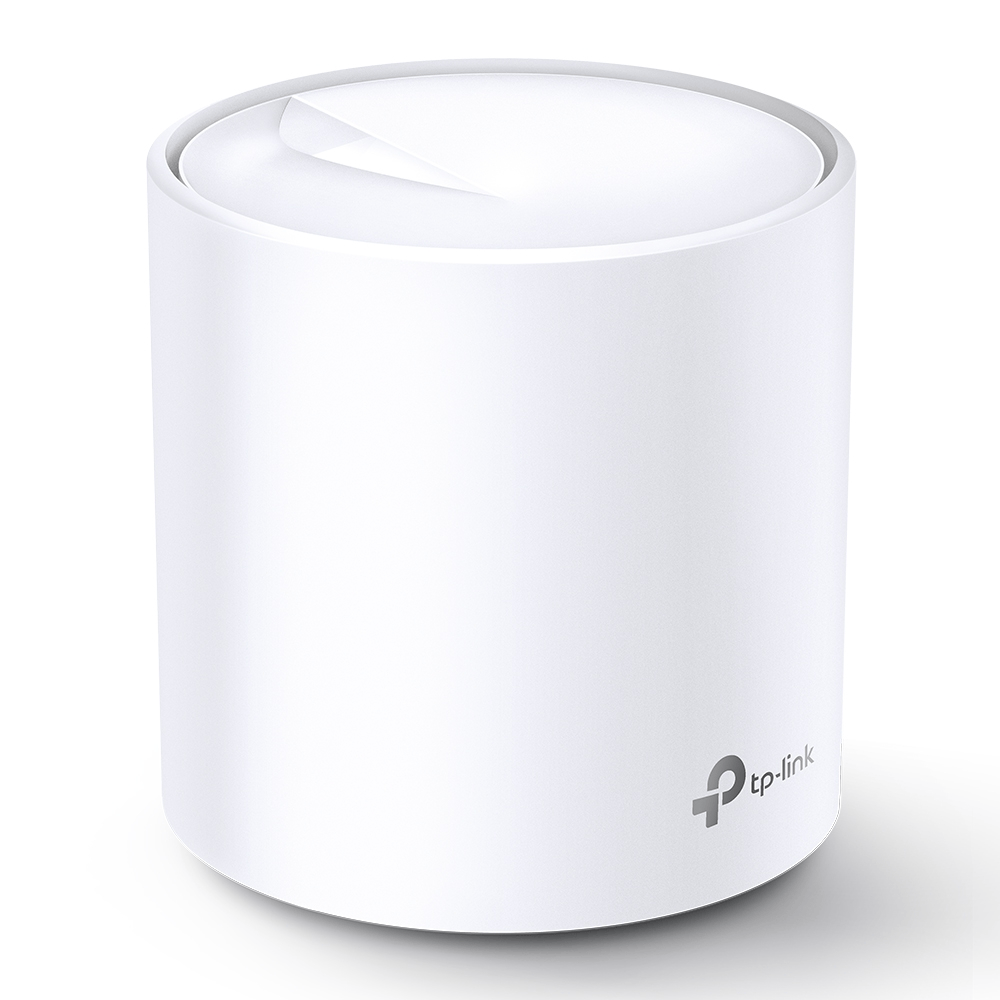

TP-Link DECO X20 AX1800 (1-pack) Whole Home Mesh Wi-Fi 6 System

Specifications

HARDWARE FEATURES

Processor
Qualcomm 1 GHz Quad-core CPU

Interface
2 LAN/WAN Gigabit Ethernet Ports

Button
1 Reset button on the underside

Dimensions
?4.33 in. × 4.49 in. (?110 mm × 114 mm)

Antenna
4 internal antennas per Deco unit

WIRELESS FEATURES

Wireless Standards
IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2.4 GHz

Frequency
5 GHz
2.4 GHz

Signal Rate
1201 Mbps (5 GHz)
574 Mbps (2.4 GHz)

Transmit Power
FCC: <30 dBm
CE: <20 dBm (2.4 GHz)
<23 dBm (5 GHz)

Wireless Security
WPA-PSK
WPA2-PSK
WPA3

Advanced Functions
Router/ Access Point Mode
Optional Ethernet Backhaul
TP-Link Mesh Technology:
MU-MIMO
OFDMA
1024-QAM
BSS Color
Auto Path Selection
Self-Healing
AP Steering
Band Steering
Beamforming

SOFTWARE FEATURES

Quality of Service
WMM

IPv6
Support

WAN Type
Dynamic IP/Static IP/PPPoE

Management
Local Management, Remote Management

DHCP
Server, Client

Port Forwarding
Support

Access Control
Blacklist

Firewall Security
SPI Firewall

Protocols
Supports IPv4 and IPv6

Advanced Features
Homecare:
Antivirus
Parental Controls
Quality of Service

Advanced Functions
Speedtest
Monthly Usage Reports
Auto FW Update
Expand Coverage by Adding more decos

Guest Network
2.4 GHz guest network * 1
5 GHz guest network * 1

Beamforming
Support

APP
Easy setup by Deco App

OTHERS

Certification
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

Package Contents
Deco X20 (2-pack):
1 Deco X20 units
1 RJ45 Ethernet Cable
1 Power Adapters
1 Quick Installation Guide

Smartphone/Tablet Requirements
iOS 9.0 or later
Android 4.4 or later

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
