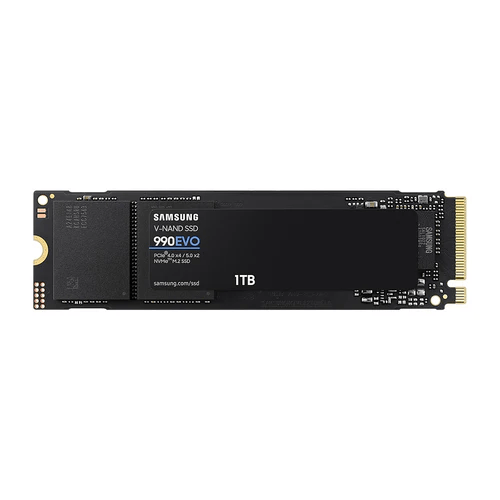

Samsung 1TB 990 EVO M.2 NVME PCIe4 SSD (MZ-V9E1T0BW)

Specifications

Rated Capacity
1,000GB (1 GB = 1 billion bytes by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications, or otherwise)

Form Factor
M.2 (2280)

Interface
PCIe® 4.0 x4 / 5.0 x2 NVMe? 2.0

Dimension (WxHxD)
80 x 22 x 2.38 mm

Weight
Max 9.0g Weight

Storage Memory
Samsung V-NAND TLC

Controller
Samsung in-house Controller

Cache Memory
HMB(Host Memory Buffer)

Special Feature

TRIM Support
Supported

S.M.A.R.T Support
Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support
Not supported

Device Sleep Mode Support
Yes

Performance

Sequential Read
Up to 5,000 MB/s * Performance may vary based on system hardware & configuration

Sequential Write
Up to 4,200 MB/s * Performance may vary based on system hardware & configuration

Random Read (4KB, QD32)
Up to 680,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD32)
Up to 800,000 IOPS * Performance may vary based on system hardware & configuration

Random Read (4KB, QD1)
Up to 20,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD1)
Up to 90,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level)
Average: Read 4.9 W / Write 4.5 W Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration

Power Consumption (Device Sleep)
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage
3.3 V ± 5 % Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Operating Temperature
0 - 70 ? Operating Temperature

Shock
1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit
Not Available

Software

Management SW
Magician Software for SSD management
