TECHNICAL SPECIFICATIONS

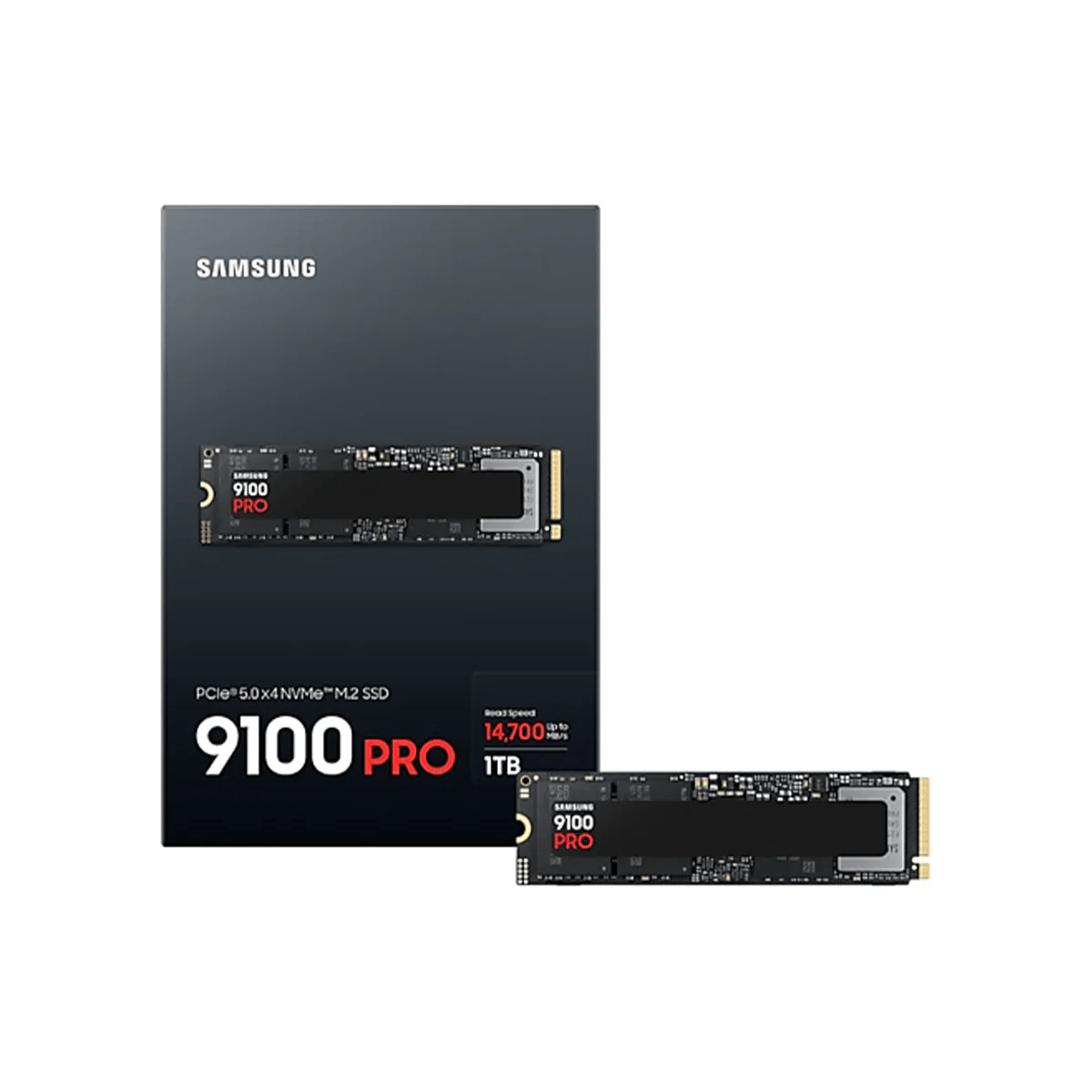

Samsung SSD 9100 PRO ? 1TB
Usage Application
Client PCs, PlayStation® 5
Interface
PCIe® 5.0 x4, NVMe? 2.0
Hardware Information
Capacity
1TB
Controller
Samsung in-house Controller
NAND Flash Memory
Samsung V-NAND TLC
Cache Memory
1GB LPDDR4X
Dimension
Max 80.15 x Max 22.15 x Max 2.38 (mm)
Form Factor
M.2 (2280)
Performance (Up to.)
Sequential Read
14,700 MB/s
Sequential Write
13,300 MB/s
QD 256
Thread 32
Ran. Read
1,850 KIOPS
Ran. Write
2,600 KIOPS
Power Consumption
Active (Avg.)
Read
7.6 W
Write
7.2 W
Idle (Typical)
PS3(APST on)
4.0 mW
PS4 (L1.2)
3.3 mW
Reliability
Operating Temperature
0°C to 70°C
(Measured by S.M.A.R.T. Temperature Proper airflow recommended)
Non-Operating Temperature
-40°C to 85°C
Humidity
5% to 95% non-condensing
Shock (Non-Operating)
1,500G(Gravity), duration: 0.5ms, 3 axis
Vibration (Non-Operating)
20~2,000Hz, 20G
MTBF
1.5 million hours
Supporting Features
TRIM (Required OS support), Garbage Collection, S.M.A.R.T
Data Security
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
