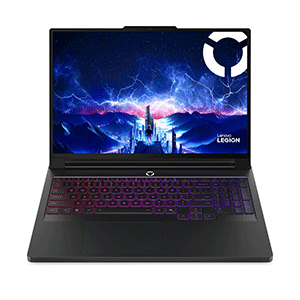

Lenovo Legion Pro 7i 16IAX10H 83F500H6PH | 16in WQXGA| Core Ultra 9 275HX | 32GB DDR5 | 1TB SSD | RTX 5070 Ti 12GB | Win11 Home

Tech Specifications:

Model
Legion Pro 7i 16IAX10H 83F500H6PH

PERFORMANCE

Processor
Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB Intel Smart Cache

AI PC Category
AI-Powered Gaming PC

NPU
Integrated Intel® AI Boost, up to 13 TOPS

Graphics
NVIDIA® GeForce RTX? 5070 Ti 12GB GDDR7, Boost Clock 2220MHz, TGP 140W, 992 AI TOPS

Chipset
Intel® HM870 Chipset

Memory
32GB CSODIMM DDR5-6400 (2x 16GB)

Memory Slots
Two DDR5 CSODIMM slots, dual-channel capable

Max Memory
Up to 32GB DDR5-6400 offering

Storage
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Support
Two M.2 slots ? One M.2 2280 PCIe® 5.0 x4 slot ? One M.2 2280 PCIe 4.0 x4 slot

Storage Slot
Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB ? M.2 2280 SSD up to 2TB

Card Reader
None

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers
4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Nahimic Audio, Smart Amplifier (AMP)

Camera
2x, Array

Microphone
5.0MP with E-shutter

Battery
80Wh

Power Adapter
400W Slim Tip (3-pin)

Special Features
AI Chip: LA3

• -

DESIGN

Display
16" WQXGA (2560x1600) OLED 500nits (typical) / 1100nits (peak) Glossy, 100% DCI-P3, 240Hz, DisplayHDR? True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free

Touchscreen
None

Screen-to-Body Ratio
92% AAR (active area ratio)

Color Calibration
Factory Color Calibration

Pen
Pen Not Supported

Keyboard
Per-key RGB Backlit, English

Touchpad
Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)
364.38 x 275.94 x 21.9-26.65 mm (14.35 x 10.86 x 0.86-1.05 inches)

Weight
Starting at 2.57 kg (5.67 lbs)

Case Color
Eclipse Black

Case Material
Aluminium (Top), Aluminium (Bottom)

Surface Treatment
Anodizing Sandblasting

SOFTWARE

Operating System
Windows® 11 Home Single Language, English

Bundled Software
Office Home 2024 + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN
WWAN Not Supported

Ethernet
2.5GbE (RJ-45)

Standard Ports
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

Standard Ports
1x Thunderbolt? 4 / USB4® 40Gbps (support data transfer and DisplayPort? 2.1)
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (2.5GbE RJ-45)
1x Slim tip Power connector

Docking
Various docking solutions supported via Thunderbolt? or USB-C®. For more compatible docking solutions, please visit Docking for Legion Pro 7 16IAX10H

SECURITY & PRIVACY

Security Chip
Firmware TPM 2.0 Enabled

Fingerprint Reader
None

Other Security
E-shutter

SERVICE

Base Warranty
1-year, Courier or Carry-in

Included Warranty Upgrade
3Y ADP - IPPREM (ESS), 3Y Legion Ultimate Support -IPPREM (ESS)

ACCESSORIES

Bundled Accessories
4 Switchable Keycaps

CERTIFICATIONS

Green Certifications
ErP Lot 3
RoHS compliant

Other Certifications
TÜV Rheinland® Flicker Free
TÜV Rheinland® High Gaming Performance
TÜV Rheinland® Low Blue Light (Hardware Solution)
