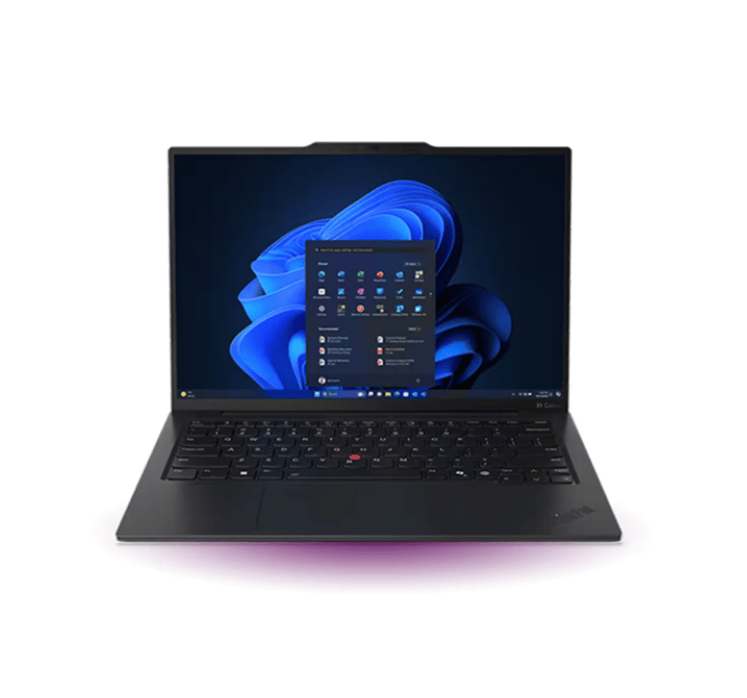

Lenovo Thinkpad X1 Carbon Gen 13 Aura Edition 21NS003FPH |14in WUXGA Touch | Core Ultra 5 | 16GB RAM | 512GB SSD | Intel Arc | Win11 Pro

Specifications

Model: Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition 21NS003FPH

PERFORMANCE
Processor Intel® Core Ultra 5 226V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB
AI PC Category Copilot+ PC
NPU Integrated Intel® AI Boost, up to 40 TOPS
Graphics Integrated Intel® Arc? Graphics 130V
Chipset Intel® SoC Platform
Memory 16GB Soldered LPDDR5x-8533, MoP Memory
Memory Slots Memory soldered to systemboard, no slots, dual-channel
Max Memory 16GB soldered memory, not upgradable
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot Models with V or H series processor: one M.2 2280 PCIe® 5.0 x4 slot
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Card Reader None
Audio Chip Models with V series processor: High Definition (HD) Audio, Realtek® ALC713 codec
Speakers Stereo speakers, 2W x2, Dolby Atmos®
Microphone 2x, 360°

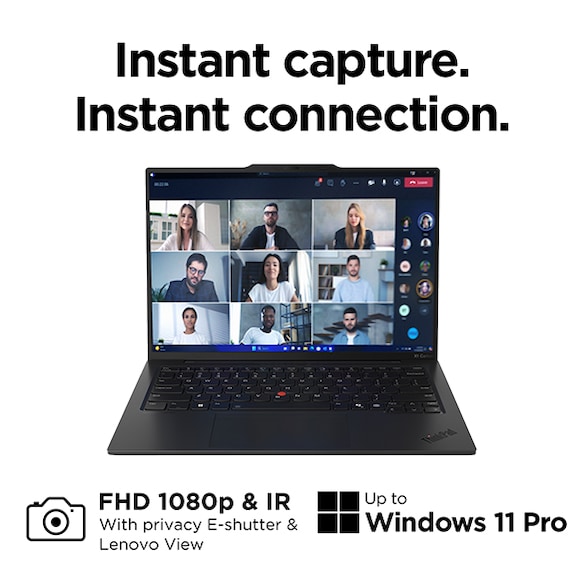

Camera FHD 1080p + IR Discrete with Privacy Shutter
Battery 57Wh
Power Adapter 65W USB-C® (3-pin)

DESIGN
Display 14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Low Power, Touch
Touchscreen On-cell, 10-point Multi-touch
Screen-to-Body Ratio 89.20%
Pen Pen Not Supported

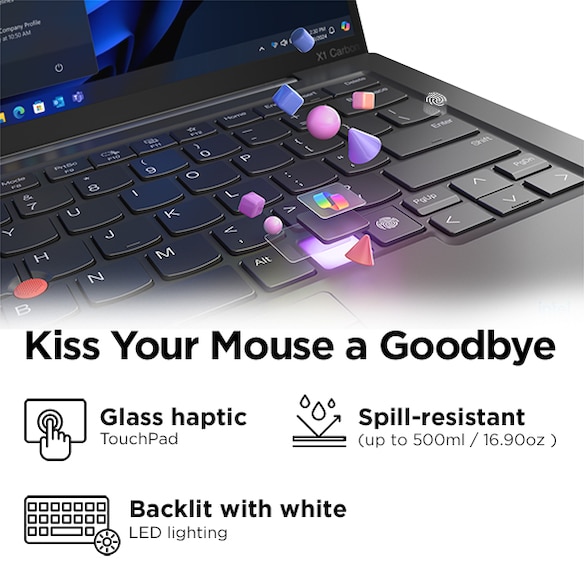

Keyboard Backlit, English
Touchpad Trackpad
Dimensions (WxDxH) 312.80 x 214.75 x 8.38/14.77 (front/rear), 17.95 (maximum) mm; 12.31 x 8.45 x 0.33/0.58 (front/rear), 0.71 (maximum) inches
Weight Starting at 986 g (2.17 lbs)
Case Color Black, Paint
Case Material Carbon Fiber (Top), Aluminium (Bottom)

SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Intel® Connectivity Performance Suite

CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 7 BE201, 802.11be 2x2 + BT5.4
WWAN Non-WWAN
SIM Card None
Ethernet No Onboard Ethernet
NFC None

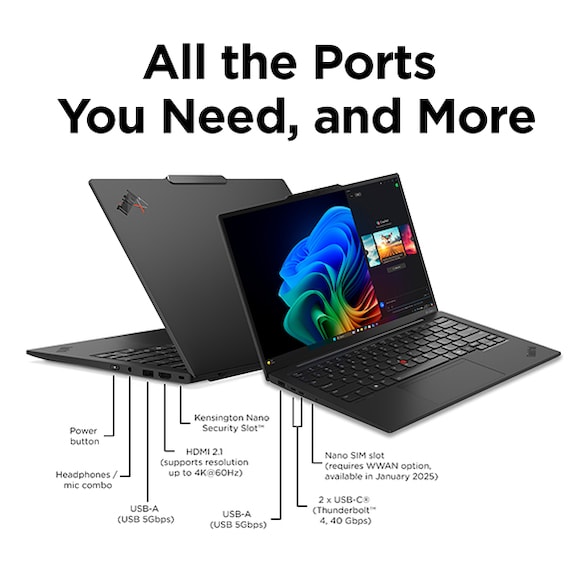

Standard Ports
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (Thunderbolt? 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort? 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)

Optional Ports (configured) None

Docking Various docking solutions supported via Thunderbolt? / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 13 Aura Edition

SECURITY & PRIVACY
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader None
Fingerprint Reader Touch Style, Match-on-Chip, in Keyboard Key
Other Security Camera privacy shutter
- ThinkShield
- IR camera for Windows® Hello (facial recognition)

MANAGEABILITY
System Management Non-vPro®

SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in

ACCESSORIES
Bundled Accessories Lenovo® USB-C® to Ethernet Adapter (1Gbps)

CERTIFICATIONS
Green Certifications
- ENERGY STAR® 9.0
- EPEAT? Gold Registered
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 10.0

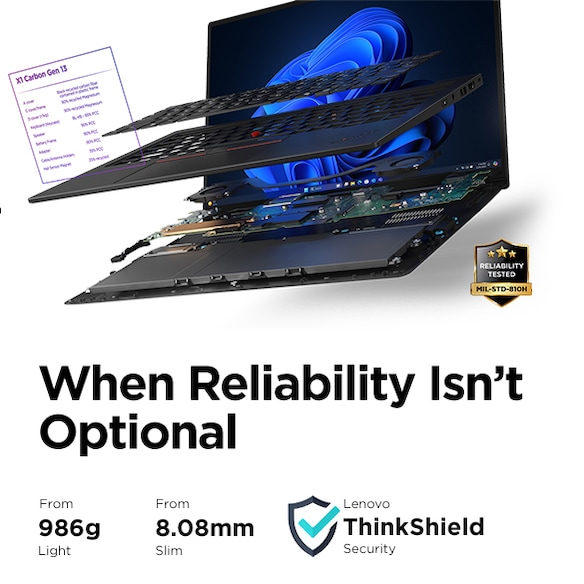

Mil-Spec Test MIL-STD-810H military test passed

Other Certifications
- Eyesafe® Certified 2.0
- Intel® Evo Platform
