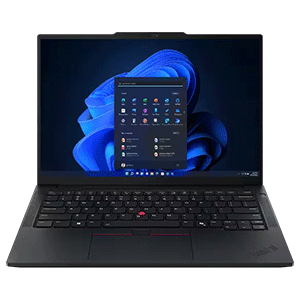

Lenovo Thinkpad E14 Gen 7 21SX004QPH | 14in WUXGA IPS | Intel Core Ultra 7 255H | 16GB DDR5 | 1TB SSD | Intel Arc 140T | Win11 Pro

Technical Specifications:

Processor Intel® Core Ultra 7 255H, 16C (6P + 8E + 2LPE) / 16T, Max Turbo up to 5.1GHz, 24MB

AI PC Category AI PC

NPU Integrated Intel® AI Boost, up to 13 TOPS

Graphics Integrated Intel® Arc? 140T GPU

Chipset Intel® SoC Platform

Memory 16GB SO-DIMM DDR5-5600  (2x 8GB)

Memory Slots Raptor Lake and Arrow Lake: two DDR5 SODIMM slots, dual-channel capable

Max Memory Raptor Lake with H Series processors and Arrow Lake: up to 64GB DDR5-5600

Storage 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0

Storage Support Raptor Lake and Arrow Lake: two M.2 slots ? One M.2 2242 PCIe® 4.0 x4 slot ? One M.2 2280 PCIe 4.0 x4 slot

Max Storage Support Models with U or H series processor: up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB ? M.2 2280 SSD up to 1TB

Card Reader No card reader

Optical -

Audio Chip High Definition (HD) Audio, Senary SN6147 codec

Speakers Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN

Microphone 2x, Array

Camera 5.0MP with Privacy Shutter

Battery 48Wh

Power Adapter 65W USB-C® (3-pin)

DESIGN

Display 14" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz

Touchscreen None

Screen-to-Body Ratio 90%

Pen Pen Not Supported

Keyboard Backlit, English

Case Color

Dimensions (WxDxH) 313 x 220.3 x 10.1/15.25 (front/rear), 20.5 (maximum) mm; 12.32 x 8.67 x 0.40/0.60 (front/rear), 0.81 (maximum) inches

Weight Starting at 1.34 kg (2.95 lbs)

Black

Surface Treatment -

Case Material Aluminium (Top), PC-ABS (Bottom)

SOFTWARE

Operating System Windows® 11 Pro, English (US) / English (UK)

Bundled Software None

CONNECTIVITY

Ethernet Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3

WLAN + Bluetooth Non-WWAN

WWAN None

SIM Card 100/1000M (RJ-45)

NFC None

Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)

- 1x USB-C® (Thunderbolt? 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort? 2.1

- 1x HDMI® 2.1, up to 4K/60Hz

- 1x Headphone / microphone combo jack (3.5mm)

- 1x Ethernet (RJ-45)

- -

- -

- -

Optional Ports (configured) 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.1 and DisplayPort? 1.4

Docking Various docking solutions supported via Thunderbolt? or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad E14 Gen 7 (Intel)

SECURITY & PRIVACY

Smart Card Reader Discrete TPM 2.0 Enabled

Security Chip Kensington® Nano Security Slot, 2.5 x 6 mm

Fingerprint Reader None

Physical Locks Touch Style, Match-on-Chip, Integrated in Power Button

Other Security Camera privacy shutter

ThinkShield

MANAGEABILITY

System Management Non-vPro®

SERVICE

Warranty 3Y Premier Support Upgrade from 1Y Courier/Carry-in

ACCESSORIES

Bundled Accessories None

CERTIFICATIONS

Green Certifications ENERGY STAR® 9.0

- EPEAT? Gold Registered

- ErP Lot 6/26

- RoHS compliant

- TCO Certified, generation 10

-

Mil-Spec Test MIL-STD-810H military test passed

-

Other Certifications TÜV Rheinland® Low Blue Light (Software Solution)
