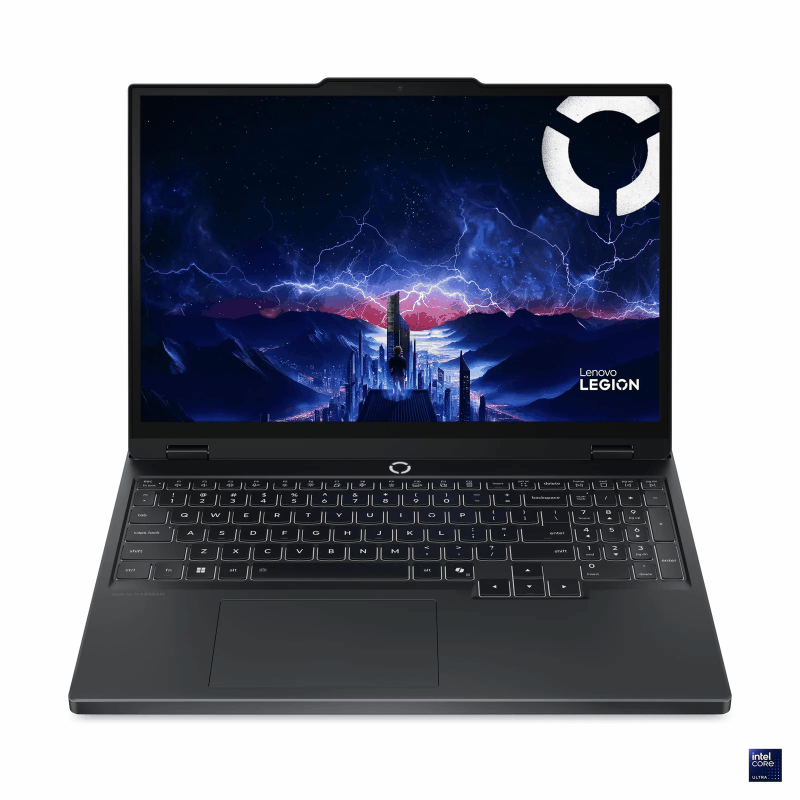

Lenovo Legion Pro 5 16IAX10H 83LU004FPH | 16in WQXGA OLED 240Hz | Intel Core Ultra 9 275HX | 32GB DDR5 | 1TB SSD | GF RTX 5070 | Win11

Specifications

Processor
Intel® Core Ultra 9 275HX, 24 Cores (8P + 16E), 24 Threads, up to 5.4GHz Turbo, 36MB Intel® Smart Cache

AI PC Category
AI PC, AI-Powered Gaming PC

NPU
Integrated Intel® AI Boost, up to 13 TOPS

Graphics
NVIDIA® GeForce RTX 5070 Ti Laptop GPU 12GB GDDR7, Boost Clock 2220MHz, 140W TGP, 992 AI TOPS

Chipset
Intel® HM870 Chipset

Memory
32GB DDR5-5600 (2x16GB SODIMM)

Memory Slots
Two DDR5 SODIMM slots, dual-channel capable

Maximum Memory
Up to 32GB DDR5-5600

Storage
1TB M.2 2242 PCIe® 4.0 x4 NVMe® SSD

Storage Slots
Two M.2 2280 PCIe® 4.0 x4 slots

Maximum Storage Support
Up to two M.2 SSDs, M.2 2242 SSD up to 1TB, M.2 2280 SSD up to 1TB

Display
16-inch WQXGA (2560 × 1600) OLED, 500 nits typical / 1100 nits peak, Glossy, 100% DCI-P3, 240Hz, Dolby Vision®, G-SYNC®, DisplayHDR True Black 1000

Audio
Realtek® ALC3306 HD Audio, Stereo 2W x2 HARMAN speakers with Nahimic Audio

Microphone
Dual Array Microphones

Camera
5MP Webcam with E-shutter

Keyboard
24-Zone RGB Backlit Keyboard, English

Touchpad
Buttonless Mylar® Precision TouchPad

Battery
80Wh

Power Adapter
300W Slim Tip (3-pin)

Wireless Connectivity
Wi-Fi® 7 (802.11be 2x2), Bluetooth® 5.4

Ethernet
Gigabit Ethernet (RJ-45)

Ports
2 × USB-A 5Gbps (USB 3.2 Gen 1)
1 × USB-A 10Gbps (USB 3.2 Gen 2, Always On)
1 × USB-C® 10Gbps (USB 3.2 Gen 2) with Power Delivery 65?100W and DisplayPort 2.1
1 × Thunderbolt 4 / USB4® 40Gbps with DisplayPort 2.1
1 × HDMI® 2.1 (up to 8K@60Hz)
1 × Headphone / Microphone Combo Jack (3.5mm)
1 × RJ-45 Ethernet
1 × Slim Tip Power Connector

Operating System
Windows® 11 Home Single Language

Bundled Software
Office Home 2024
Lenovo® AI Now

Security
Firmware TPM 2.0
E-shutter

Dimensions (W × D × H)
364.38 × 268.06 × 21.69?25.95 mm

Weight
Approx. 2.42 kg

Color
Eclipse Black

Case Material
Aluminium Top, PC-ABS Bottom

Warranty
1-Year Courier or Carry-in Warranty
3-Year Legion Ultimate Support (IPMAIN ESS)

Certifications
ErP Lot 6/26
RoHS Compliant
Pantone® SkinTone Validated
Pantone® Validated
TÜV Rheinland® Flicker Free
TÜV Rheinland® High Gaming Performance
