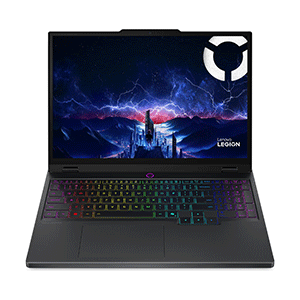

Lenovo Legion 5i 15IRX10 83LY00EWPH | 15.3in WQXGA 165Hz | Intel Core i7-13650HX | 16GB DDR5 | 512GB SSD | GF RTX5050, 8GB | Win11

Technical Specifications:

PERFORMANCE

AI PC Category AI-Powered Gaming PC

NPU None

Processor Intel® Core i7-13650HX, 14C (6P + 8E) / 20T, P-core 2.6 / 4.9GHz, E-core 1.9 / 3.6GHz, 24MB

Graphics NVIDIA® GeForce RTX? 5050 8GB GDDR7, Boost Clock 2662MHz, TGP 115W, 440 AI TOPS

Chipset Intel® HM770 Chipset

Memory 1x 16GB SO-DIMM DDR5-4800

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-4800 offering

Storage 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Max Storage Support Two M.2 2280 PCIe® 4.0 x4 slots

Storage Slot Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB each

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone 2x, Array

Camera HD 720p with E-shutter

Battery 80Wh

Power Adapter 245W Slim Tip (3-pin)

Special Features AI Chip: LA1

DESIGN

Display 15.3" WUXGA (1920x1200) IPS 300nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®, G-SYNC®

Touchscreen None

Screen-to-Body Ratio IPS models: 90.9% AAR (active area ratio)

Color Calibration Factory Color Calibration

Pen Pen Not Supported

Keyboard White Backlit, English

Touchpad Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH) 344.9 x 255.35 x 22.50-23.99 mm (13.58 x 10.05 x 0.89-0.94 inches)

Weight Starting at 2.1 kg (4.63 lbs)

Case Color Eclipse Black

Case Material PC-ABS + 15% Talc (Top), PC-ABS + 15% Talc (Bottom)

Surface Treatment Painting

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Office Home 2024 + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN Non-WWAN

Ethernet 100/1000M (RJ-45)

Standard Ports 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort? 2.1

- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort? 1.4

- 1x HDMI® 2.1, up to 8K/60Hz

- 1x Headphone / microphone combo jack (3.5mm)

- 1x Ethernet (RJ-45)

- 1x Power connector

- -

Docking Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15IRX10

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 Enabled

Fingerprint Reader None

Other Security E-shutter

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Warranty Upgrade 3Y Legion Ultimate Support -IPMAIN (ESS)

ACCESSORIES

Bundled Accessories None

CERTIFICATIONS

Green Certifications ErP Lot 6/26

- RoHS compliant
