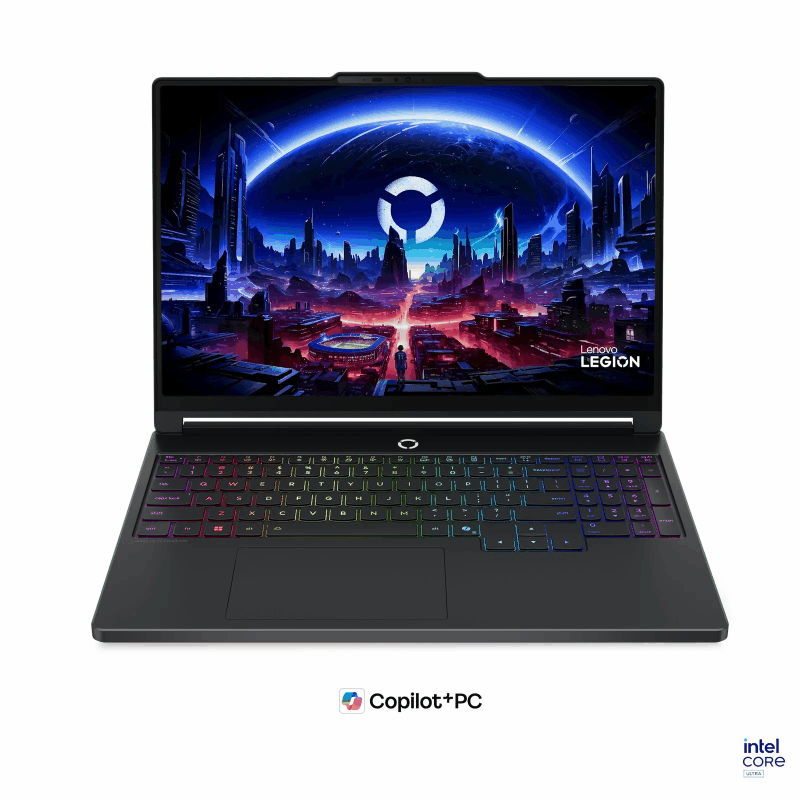

Lenovo Legion 5 15IPH11 83RW0017PH | 15.3in OLED 165Hz | Core Ultra 7 | 32GB RAM | 1TB SSD | RTX 5060 8GB | Win11

Specifications

Performance

Processor: Intel® Core Ultra 7 356H, 16C (4P + 8E + 4LPE) / 16T, Max Turbo up to 4.7GHz, 18MB Intel® Smart Cache
AI PC Category: AI-Powered Gaming PC
NPU: Up to 50 TOPS
Graphics: NVIDIA® GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
Chipset: Intel® SoC Platform
Memory: 32GB DDR5-5600 (2x16GB SODIMM)
Memory Slots: Two DDR5 SODIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-5600 offering
Storage: 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot: Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support: Up to two drives, 2x M.2 SSD, M.2 2242 SSD up to 2TB
Optical: None
Card Reader: No Card Reader
Audio Chip: High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers: Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone: Dual-array microphone
Camera: 5.0MP + IR with E-shutter
Battery: 80Wh
Power Adapter: 245W Slim Tip (3-pin)
Special Features: AI Chip: LA1 + LA3

Display & Design

Display: 15.3" WQXGA (2560x1600) OLED, 1000nits peak / 500nits typical, Glossy, 100% DCI-P3, 165Hz, G-SYNC®, DisplayHDR True Black 1000
Touchscreen: None
Screen-to-Body Ratio: 92% AAR (active area ratio)
Color Calibration: X-Rite® Factory Color Calibration
Pen: Pen Not Supported
Keyboard: 24-Zone RGB Backlit, English
Touchpad: Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH): 344 x 244.5 x 18.95-19.95 mm (13.54 x 9.63 x 0.75-0.79 inches)
Weight: Starting at 1.87 kg (4.12 lbs)
Case Color: Eclipse Black
Case Material: Aluminium (Top), PC-ABS (Bottom)
Surface Treatment: Aluminium Stamping (Anodized with Sandblasting), Painting (Bottom)

Software

Operating System: Windows® 11 Home, English
Bundled Software: Office Home 2024 + Lenovo® AI Now

Connectivity

WLAN + Bluetooth: Wi-Fi® 7, 802.11be 2x2 + BT5.4
WWAN: WWAN Not Supported
Ethernet: 100/1000M (RJ-45)

Ports:
2x USB-A (USB 5Gbps)
1x USB-A (USB 10Gbps), Always On
1x USB-A (USB 10Gbps)
1x USB-C® (USB 10Gbps), with USB PD 65-100W and DisplayPort 2.1
1x Thunderbolt 4, with USB PD 65-100W and DisplayPort 2.1
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Slim Tip Power Connector

Docking: Various docking solutions supported via Thunderbolt / USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15IPH11

Security & Service

Security Chip: Firmware TPM 2.0 Enabled
Fingerprint Reader: No Fingerprint Reader
Other Security: E-shutter, IR camera for Windows® Hello (facial recognition)
Base Warranty: 1-year, Courier or Carry-in
Included Warranty Upgrade: 3Y Legion Ultimate Support -IPMAIN (ESS)

Accessories

Bundled Accessories: None

Certifications

Green Certifications: ENERGY STAR® 9.0, EPEAT Gold Registered, ErP Lot 6/26, RoHS compliant

Other Certifications: Pantone® SkinTone Validated, Pantone® Validated, TÜV Rheinland® Flicker Free, TÜV Rheinland® High Gaming Performance, TÜV Rheinland® Low Blue Light (Hardware Solution)
