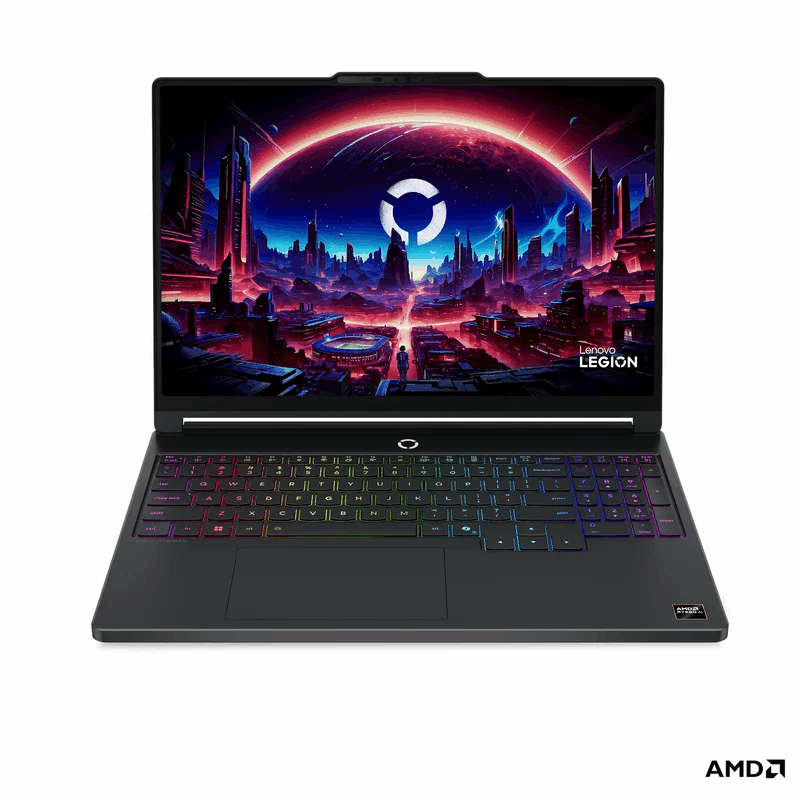

Lenovo Legion 5 15AGP11 83Q6001CPH | 15.3in WQXGA OLED 165Hz | Ryzen AI 7 450 | 16GB DDR5 | 1TB SSD | GeForce RTX 5060 | Win11

SPECIFICATIONS

PERFORMANCE

Processor
AMD Ryzen AI 7 450 (8C / 16T, 2.0 / 5.1GHz, 8MB L2 / 16MB L3)

AI PC Category
AI-Powered Gaming PC

NPU
Integrated AMD Ryzen AI, up to 50 TOPS

Graphics
NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS

Chipset
AMD SoC Platform

Memory
1x 16GB SODIMM DDR5-5600

Memory Slots
Two DDR5 SODIMM slots, dual-channel capable

Max Memory
Up to 32GB DDR5-5600 offering

Storage
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot
Two M.2 slots ? One M.2 2280 PCIe® 4.0 x4 slot ? One M.2 2280 PCIe® 4.0 x2 slot

Max Storage Support
Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 2TB each

Optical
None

Card Reader
No Card Reader

Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone
2x, Array

Camera
5.0MP + IR with E-shutter

Battery
80Wh

Power Adapter
245W Slim Tip (3-pin)

Special Features
AI Chip: LA1 + LA3

DESIGN

Display
15.3" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) Glossy, 100% DCI-P3, 165Hz, G-SYNC®, DisplayHDR True Black 1000

Touchscreen
None

Screen-to-Body Ratio
92% AAR (active area ratio)

Color Calibration
X-Rite® Factory Color Calibration

Pen
Pen Not Supported

Keyboard
1-Zone RGB Backlit, English

Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)
344 x 244.5 x 18.95-19.95 mm (13.54 x 9.63 x 0.75-0.79 inches)

Weight
Starting at 1.87 kg (4.12 lbs)

Case Color
Eclipse Black

Case Material
Aluminium (Top), PC-ABS (Bottom)

Surface Treatment
Anodizing Sandblasting (Top), Painting (Bottom)

SOFTWARE

Operating System
Windows® 11 Home, English

Bundled Software
Office Home 2024 + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN
WWAN Not Supported

Ethernet
100/1000M (RJ-45)

Standard Ports
2x USB-A (USB 5Gbps)
1x USB-A (USB 5Gbps), Always On
2x USB-C® (USB4® 40Gbps), with USB PD 65-100W and DisplayPort 1.4
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Slim tip Power connector

Docking
Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15AGP11

SECURITY & PRIVACY

Security Chip
Firmware TPM 2.0 Enabled

Fingerprint Reader
No Fingerprint Reader

Other Security
E-shutter
IR camera for Windows® Hello (facial recognition)

SERVICE

Base Warranty
1-year, Courier or Carry-in

Included Warranty Upgrade
3Y Legion Ultimate Support -IPMAIN (ESS)

ACCESSORIES

Bundled Accessories
None

CERTIFICATIONS

Green Certifications
ENERGY STAR® 9.0
EPEAT Gold Registered
ErP Lot 6/26
RoHS compliant

Other Certifications
Pantone® SkinTone Validated
Pantone® Validated
TÜV Rheinland® Flicker Free
TÜV Rheinland® High Gaming Performance
TÜV Rheinland® Low Blue Light (Hardware Solution)
