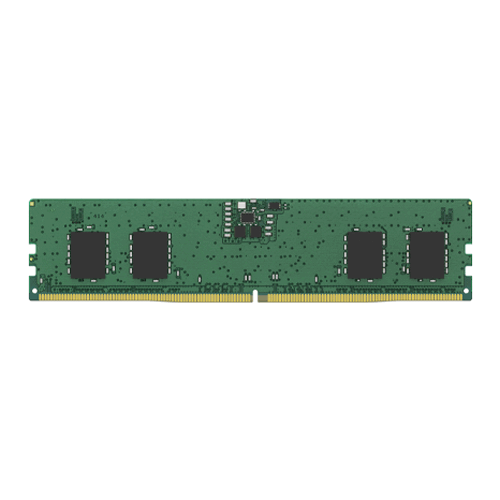

Kingston 32GB DDR5 5600 DIMM MEMORY (KVR56U46BS8-32)

Price: 17,999

Product Description:
The ValueRAM KVR56U46BS8-32 is a 32GB (4G x 64-bit) DDR5-5600 CL46 SDRAM memory module featuring a 1Rx8 configuration and built from eight 4G x 8-bit FBGA components. Its SPD is programmed to JEDEC-standard DDR5-5600 timings of 46-45-45 at 1.1V. The module uses a 288-pin DIMM design with gold-plated contact fingers for reliable and consistent connectivity.

add to cart

shop.villman.com

Technical Features

Power Supply:
VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.23 (31.25mm)
RoHS Compliant and Halogen-Free

Technical Specifications

CL(IDD) 46 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh 295ns(min.)

Command Time (tRFCmin) 32ns(min.)

Row Active Time (tRASmin) 32ns(min.)

UL Rating 94 V - 0

Operating Temperature 0 C to +85o

Storage Temperature -55o C to +100o C
