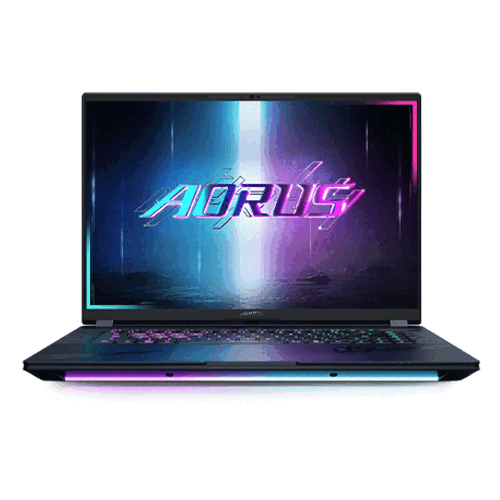

Gigabyte Aorus Master 16 BXH C4PHE64SH | 16in OLED | Core Ultra 9 275HX | 32GB RAM | 1TB SSD | NVIDIA GF RTX 5070 Ti | Win11 Pro

Technical Specifications

Operating System: Windows 11 Pro (GIGABYTE recommends Windows 11 Pro for business.) Windows 11 Home UEFI Shell OS

Processor: Intel® Core Ultra 9 Processor 275HX (36MB cache, up to 5.4 GHz, 24 cores, 24 threads)

Video Graphics
NVIDIA® GeForce RTX 5070 Ti Laptop GPU
12GB GDDR7
140W Maximum Graphics Power with Dynamic Boost
AI Boost :1962 MHz (1762 MHz Boost Clock + 200 MHz OC)

Display
16inch 16:10
OLED WQXGA (2560×1600) 240Hz, 1ms, DCIP-3 100%, 500nits (peak), 1,000,000:1

NVIDIA® G-SYNC®
NVIDIA® Advanced Optimus
VESA DisplayHDR True Black 500
VESA ClearMR 10000
Pantone® Validated
TÜV Rheinland Low Blue LightDolby Vision®

Memory
32GB RAM
Up to 64GB DDR5 5600MHz

Storage
1TB SSD
1x PCIe Gen5 M.2 slot
1x PCIe Gen4x4 M.2 slots
Up to 4TB PCIe NVMe M.2 SSD

Keyboard Type: 3-zone RGB Backlit Keyboard, Up to 1.7mm Key-travel (Support N-Key)

Left Side:

I/O Port
1 x DC in
1 x RJ-45
1 x HDMI 2.1
1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt 5 (support USB4, DisplayPort 2.1 and Power Delivery 3.0)

Right Side:
1 x Type-A support USB3.2 Gen2
1 x Type-C with Thunderbolt 4 (support USB4, DisplayPort 1.4 and Power Delivery 3.0)
1 x MicroSD (UHS II)
1 x Audio Jack support mic / headphone combo

Audio
4x 2W speakers
Microphone
Dolby Atmos®
Smart Amp Technology

Communications
WIFI 7 (802.11be 2x2)
LAN: 1G
Bluetooth v5.4

Webcam
FHD (1080p) IR Webcam
Build-in array Microphone
Support Windows Hello Face Authentication
Security: Firmware-based TPM, supports Intel® Platform Trust Technology (Intel® PTT)
Battery: Li Polymer 99Wh
Adapter: 330W AC Adapter

357 x 254 x 23~29.9 mm

Weight 2.5 kg

Color: Dark Tide
