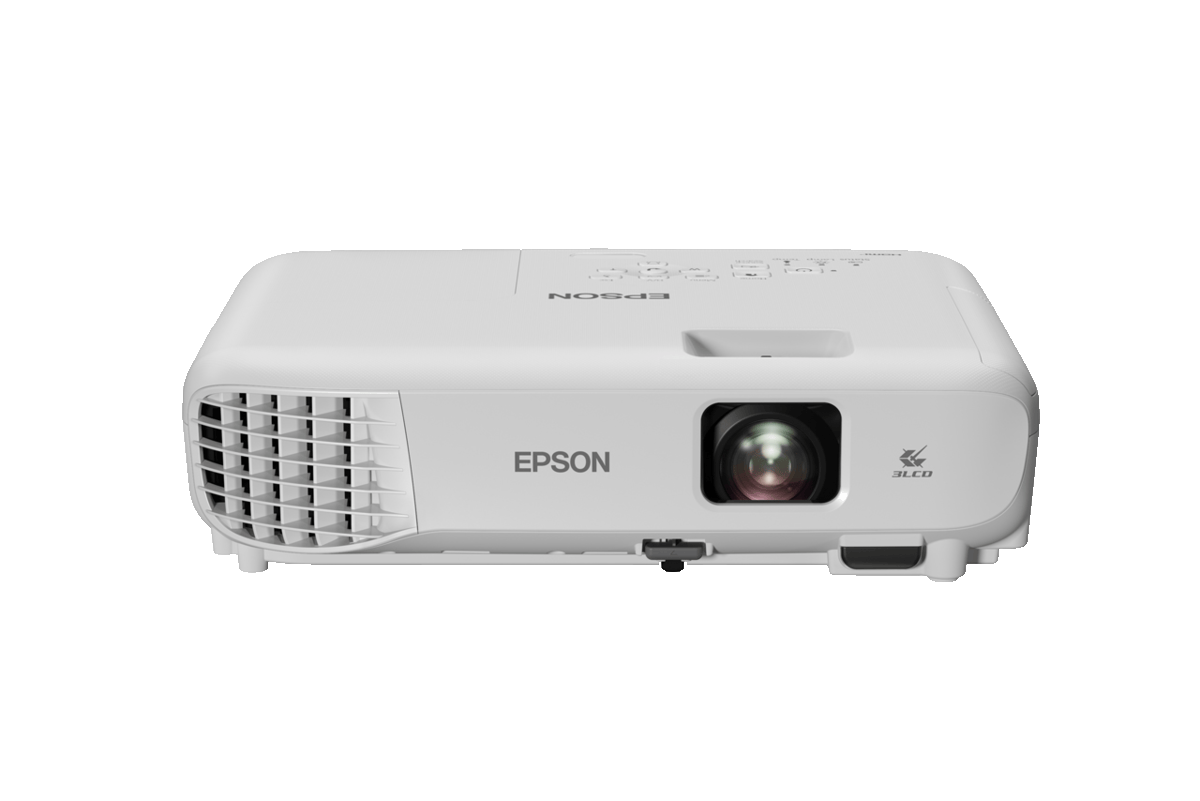

Epson EB-W53 WXGA 3LCD Projector

Specifications

Projection Technology:
RGB liquid crystal shutter projection system (3LCD)

Brightness1:
White Light Output (Normal/Eco):
4,000 lm / 2,600 lm
Colour Light Output:
4,000 lm
Light Output (Center)*2:
4,100 lm

Connectivity:
Network:
Wireless LAN : N/A
Digital Input:
HDMI Type A : 2 (HDCP 1.4)
USB Input:
USB Type B : 1 (for USB Display, firmware update, Copy OSD Settings)

Contrast Ratio:
Contrast Ratio:
16,000:1

Screen Size (Projected Distance):
Zoom : Wide:
33? ? 375? [0.89 ? 10.34 m]
Zoom : Tele:
16? ? 188? [0.89 - 10.34 m]

Geometric Correction:
Vertical/Horizontal Keystone:
±30° / ±30°

Operating Temperature:
Operating Temperature:
Low Altitude (0 - 2,286m/7,500ft): 5 - 40 °C <41 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 5 - 35 °C <41 - 95°F>
20% - 80% Humidity, No Condensation

Operating Altitude:
Operating Altitude:
Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:
Start-Up Period:
Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds

Cool Down Period:
Cool Down Period:
Instant Off

Internal Speaker(s):
Sound Output:
Monaural 2W x 1

Weight:
Weight:
Approx. 2.5kg

Air Filter:
Maintenance Cycle*3:
6,000 hours (Normal) / 12,000 hours (Eco)

Fan Noise:
Fan Noise (Normal / Eco):
37dB / 28dB

Power Consumption (220-240V):
Lamp (Normal / Extended):
Normal : 332 W
Extended : 231 W
Standby (Normal / Eco) :
N/A / 0.3 W

Direct Power On / Off:
Direct Power On / Off:
Yes

Dimension Excluding Feet:
Dimension Excluding Feet (W x D x H):
302 x 234 x 77 mm

Power Supply:
Power Supply Voltage:
100 - 240 V AC ±10%, 50/60 Hz

LCD:
Size : 0.59? (C2 Fine)
Driving Method : Poly-silicon TFT active matrix
Pixel Number : 1,024,000 dots (1280 x 800) x 3
Native Resolution : WXGA
Aspect Ratio 16:10
Pixel Arrangement : Cross stripe

Light Source:
Lamp Type : 210 W UHE
Life (Normal / Eco) : 6000 hours / 12,000 hours

Projection Lens:
Type : No Optical Zoom / Focus (Manual)
F-Number : 1.44
Focal Length : 16.7 mm
Zoom Ratio : 1.0 - 2.0 (Digital Zoom)
Throw Ratio : 1.27 ? 2.54
