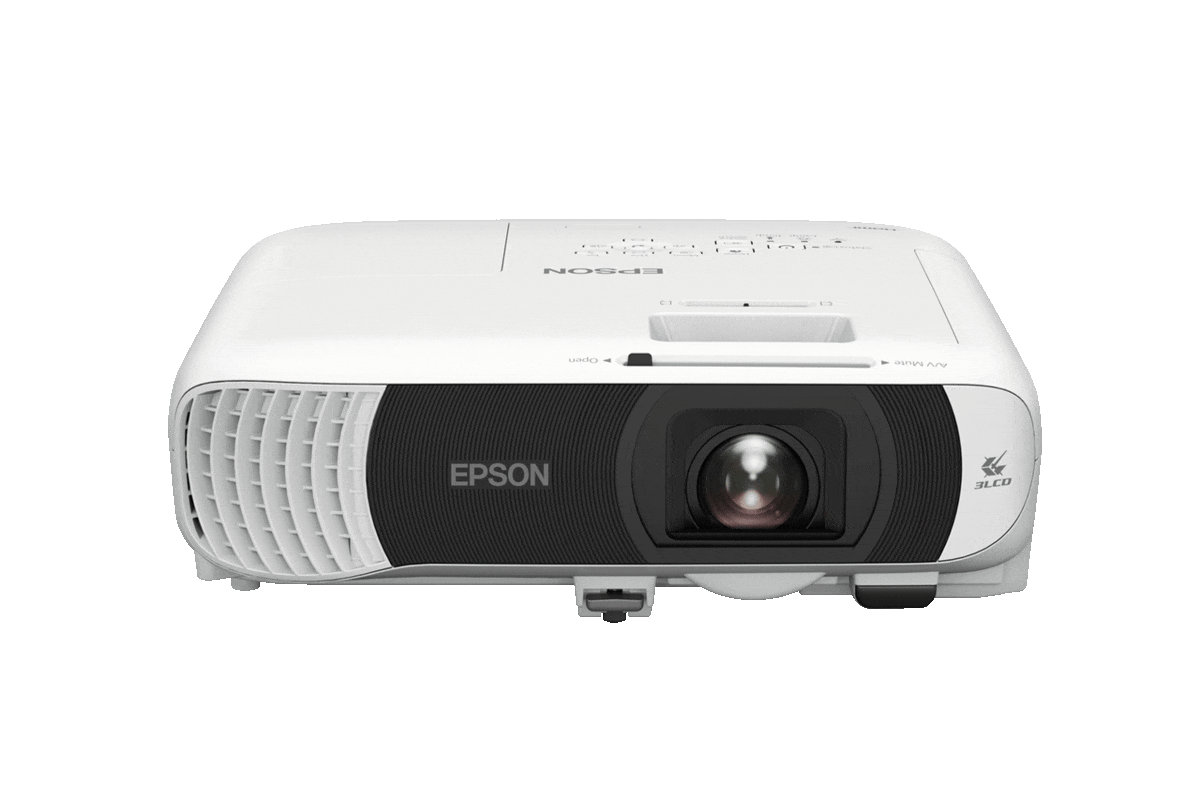

Epson EB-FH54 Full HD Wireless 3LCD Projector

Specifications:

Projection Technology:
Projection Technology:
RGB liquid crystal shutter projection system (3LCD)

Brightness¹:
White Light Output (Normal/Eco):
4,100 lm / 2,300 lm
Colour Light Output:
4,100 lm
Light Output (Center)*²:
4,400 lm

Connectivity:
Network:
Wireless LAN : Built-in
Digital Input:
HDMI Type A : 2 (HDCP 1.4)
Audio Output:
Stereo Mini : 1
USB Input:
USB Type A : 1 (480Mbps for PC Free, Firmware update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B : 1 (For Firmware Update, Copy OSD Settings)

Contrast Ratio:
Contrast Ratio:
16,000:1

Screen Size (Projected Distance):
Zoom : Wide:
31? ? 304? [0.88 ? 8.88 m]
Zoom : Tele:
31? ? 304? [1.43 - 14.29 m]

Geometric Correction:
Vertical/Horizontal Keystone:
±30° / ±30°

Operating Temperature:
Operating Temperature:
Low Altitude (0 - 2,286m/7,500ft): 5 - 40 °C <41 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 5 - 35 °C <41 - 95°F>
20% - 80% Humidity, No Condensation

Operating Altitude:
Operating Altitude:
Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:
Start-Up Period:
Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds

Cool Down Period:
Cool Down Period:
Instant Off

Internal Speaker(s):
Sound Output:
Monaural 16W x 1

Weight:
Weight:
Approx. 3.1kg

Air Filter:
Maintenance Cycle*³:
10,000 hours (Normal) / 20,000 hours (Eco)

Fan Noise:
Fan Noise (Normal / Eco):
37dB / 28dB

Power Consumption (220-240V):
Lamp (Normal / Extended):
Normal : 332 W
Extended : 231 W
Standby (Normal / Eco):
N/A / 0.3 W

Direct Power On / Off:
Direct Power On / Off:
Yes

Dimension Excluding Feet:
Dimension Excluding Feet (W x D x H):
309 x 282 x 90 mm

Miracast:
Certification:
Wi-Fi CERTIFIED Miracast R2Wi-Fi CERTIFIED Miracast R2
Maximum Number Of Connection:
1
Supported Codex:
H.264 (AVC)

Power Supply:
Power Supply Voltage:
100 - 240 V AC ±10%, 50/60 Hz

Wireless Specification (Built-in Wireless LAN):
Wi-Fi Generation Name:
Wi-Fi 6
Supported Physical Standard Mode:
IEEE 802.11a/b/g/n/ac/ax
Supported Interface:
Infrastructure, Simple AP (Wi-Fi Direct)
Supported Security Type:
Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type: PEAP, EAP-TLS
Simple AP (Wi-Fi Direct): WPA2-PSK (AES)

Specifications of Main Parts:
LCD:
Size : 0.62? (C2 Fine)
Driving Method : Poly-silicon TFT active matrix
Pixel Number : 2,073,600 dots (1920 x 1080) x 3
Native Resolution : Full HD
Aspect Ratio 16:9
Pixel Arrangement : Cross stripe

Light Source:
Lamp Type : 230 W UHE
Life (Normal / Eco) : 5,500 hours / 12,000 hours

Projection Lens:
Type : Optical Zoom (Manual) / Focus (Manual)
F-Number : 1.51 ? 1.77
Focal Length : 18.2 ? 29.1 mm
Zoom Ratio : 1.0 - 1.62
Throw Ratio : 1.30 ? 2.09
