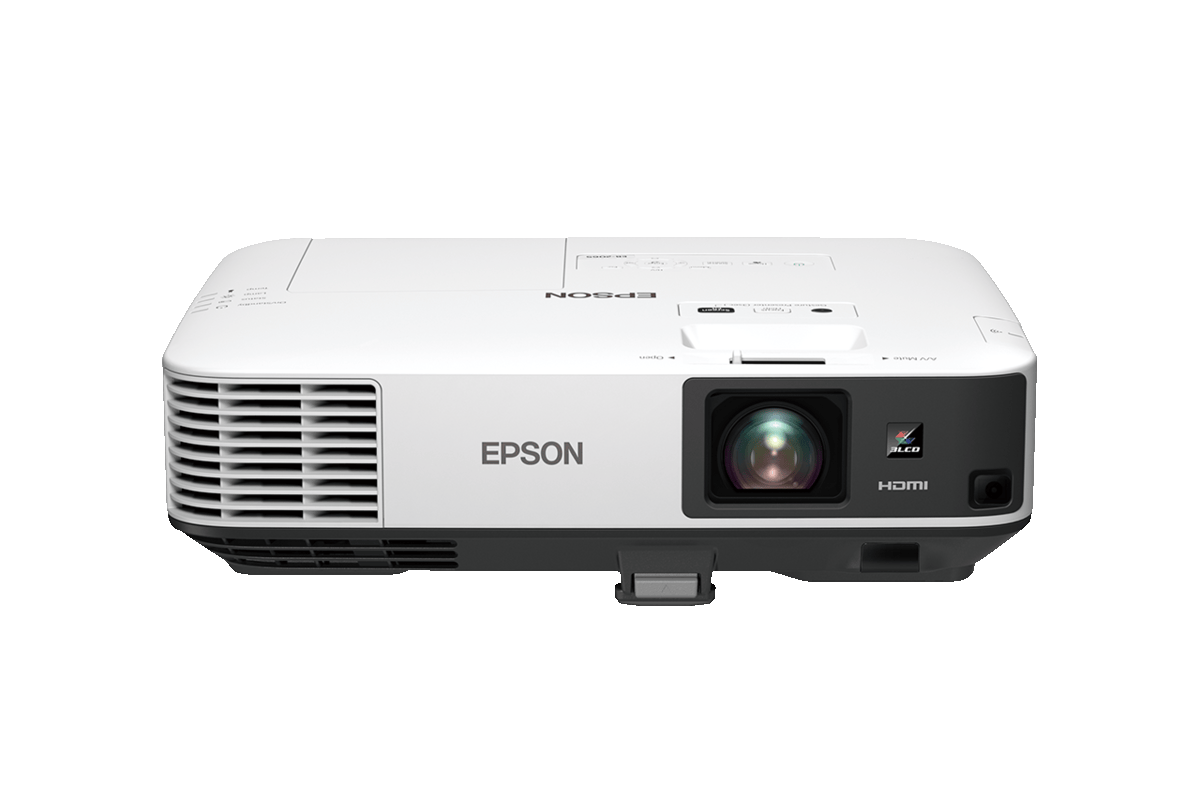

Epson EB 2065 XGA 3LCD Projector

Specifications

Projectors Facets:
Wifi
Quick Corner

Laser / Lamp, Projectors, Facets:
Lamp

Resolution, Projectors Facets:
XGA

Contrast Ratio, Projectors Facets:
15,000:1

Inputs & Interfaces, Projectors Facets:
RJ-45 & RS-232

Brightness Range Lumens, Projectors Facets:
4001

Projection Technology:
RGB liquid crystal shutter projection system (3LCD)

Brightness:
White Light Output (Normal/Eco):
5,500lm / 3,800lm
Colour Light Output:
5,500lm

Connectivity:
Network:
Wired LAN: RJ45 x 1
Wireless: Optional

Analog Input:
D-Sub 15Pin: 2 (1 Blue, 1 Black)
Composite: 1

Digital Input:
HDMI: 2

Output Terminal:
D-Sub 15Pin: 1 (Black)

Audio Input:
RCA (White/Red): 1
Stereo Mini Jack: 2

Audio Output:
Stereo Mini Jack: 1

Control I/O:
RS-232C: D-Sub 9pin x 1

Others:
USB Type A: 1 (for USB Memory, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings)

Contrast Ratio:
15,000:1

Wireless Specifications (Wireless LAN: Built-in):
Supported Speed for Each Mode:
IEEE 802.11b: 11 Mbps3
IEEE 802.11g: 54 Mbps3
IEEE 802.11n: 130 Mbps*3

Wireless Security:
Quick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP, WPA/ WPA2-EAP

Supported EAP Type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP

Screen Size (Projected Distance):
Zoom : Wide:
30? - 300? [ 0.83 - 8.54 m]
Zoom : Tele:
30? - 300? [1.36 - 13.86 m]

Geometric Correction:
Vertical/Horizontal Keystone:
±30° / ±30° (Zoom: Centre)

Auto Keystone:
Yes

Quick Corner:
Yes

Operating Temperature:
Below 2,286m / 7,500ft: 5 - 40 °C <41 - 104 °F>
Above 2,286m / 7,500ft (w/ High Altitude Mode): 5 - 35 °C <41 - 95 °F>

Operating Altitude:
0 - 3,048 m (0 - 10,000 ft) (over 1,500m / 4,921ft : with high altitude mode)

Start-Up Period:
About 8 seconds, Warm-up Period: 30 seconds

Cool Down Period:
Instant Off

Internal Speaker(s):
Sound Output:
16W Monaural

Fan Noise (Normal/Eco):
39dB / 29dB

Dimension Excluding Feet (W x H x D):
377 x 101 x 219 mm

Air Filter:
Type:
High Efficiency Filter

Maintenance Cycle:
5,000 hours (Power Consumption: Normal)
10,000 hours (Power Consumption: Eco)

Power:
Power Supply Voltage:
100 - 240 V AC ±10%, 50/60 Hz

General:
Weight:
Approx. 4.4kg

Direct Power On / Off:
Yes

Specifications of Main Parts:

LCD:
Size: 0.63? (D10,2 Fine)
Native Resolution: XGA (1024 x 768)

Lamp:
Type: Lamp
Life (Normal / Eco)*1: 5,000 / 10,000 hours
