Asus H170 PRO GAMING LGA1151 DDR4 DisplayPort HDMI SATA 6Gb/s USB 3.1 H170 ATX Motherboards

Price: Not Available.

Status: Phased Out

Product Description:
LGA1151 socket for 6th Gen Intel Core Desktop Processors / SupremeFX: Flawless audio that makes you part of the game / Intel Gigabit Ethernet, LANGuard: Top-speed protected networking / USB 3.1 Type A & M.2: Ultra-speedy transfer for faster gaming / Gamer's Guardian: Highly-durable components and smart DIY features

Asus H170 PRO GAMING

Well-built ATX gaming board loaded with gaming-optimized features

LGA1151 socket for 6th-gen Intel® Core i7 / Core i5 / Core i3, Pentium® and Celeron Processors
Dual DDR4 2133 support
SupremeFX: Flawless audio that makes you part of the game
Sonic Radar ll: Scan and detect your enemies to dominate
Intel Gigabit Ethernet, LANGuard and GameFirst III: Top-speed protected networking
RAMCache: Speed up your game loads
Gamer's Guardian: Highly-durable components and smart DIY features
USB 3.1 Type-A/C and M.2: Ultra-speedy transfers for faster gaming

FLAWLESS AUDIO THAT

MAKES YOU PART OF THE GAME!

Be the best on the battlefield with H170 Pro Gaming's truly immersive SupremeFX audio and

experience sound so alive with realism that it hands you the vital competitive edge needed to win.

With near-lossless delivery and exclusive Sonic Radar II technology to pinpoint battlefield enemies

before they spot you, SupremeFX sounds stupendous and puts both your ears and frags in front

of everyone else!

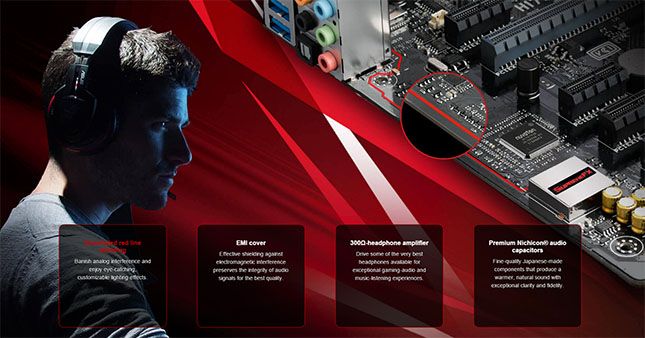

SupremeFX

Shielded audio, superior sound

ASUS-exclusive SupremeFX technology delivers high-fidelity, near-lossless audio no matter

how frantic your game becomes. The purity and stability of the remarkable 115dB signal-to-noise

ratio (SNR) is assured, with a shielded design, electromagnetic-interference (EMI) cover and

voltage-protected 5V power supply. Supreme FX's superior components, including the trusted

Realtek ALC1150 codec, maximize acoustic performance and eliminate interference so you

hear only the very best from your gaming headset or speakers!

Sonic Radar II

Scan and detect to dominate!

Sonic Radar II displays a stealthy overlay that shows what your opponents and teammates are up

to on the battlefield, all managed via a simple control panel and customizable game list. See the

direction and origin of key in-game sounds, and practice your enemy-pinpointing skill, plus Audio

Enhancement technology clarifies every last sound so you hear the distant sound of enemy

footsteps and become the hunter, not the hunted!

TOP-SPEED PROTECTED NETWORKING

Only the quickest shot survive, so H170 Pro Gaming banishes lag letting you annihilate your

foes as fast as your trigger finger! Our engineers pack in only the best networking technology,

including tournament-level Intel® Gigabit Ethernet and ASUS-exclusive LANGuard and GameFirst

III to keep your connection fast, so always fire first and watch your enemies fall.

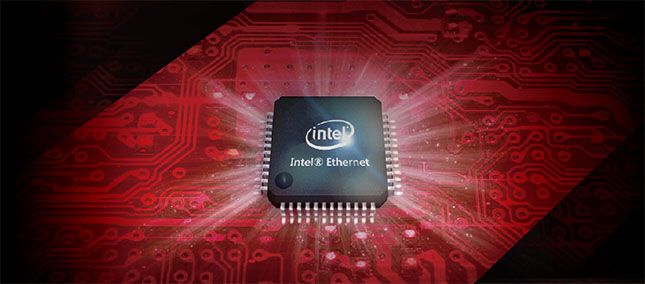

Intel Gigabit Ethernet

More throughput, less CPU usage and great gaming experiences

Featuring the very latest Intel Ethernet (I219V) for faster, smoother gaming always. Intel's LAN

has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP

and UDP throughput. This significantly reduces the processor's workload, so there's more power

for your game and your gameplay.

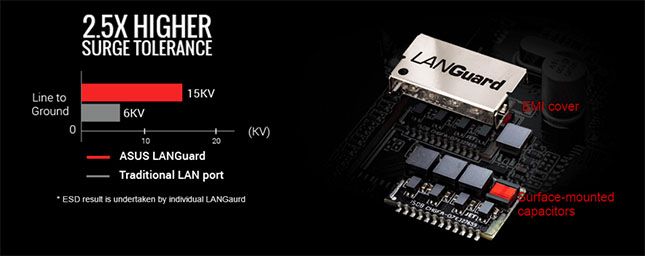

LANGuard

Pumped-up throughput. Best surge protection

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology

and premium anti-EMI surface-mounted capacitors for rock-solid gaming connections and better

throughout for online play, plus electrostatically-guarded and surge-protected components for greater

tolerance to static electricity and improved protection against surges.

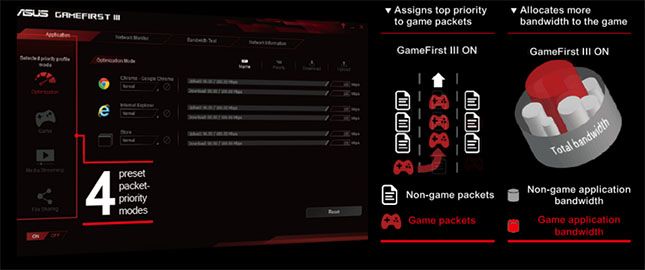

GameFirst III

Game faster, score higher

Victory and defeat are separated by just milliseconds, so exclusive GameFirst III prioritizes game-related

packets and allocates more bandwidth to games, eliminating laggy gameplay, streaming stutters and

file-sharing slowdown ensuring you're always the frontrunner. Choose from Optimization, Game, Media

Streaming or File Sharing presets and watch your network fly!

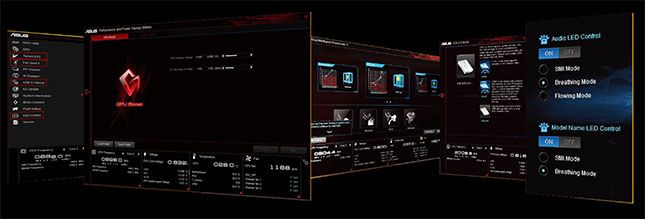

PERFORMANCE LEVEL UP

Maxed-out performance means maximum gaming thrills, and with exclusive AI Suite 3's dashboard-style

control panel you'll fine-tune almost every aspect of your H170 Pro Gaming-based system. Get the best

balance between performance, cooling, stability, efficiency and aesthetics all via a simple and intuitive interface.

GPU Boost

Exclusive ASUS GPU Boost technology lets you accelerate H170 Pro Gaming's integrated

GPU (iGPU) for extreme graphics performance safely and easily via a user-friendly interface

it's a free iGPU level-up!

Fan Xpert 3

Via five 4/3 pin (PWM/DC) combo fan connectors and five onboard thermal sensors, Fan Xpert 3

makes sure every fan achieves the best balance of cooling performance and low noise. H170 Pro

gaming also has a fan-extension (EXT) header for quick-and-easy fan upgrades.

USB 3.1 Boost

An exclusive utility that automatically accelerates USB 3.1 for sequential read/write speeds of up to

854.6/863.9MB/s.

* It requires to update USB 3.1 Boost to V1.08.02 or later version

LED Control

Customizing the audio and marque LEDs is easy: just flip the switches and pick the radio buttons

that match your style and gaming mood!

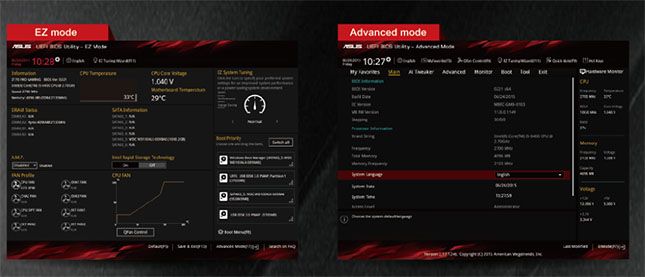

Award-winning BIOS design

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more

appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help

you find your way. In EZ Mode you can get set up very quickly, applying the date and time, fan profiles

and Intel Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up favorites

and shortcuts, record and review recent changes with Last Modified or make notes in Quick Notes.

CrashFree BIOS 3

Never again worry about corrupted BIOS, as CrashFree BIOS 3

lets you restore a PC to working order even when it won't boot!

EZ Flash 3

Update the latest BIOS via the internet, and from within the BIOS.

RAMCache

Speed your game loads

Uniquely-intelligent technology that effectively caches an entire storage device so that favorite games

and apps launch at breakneck speeds, getting to work the moment it's activated. RAMCache turns

milliseconds into microseconds to boost game-load times to stratospheric levels!

GAMER'S GUARDIAN FOR REAL-WORLD PROTECTION

Protect your back in the game and let H170 Pro Gaming protect all sides in the real world!

Motherboard self-protection with loads of brilliant defenses, including our unique smart DIY

features ensures long-term gaming is in your future.

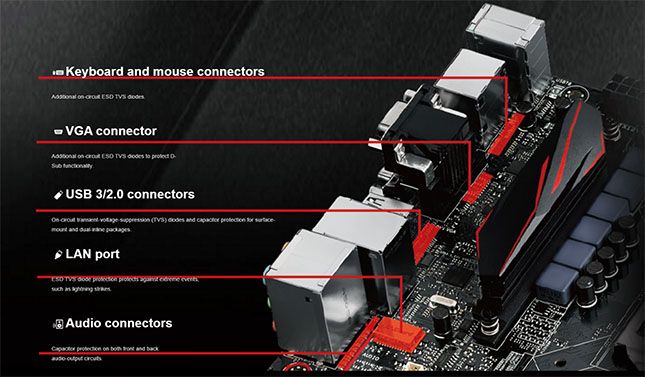

ESD Guards

2X-greater ESD protection for extended component lifespan

Electrostatic discharge (ESD) could mean game over for your rig, so H170 Pro Gaming is

protected by ESD Guards to actively prevent ESD ensuring longer component lifespan and

providing system resilience that's two times greater than industry standards. Game on!

TECH SPECS

CPU : Intel® Socket 1151 for 6th Generation Core

i7/Core i5/Core i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset : Intel® H170

Memory : 4 x DIMM, Max. 64GB, DDR4 2133 MHz Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic : Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Maximum shared memory of 512 MB

Supports Intel® InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Multi-GPU Support : Supports AMD Quad-GPU CrossFireX Technology

Expansion Slots : 1 x PCIe 3.0/2.0 x16

1 x PCIe 3.0/2.0 x16 (x4 mode, black)

4 x PCIe 3.0/2.0 x1

LAN : Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology

Anti-surge LANGuard

Audio : SupremeFX 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 115 dB SNR stereo playback output

Audio Feature :

- SupremeFX Shielding Technology

- Optical S/PDIF out port(s) at back panel

- Sonic Radar II

USB Ports : ASMedia® USB 3.1 controller :

1 x USB 3.1 port(s) (1 at back panel, , Type-A)

ASMedia® USB 3.1 controller :

1 x USB 3.1 port(s) (1 at back panel, , Type-C, Reversible)

Intel® H170 chipset :

6 x USB 3.0/2.0 port(s) (2 at back panel, , 4 at mid-board)

Intel® H170 chipset :

8 x USB 2.0/1.1 port(s) (2 at back panel, , 6 at mid-board)

Special Features : Gamer's Guardian:

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports

- DRAM Overcurrent Protection

- Stainless Steel Back I/O

- Highly Durable Components

- DIGI+ VRM

ASUS Exclusive Features :

- GPU Boost

- AI Suite 3

- Ai Charger+

- USB 3.1 Boost

- Disk Unlocker

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 3

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

- ASUS Q-Shield

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

Media Streamer

RAMCache

Operating System : Windows® 10 , 64bit

Support Windows® 8.1 , 64bit

Windows® 7 , 32bit/64bit

Back I/O Ports : 1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

1 x USB 3.1 (black)Type-C

1 x USB 3.1 (red)Type-A

2 x USB 3.0

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

Internal I/O Ports

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports

1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices

support (Supports both SATA & PCIE SSD)

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x CPU OV

1 x Clear CMOS jumper(s)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x ROG extension (ROG_EXT) header(s)

1 x 14-1 pin TPM connector
