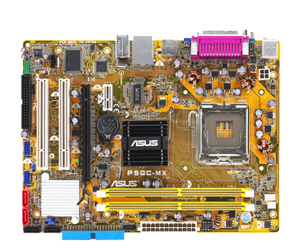

P5GC-MX with Intel 945GC chipset inside supports Intel dual-core CPU and features 800MHz FSB, PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 memory, and HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5GC-MX is the most affordable all in one solution platform for Intel® Core2 Processor with Intel 945GC chipset inside. | ||
![]() ![]() This motherboard supports the latest Intel® Core2 processors in LGA775 package. With new Intel® Core microarchitecture technology and 800 MHz FSB, Intel® Core2 processor is one of the most powerful and energy efficient CPU in the world. | ||
![]() ![]() Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability. | ||
![]() ![]() The Intel 945GC graphics memory controller hub(GMCH) and the ICH7 I/O controller hub provide the vital interfaces for the motherboard. The GMCH features the Intel Graphics Media Accelerator 950, an integrated graphics engine for enhanced 3D, 2D, and video capabilities. The GMCH contains one 16-lane PCI Express port intended for an external PCI Express graphics card and provides the interface for processor in the 775-land package with 800/533MHz FSB, dual channel DDR2 at speeds of up to 533MHz. | ||
![]() ![]() The Intel Graphics engine has new capabilities that provide a significant increase in graphics performance. DirectX 9 hardware acceleration, 400MHz core clock, and up to 224MB of video memory all together provide a full-value, high performance graphic solution to you. Through a dual-independent display technology, different content can be displayed on each monitor or stretched across both displays for more workspace. | ||
![]() ![]() Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. | ||
![]() ![]() PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems. | ||
![]() Enjoy high-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. | ||
![]() Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility. | ||
![]() USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. | ||
![]() EZ Flash is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a floppy disk before entering the OS. | ||
![]() The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. | ||
![]() ASUS MyLogo personalizes and adds style to your system with customizable boot logos | ||
![]() Constant, high-pitched noise generated from heatsink fans are a thing of the past thanks to ASUS Q-Fan. This motherboard with Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation | ||
![]() ![]() The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment. |
Specification |
CPU | Intel Socket 775 Core2 Duo/Pentium® D/Pentium® 4/Celeron D Processors Compatible with Intel® 05B/05A/06 processors Intel® Hyper-Threading Technology ready * Refer to www.asus.com for Intel CPU support list |
Chipset | Intel 945GC Intel ICH7 |
Front Side Bus | 1333/1066/800/533 MHz *1333 when overclocking |
Memory | 2 x DIMM, Max. 4 GB, DDR2 667/533/400 Non-ECC,Un-buffered Memory Dual Channel memory architecture *When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. |
Expansion Slots | 1 x PCIe x16 1 x PCIe x1 2 x PCI 2.2 |
VGA | Discrete Intel Graphics Media Accelerator 950 Supports RGB with max. resolution 2048 x 1536 @75Hz Max. Vertical Refresh Rate 1920x1440 @85Hz |
Storage | Southbridge 1 xUltraDMA 100/66/33 4 xSATA 3 Gb/s ports |
LAN | PCIe Gigabit/100/10 LAN controller |
Audio | 6 -Channel High-Definition Audio CODEC |
USB | 8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel) |
Special Features | ASUS MyLogo 2 ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS Q-Fan |
Back Panel I/O Ports | 1 x Parallel 1 x VGA 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Serial port 1 x LAN(RJ45) port 4 x USB 2.0/1.1 6 -Channel Audio I/O |
Internal I/O Connectors | 2 x USB connectors support additional 4 USB ports 1 x Floppy disk drive connector 1 x IDE connector 4 x SATA connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x S/PDIF Out connector 1 x4-pin ATX 12V Power connector 24 Power connector Front panel audio connector Chassis Intrusion connector CD/AUX audio in System Panel |
BIOS | 8 Mb Flash ROM DMI 2.0 AMI BIOS PnP WfM 2.0 SM BIOS 2.4 |
Manageability | WfM 2.0,DMI 2.0,WOL by PME, WOR by PME |
Accessories | User's manual 1 x UltraDMA 133/100/66 cable 1 x Floppy disk drive cable 1 x SATA cable 1 x SATA power cable I/O Shield |
Support Disc | Drivers ASUS PC Probe II Anti-virus software (OEM version) ASUS Update |
Form Factor | uATX Form Factor 9.6 inch x 7.4 inch ( 24.5 cm x 18.8 cm ) |
