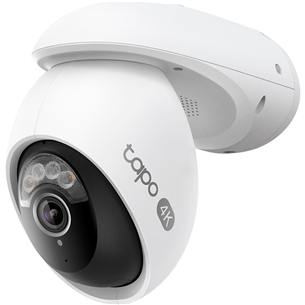

TP-Link Tapo C560WS Outdoor Pan/Tilt Security Wi-Fi Camera

Specifications

CAMERA

Image Sensor
1/27? Progressive Scan CMOS Starlight Sensor

Lens
Focal Length: 4 mm ± 5%
Aperture: F1.6 ± 5%
Field of View: 105° (Diagonal), 88° (Horizontal), 45° (Vertical)

Night Vision
850 nm IR LED
Starlight Color Night Vision

Lighting
2× Built-in Spotlights

Interface & Button
1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)

Pan/Tilt Range
Pan Mechanical Range: 326° (360° Pan Coverage)
Tilt Mechanical Range: 53° (98° Tilt Coverage)

VIDEO & AUDIO

Maximum Resolution
4K 8MP (3840 × 2160 px)

Frame Rate
25 fps

Digital Zoom
18x

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR
WDR

Audio Input & Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)

General Information about using MicroSD Cards >

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

DETECTION AND NOTIFICATIONS

AI Detection
Human Face Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Camera Tampering

Activity Zones
Yes

Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity
Connect via Wi-Fi or Ethernet

Wireless Connectivity
IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz / 5 GHz

Ethernet Port
Yes

RTSP
Yes

ONVIF
Yes

SECURITY

Security
SSL/TLS, AES

POWER

Power Source
12V DC Power Adapter

Input Voltage
100?240 V, 50/60 Hz

Output Voltage
12 V, 1 A (DC Power)

GENERAL

Smart Integration
Google Assistant, Amazon Alexa

Weather Resistance
IP66

System Requirements
Tapo App: iOS 12.0+ and Android 5.0+ operating systems

Mounting Options
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)

Operating Temperature
-30?~60? (-22°F~140°F)

Storage Temperature
-40?~60? (-40°F~140°F)

Operating Humidity
10%~90% RH, Non-condensing

Storage Humidity
0~90% RH, Non-condensing

Dimensions (W × D × H)
147.4 × 74.7 × 165.4 mm (Mounting Bracket Included)
147.4 × 74.7 × 157.4 mm (Mounting Bracket Excluded)

Package Content
Tapo C560WS Camera ×1
DC Power Adapter ×1
Mounting Template Sticker ×1
Mounting Bracket ×1
Mounting Anchors and Screws
Bracket Screws ×2
Waterproof Seal ×1
Waterproof Cable Attachments ×1
Quick Start Guide

Certifications
FCC, RoHS, RCM
