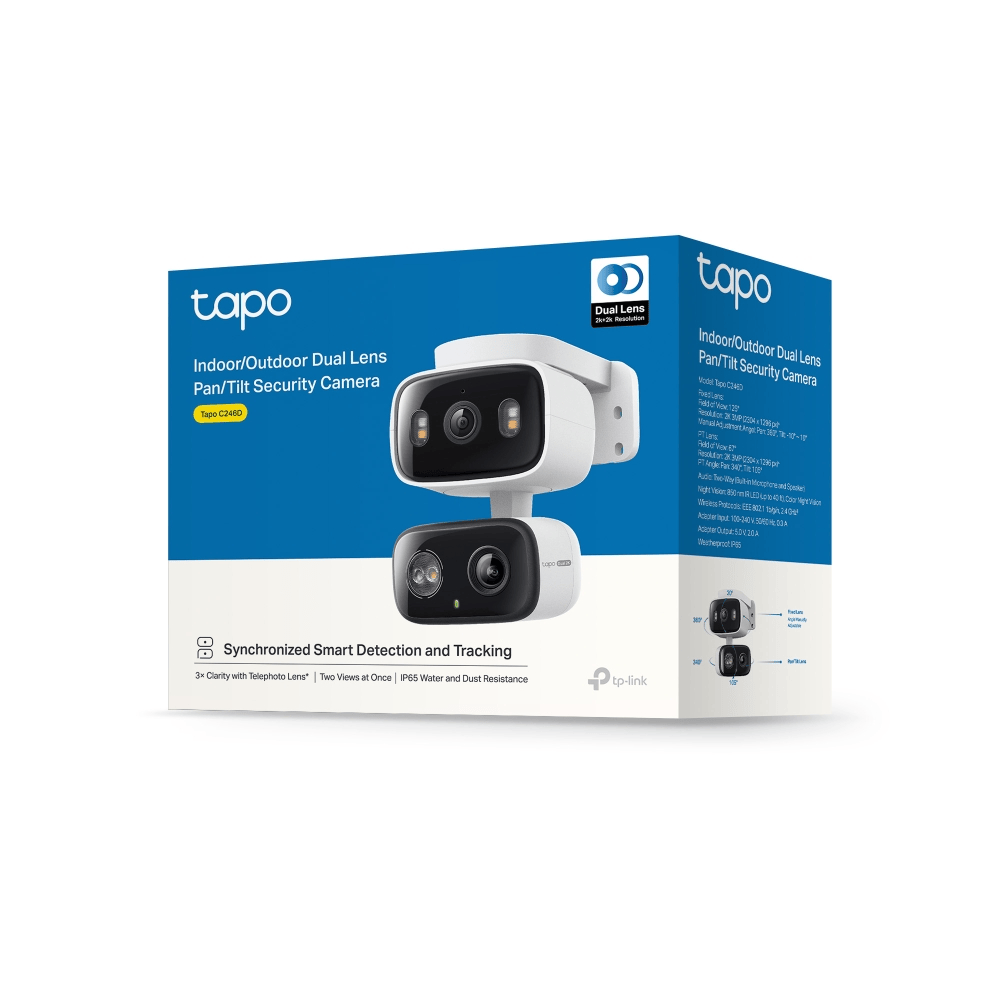

TP-Link Tapo C246D Indoor/Outdoor Dual Lens Pan/Tilt Security Camera

Specifications

CAMERA

Image Sensor
1/2.8? Progressive Scan CMOS Starlight Sensor

Lens
Fixed Lens
Focal Length: 2.8 mm
Aperture: F1.6
Field of View: 125.5° (Diagonal), 107.8° (Horizontal), 57.8° (Vertical)

PT Lens
Focal Length: 6.0 mm
Aperture: F1.6
Field of View: 67.1° (Diagonal), 57.8° (Horizontal), 30.1° (Vertical)

Night Vision
850 nm IR LED (40 ft / 12 m), Color Night Vision

Day/Night Switch
IR-Cut Filter with Auto-Switching

Lighting
/

Hub Compatibility
/

Interface & Button
1× RESET Button
1× microSD Card Slot (Up to 512 GB)

VIDEO & AUDIO

Maximum Resolution
2304 × 1296 px

Frame Rate
15 fps

Digital Zoom
10.8×

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR
WDR

Audio Input & Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage
microSD Card Slot on Camera (Up to 512 GB)

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

DETECTION AND NOTIFICATIONS

AI Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Baby Cry Detection
Glass Break Detection
Dog Barks Detection
Cat Meows Detection
Camera Tampering

Activity Zones
Yes
*Works with Motion Detection, Person Detection, Pet Detection, and Vehicle Detection

Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity
Connect via Wi-Fi

Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi

Protocol
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP

Max. Distance Between Hub and Camera/Doorbell
/

Ethernet Port
/

RTSP
Yes

ONVIF
Yes

Transmission Rate
11b: 11 Mbps
11g: 54 Mbps
11n: 72.2 Mbps

SECURITY

Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
PWPA/WPA2-PSK

POWER

Power Source
5 V DC Power Adapter

Input Voltage
100-240 V, 50/60 Hz, 0.3A

Output Voltage
5.0 V, 2.0 A (Type-C Power)

Power Cord Length
3 m

Typical Power Consumption
3.0W

Maximum Power Consumption
9.0 W

GENERAL

Smart Integration
Google Assistant, Amazon Alexa, Samsung SmartThings

Weather Resistance
IP65

Mounting Options
Tabletop
Wall-Mounted
Ceiling-Mounted
Pole-Mounted

Operating Temperature
-20 ºC ~ 50 ºC (-4 °F ~ 122 °F)

Storage Temperature
-40 ºC ~ 60 ºC (-40 °F ~ 140 °F)

Operating Humidity
10% ~ 90% RH, Non-condensing

Storage Humidity
0 ~ 90% RH, Non-condensing

Weight
9.77 oz / 277 g

Package Content
Tapo C246D Camera × 1
Mounting Bracket × 1
Mounting Template Sticker × 1
Mounting Anchors × 4
Mounting Screws × 4
Power Adapter × 1
3 m USB Adapter Cable × 1
Quick Start Guide

Dimensions (W X D X H)
3.07 × 3.02 × 4.20 in (78 × 76.83 × 106.83 mm)
