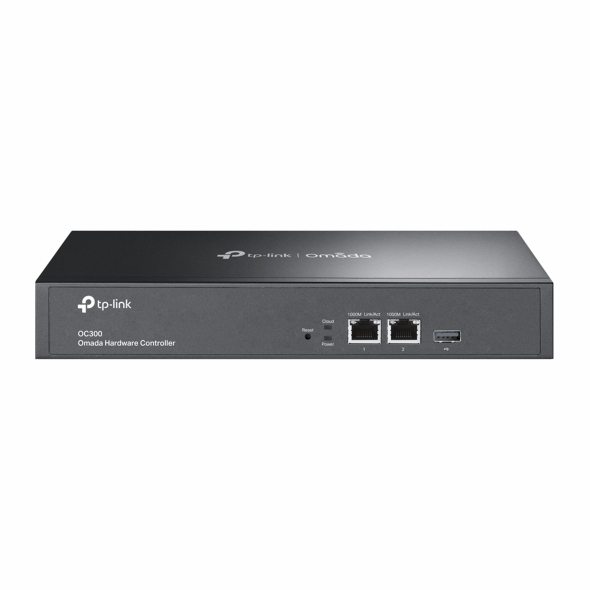

TP-Link OC300 Omada Hardware Controller

Specifications

HARDWARE FEATURES

Interface
2× 10/100/1000 Mbps Ethernet Ports
1× USB 3.0 Port

Power Supply
100?240 V~50/60 Hz, 0.6 A

Dimensions ( W x D x H )
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

MANAGEMENT FEATURES

Omada App
Yes

Centralized Management
Up to 500 Omada access points, JetStream switches, and SafeStream routers*
Up to 15,000 clients

*Only some JetStream switches and Safestream gateways can be centrally managed by OC300, please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

OTHERS

Certification
CE, FCC, RoHS

Package Content
Omada Hardware Controller OC300
Quick Installation Guide
Ethernet Cable
Power Cord
Rackmount Kit

System Requirements
Microsoft® Windows®10, 8, 7,Vista?, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment
Operating Temperature: 0?50 ? (32?122 ?)
Storage Temperature: -40?70 ? (-40?158 ?)
Operating Humidity: 10?90% RH non-condensing
Storage Humidity: 5?90% RH non-condensing
