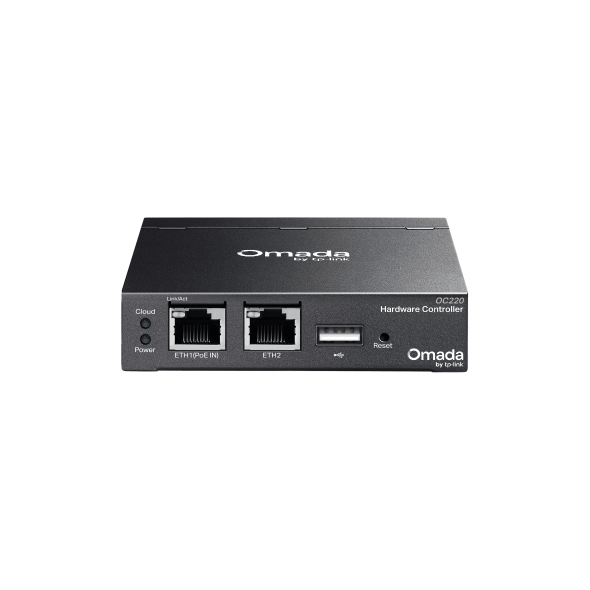

TP-Link OC220 Omada Hardware Controller

Specifications

HARDWARE FEATURES

Interface
2× Gigabit Ethernet Ports
1× USB 2.0 Port
1× Micro USB Port

Power Supply
802.3af PoE
Micro USB?DC 5V/Minimum 1A?

Dimensions ( W x D x H )
3.9×3.9×1.0 in (100×98×25 mm)

MANAGEMENT FEATURES

Omada App
Yes

Centralized Management
100 Omada access points
10 Omada gateways
A maximum of 20 Omada switches*
A maximum of two select DeltaStream GPON OLTs*

Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220
*?The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. Refer to https://www.omadanetworks.com/omada-sdn/product-list/#sp-gpon to find all the DeltaStream GPON OLTs that are supported by the controller.

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

OTHERS

Certification
CE, FCC, RoHS

Package Content
Omada Hardware Controller OC220
Quick Installation Guide
RJ45 Ethernet Cable

System Requirements
Windows 7/8/10/11, Vista?, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment
Operating Temperature: -5?50 ? (23?122 ?)
Storage Temperature: -40?70 ? (-40?158 ?)

Operating Humidity: 10?90% RH non-condensing
