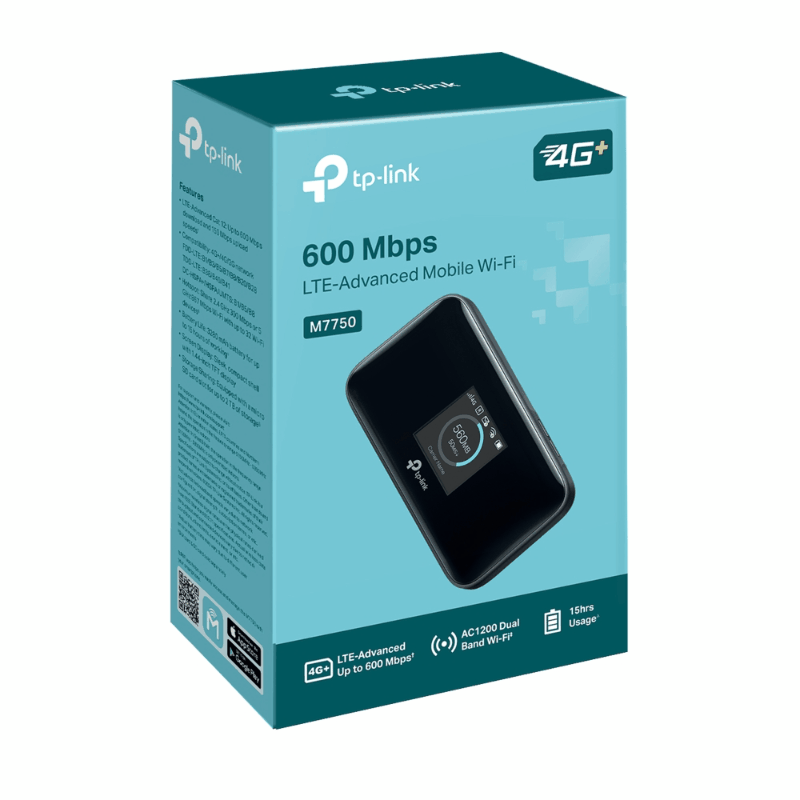

TP-Link M7750 600Mbps LTE-Advanced Mobile Wi-Fi

Specifications

4G

Network Type
4G:
FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500MHz)

3G:
DC-HSDPA/HSUPA/UMTS/WCDMA B1/B5/B8 (2100/850/900MHz)

Speed
Download Speed up to 600Mbps
Upload Speed up to 150Mbps

HARDWARE FEATURES

Interface
1 USB Type-C port for power supply
1 Nano SIM card slot
1 Micro SD card slot

Button
Power On/Off button, Menu button, Reset button

Power Supply
Internal 3280 mAh Rechargeable Battery

Dimensions (W × D × H)
4.5 × 2.5 × 0.7 in. (114 × 64 × 19mm)

Antenna
Internal Antenna

Micro SD Card Reader
Up to 2TB

Screen Display
1.44 inch TFT

WIRELESS FEATURES

Wireless Standards
IEEE 802.11a/n/ac 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency
2.4GHz & 5GHz

Wireless Security
Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering,
Enable/Disable SSID Broadcast

DHCP
DHCP server, DHCP Client List

Transmission Power
2.4G <20dbm, 5G <23dbm

OTHERS

Network Services Enabled by Default
Web Server
Manage and configure device through web or app
Port: 80/443
Protocol: HTTP/HTTPS

DNS
Port: 53
Protocol: UDP

DHCP/DHCPv6
IP address assignment
Port: 67/547
Protocol: UDP

RNDIS Support
Yes
System Requirement: Windows XP/7/8/10/11

Certification
CE, RoHS

Package Content
600Mbps LTE-Advanced Mobile Wi-Fi M7750
USB-C Cable
3280mAh Battery
Quick Installation Guide

*SIM card & SD card sold separately

System Requirements
Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone

Environment
Operating Temperature: 0?~35? (32?~95?)
Storage Temperature: -20?~60? (4?~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
