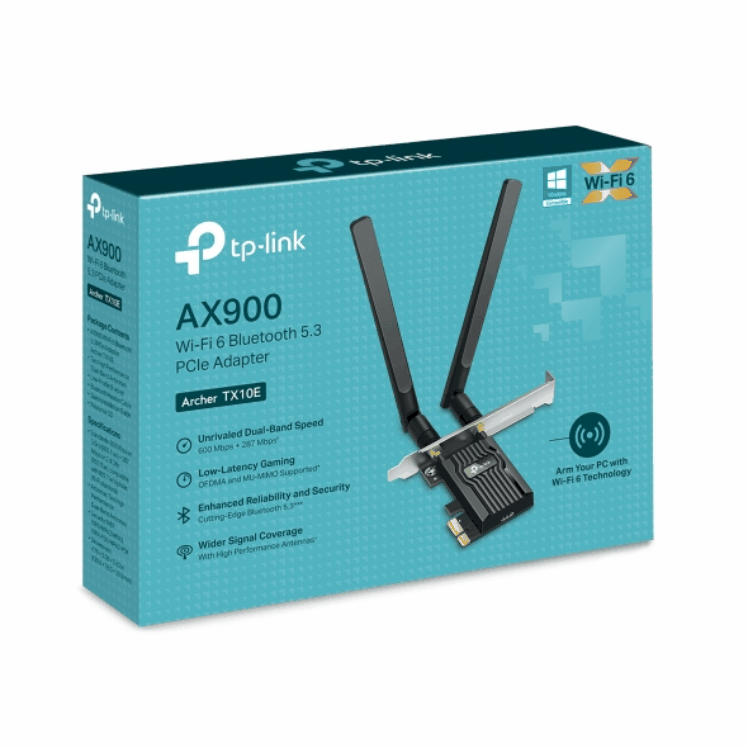

TP-Link Archer TX10E AX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter

Specifications

HARDWARE FEATURES

Interface
PCI Express x1/x4/x8/x16

Dimensions (W x D x H)
120.8 × 78.5 × 20.9 mm
(4.76 × 3.09 × 0.82 in)

Antenna
Two High Gain Dual-Band Antennas

BLUETOOTH FEATURES

Standards and Protocols
Bluetooth 5.3/5.2/5.0/4.2/4.0

Interface
F_USB 2.0

WIRELESS FEATURES

Wireless Standards
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz

Signal Rate
5 GHz
11ax: Up to 600 Mbps(dynamic)
11ac: Up to 433 Mbps(dynamic)
11n: Up to 150 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 287 Mbps(dynamic)
11n: Up to 200 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity
5 GHZ:
11a6M: -94dBm
11ax HE80 MCS11: -59dBm
11ax HE80 MCS0: -87dBm

2.4 GHZ:
11g6M: -95dBm
11ax HE40 MCS11: -65dBm
11ax HE40 MCS0: -93dBm

Wireless Modes
Client mode, Hotspot mode

Wireless Security
WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK

Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 1024QAM

Transmission Power
5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz: 24dBm(FCC) / 20dBm(CE) (EIRP)

OTHERS

Certification
FCC, CE, RoHS

Package Content
AX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter Archer TX10E
Two High Gain Dual-Band Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD

System Requirements
Windows 10/11(64-bit)

Environment
Operating Temperature: 0?~40? (32?~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
