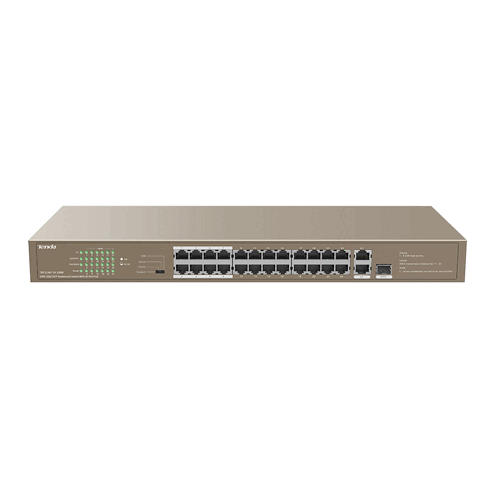

Tenda TEF1126P-24-250W 24FE+2GE/1SFP Rackmount Switch With 24-Port PoE

Brands In Category

Cisco 12 D-Link 8 Linksys 7 Tenda 9 TOTOLINK 3 TP-Link 12

Tenda TEF1126P-24-250W 24FE+2GE/1SFP Rackmount Switch With 24-Port PoE

Price: 10,431

Product Description:
TEF1126P-24-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.

add to cart

shop.villman.com

Technical Specifications

Network standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
LED Indicator	24 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED
Interfaces	24 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100/1000 Base-T Ethernet ports (Data) 1 * 1000 Base-X SFP port (Combo)
Transmission media	Recommended: CAT5/5e UTP or better
Fan quantity	1
Dimension	440.0mmx178.8mmx44.0mm
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	8.8 Gbps
Packet forwarding rate	6.55 Mpps
Buffer	4M
MAC address table	16K
PoE budget	Single port: AF: 15.4W, AT: 30W Whole device: 230W
Power consumption	/
Input voltage	100-240V AC 50/60Hz
Mounting	Desktop mounting: support Wall mounting: support Rack mounting : support
Environment	Operating Temperature: 0?~45? Storage Temperature: -40?~70? Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	FCC?CE?RoHS
