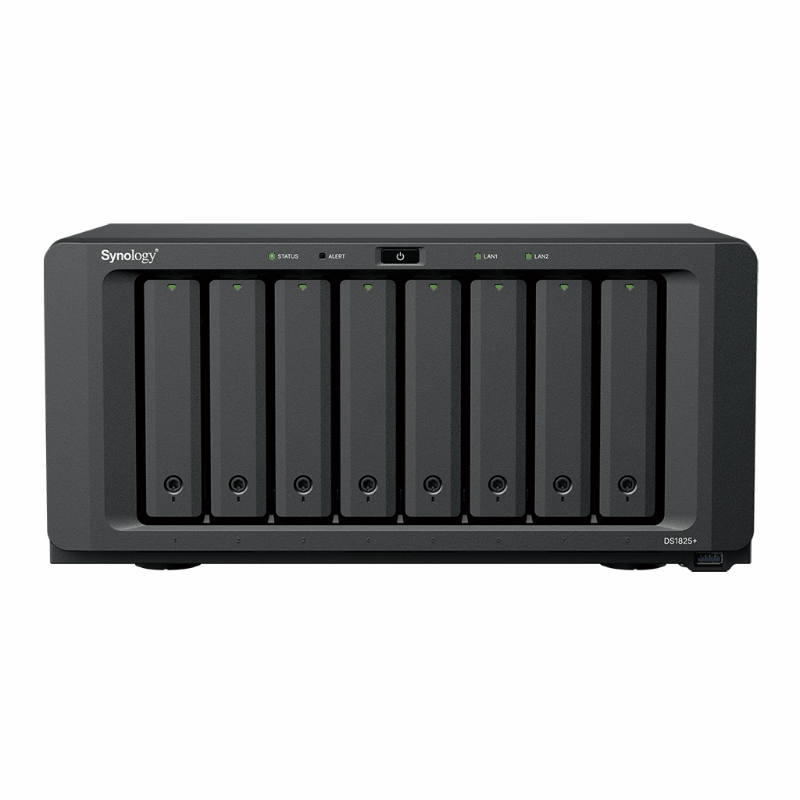

Synology DiskStation DS1825neo+ 8-Bay NAS | AMD Ryzen V1500B Quad-Core | 4GB DDR4 Memory | Dual 2.5GbE LAN

Specifications

CPU

CPU Model: AMD Ryzen V1500B

CPU Quantity: 1

CPU Cores: 4

CPU Threads: 8

CPU Architecture: 64-bit

CPU Frequency: 2.2 GHz

Hardware Encryption Engine: Yes

Memory

System Memory: 4 GB DDR4 non-ECC SODIMM

Pre-installed Memory Module: 4 GB (4 GB × 1)

Total Memory Slots: 2

Maximum Memory Capacity: 32 GB (16 GB × 2)

Storage

Drive Bays: 8 × 3.5" SATA HDD or 2.5" SATA SSD

M.2 Drive Slots: 2 × M.2 2280 NVMe SSD

Maximum Drive Bays with Expansion Unit: 18 (DX525 × 2)

Hot-Swappable Drives: Supported

External Ports

RJ-45 2.5GbE LAN Ports: 2

USB 3.2 Gen 1 Ports: 3

Expansion Ports: 2

Expansion Port Type: USB Type-C

PCIe

PCIe Expansion: 1 × Gen3 x8 slot (x4 link)

Appearance

Dimensions (H × W × D): 166 × 343 × 243 mm

Weight: 6 kg

System Features

System Fans: 2 × 120 mm × 120 mm

Fan Speed Modes: Full-Speed Mode, Cool Mode, Quiet Mode

Easy Replacement System Fan: Supported

Adjustable Front LED Brightness: Supported

Power Recovery: Supported

Noise Level: 23.8 dB(A)

Scheduled Power On/Off: Supported

Wake on LAN/WAN: Supported

Power Specifications

Power Supply Unit: 250 watts

AC Input Voltage: 100V to 240V AC

Power Frequency: 50/60 Hz, Single Phase

Power Consumption (Access): 60.1 W

Power Consumption (HDD Hibernation): 18.34 W

Heat Dissipation (Access): 204.94 BTU/hr

Heat Dissipation (HDD Hibernation): 62.54 BTU/hr

Temperature and Humidity

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -20°C to 60°C (-5°F to 140°F)

Operating Humidity: 8% to 80% RH

Storage Humidity: 5% to 95% RH

Certifications

FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS

Packaging Contents

Main Unit: × 1

Accessory Pack: × 1

AC Power Cord: × 1

RJ-45 LAN Cable: × 2
