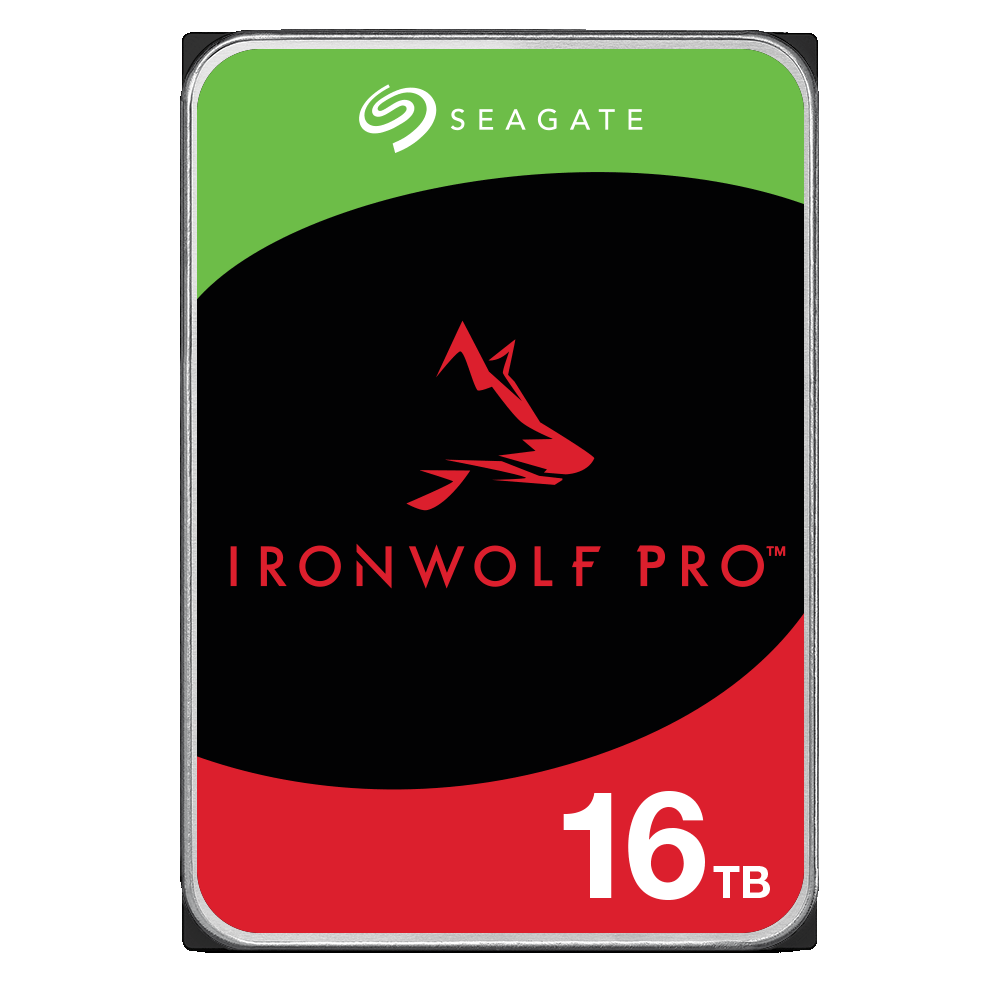

Seagate IronWolf Pro 16 TB 3.5 ST16000NT001 NAS Hard Drive

Specifications

General

Capacity: 16TB
Standard Model Number: ST16000NT001
Interface: SATA 6Gb/s

Features

Drive Bays Supported: Unlimited
Recording Technology: CMR
Drive Design (Air or Helium): Helium
Workload Rate Limit (WRL): 550TB/year
Rotational Vibration (RV) Sensors: Yes
Cache: 256MB

Reliability / Data Integrity

Mean Time Between Failures (MTBF): 2,500,000 hours
Nonrecoverable Read Errors per Bits Read (Max): 1 per 10E15
Power-On Hours per Year: 8760
Sector Size (Bytes per Logical Sector): 512E
Rescue Data Recovery Services: 3 years

Performance

Spindle Speed: 7200 RPM
Interface Access Speed: 6.0, 3.0, 1.5 Gb/s
Maximum Sustained Transfer Rate (OD): 270MB/s
Rotational Vibration @ 10?1500 Hz: 12.5 rad/s

Power

Startup Current, Typical (12V): 2.0A
Idle Power, Average: 5.0W
Average Operating Power: 7.6W
Standby Mode, Typical: 1.0W
Sleep Mode, Typical: 1.0W
Power Supply Requirements: +12V and +5V

Environmental ? Temperature

Operating Temperature (Ambient, Min): 0°C
Operating Temperature (Drive Reported, Max): 65°C
Nonoperating Temperature (Ambient, Min): -40°C
Nonoperating Temperature (Ambient, Max): 70°C

Environmental ? Acoustics

Vibration, Nonoperating (10Hz?500Hz, Grms): 2.27
Acoustics, Idle (Typical, Measured in Idle 1 State): 20 dBA
Acoustics, Seek (Typical): 26 dBA

Environmental ? Shock

Shock, Operating (2ms Read/Write): 50/50 Gs
Shock, Nonoperating (1ms and 2ms): 200 Gs

Physical

Height: 26.11 mm / 1.028 in
Width (Max): 101.85 mm / 4.01 in
Depth (Max): 146.99 mm / 5.78 in
Weight (Typical): 670 g / 1.47 lb

Carton Unit Quantity: 20
Cartons per Pallet / Cartons per Layer: 40 / 8
