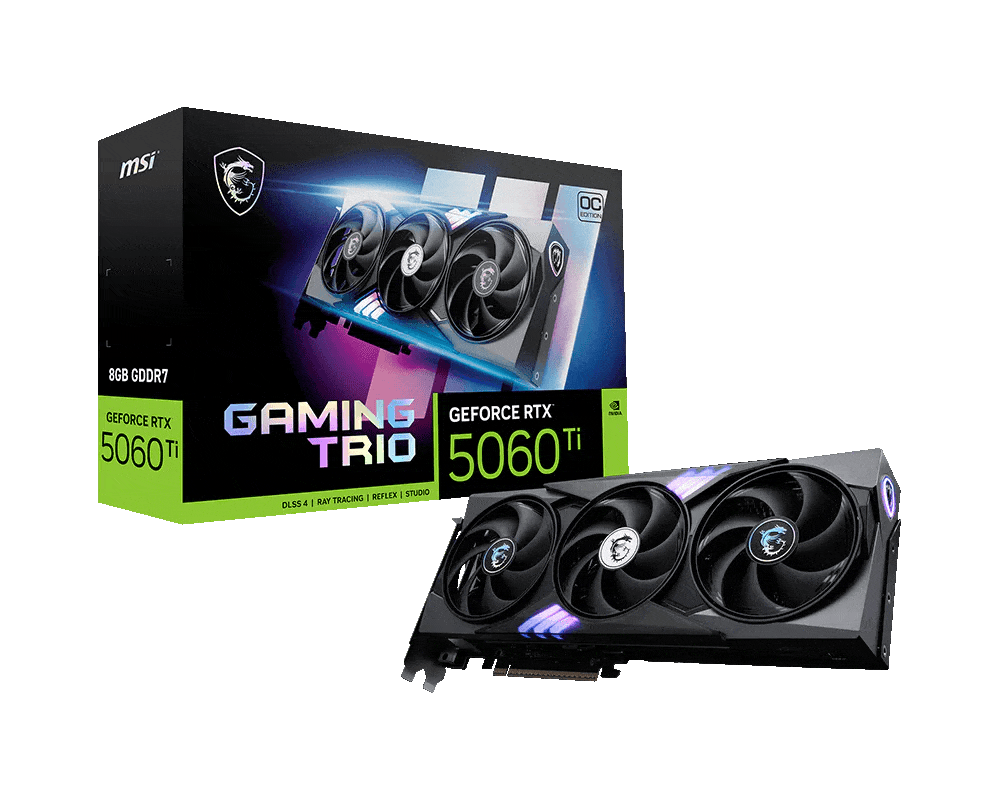

MSI GeForce RTX 5060 Ti 8G GAMING TRIO OC G506T-8GTC

SPECIFICATIONS

Marketing Name
GeForce RTX 5060 Ti 8G GAMING TRIO OC

Model Name
G506T-8GTC

Graphics Processing Unit
NVIDIA® GeForce RTX 5060 Ti

Interface
PCI Express® Gen 5 x16 (uses x8)

Core Clocks
Extreme Performance: 2662 MHz (MSI Center)
Boost: 2647 MHz

CUDA® CORES
4608 Units

Memory Speed
28 Gbps

Memory
8GB GDDR7

Memory Bus
128-bit

Output
DisplayPort x 3 (v2.1b)
HDMI? x 1 (As specified in HDMI? 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support
Y

Power consumption
180 W

Power connectors
16-pin x 1 (ATX 3.1 PSU recommended)

Recommended PSU
600 W

Card Dimension (mm)
300 x 125 x 44 mm

Weight (Card / Package)
839 g / 1345 g

DirectX Version Support
12 Ultimate

OpenGL Version Support
4.6

Maximum Displays
4

G-SYNC® technology
Y

Digital Maximum Resolution
7680 x 4320
