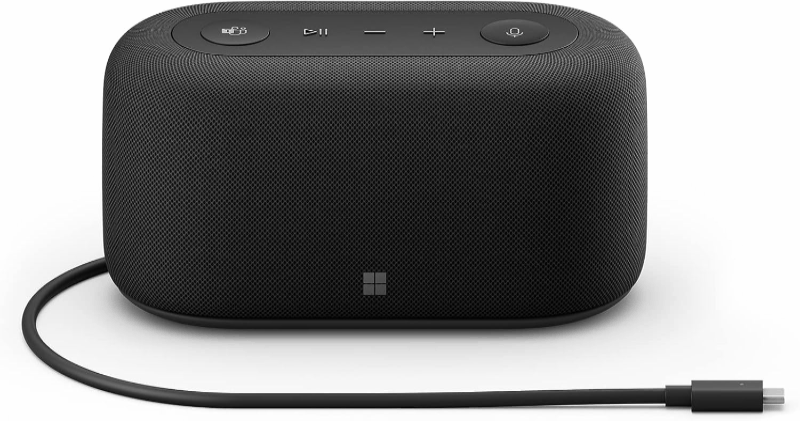

Microsoft Audio Dock Speakerphone with USB-C, USB-A, HDMI and 60W Power Delivery

Technical Specifications

Dimensions
Width: 167.6 mm (6.6 in)
Depth: 80.2 mm (3.16 in)
Height: 81 mm (3.19 in)

Weight
650 g (22.9 oz.)
Package not included

Color
Matte Black

Speakers
Tweeter: OD25.9 × H11.6 mm
Woofer: L54 × W48.8 × H41.5 mm

Sound Pressure Level
Output: Up to 90 dB SPL

Frequency Response
Music Playback: 70Hz?20kHz
Conference: 200Hz?8kHz

Dock Connections
1 × USB-C® (USB 3.1 Gen 2, power up to 7.5W) with DisplayPort Alt Mode, supporting up to dual displays
1 × USB-C® (USB 3.1 Gen 2 data only, power up to 7.5W)
1 × USB-A 3.2 (USB 3.1 Gen 2)
1 × HDMI 2.0 supporting up to 4K @ 60Hz
MST support via USB-C and HDMI ports
USB-C® PD charging support up to 60W

Compatibility
Operating System: Windows 11 Home/Pro, Windows 10, macOS
Conference Software: Microsoft Teams, Zoom, Google Meet

PC Connection
USB-C®

USB Cable Length
1 meter (39.4 in)

Buttons and Controls
Microsoft Teams button
Mute button
Volume Up button

Microphones
Two omni-directional microphone arrays

Audio Codec
Codec: RK2108
Amplifier: TAS5805

Microsoft Accessory Center
Speaker performance customization
Microphone settings

What?s in the Box
Microsoft Audio Dock
Power Supply Unit and AC Cord
Quick Start Guide
Safety and Warranty Documents
