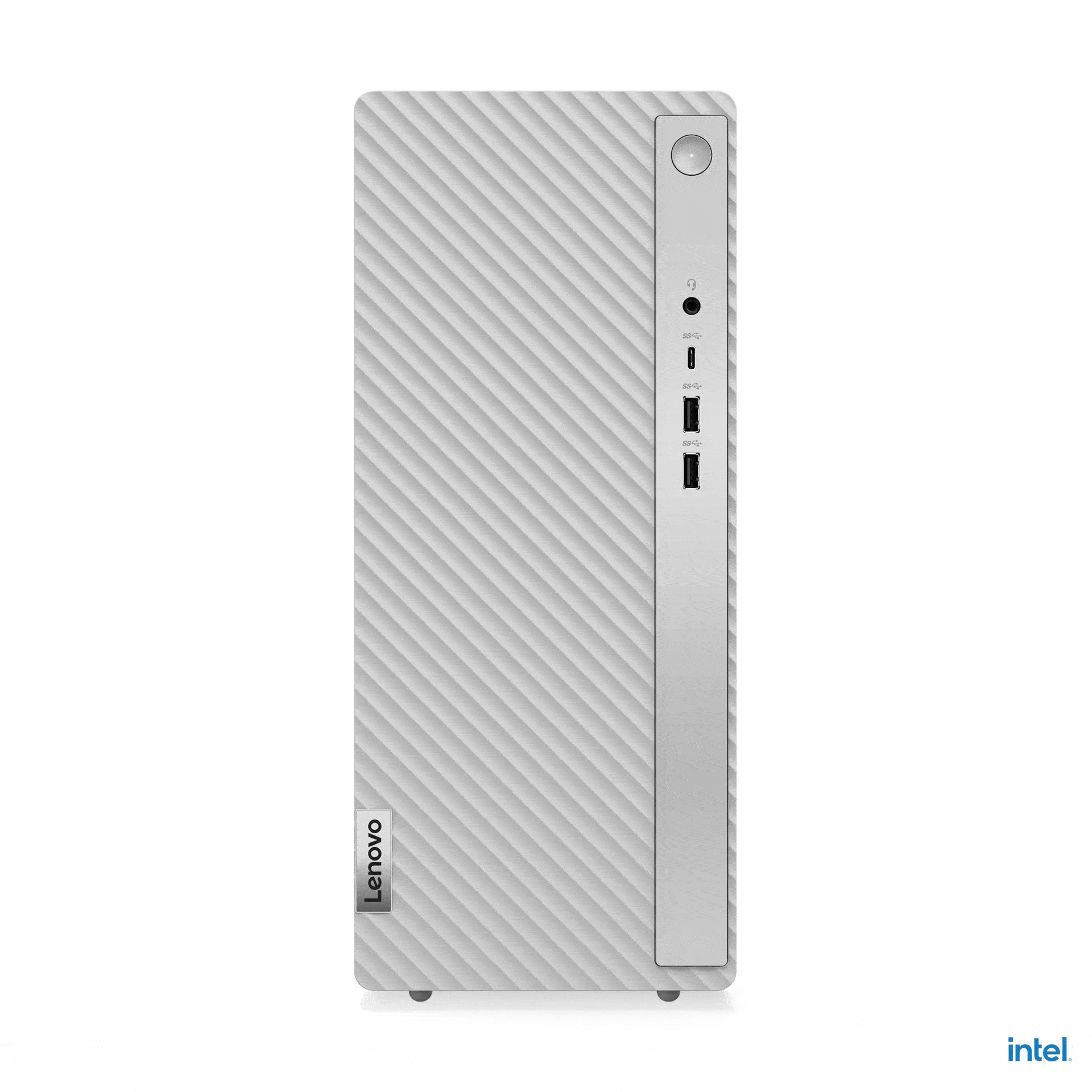

Lenovo IdeaCentre Tower 14IRR9 90X20073PH | Intel Core i5-14400 | 16GB DDR5 | 1TB SSD | Intel Arc A310 LP | Win 11 Home SL

PERFORMANCE

Processor: Intel Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB Intel® Smart Cache
Graphics: Intel® Arc? A310 LP
Chipset: Intel® B760 Chipset
Memory: 1x 16GB UDIMM DDR5-4800
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-5600
Storage: 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Optane Memory: None
Max Storage Support: Up to two drives, 1x 3.5" HDD + 1x M.2 SSD ? 3.5" HDD up to 1TB ? M.2 SSD up to 1TB
Card Reader: No Card Reader
Optical: None
Audio Chip: High Definition (HD) Audio, Realtek® ALC623-CG codec

• 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback

• 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs
  Speakers: No speakers
  Power Supply: 310W 92%

DESIGN

Keyboard: USB Calliope Keyboard, Black, English
Mouse: USB Calliope Mouse, Black
Expansion Slots:

• One PCIe® 4.0 x16, full height

• One PCIe® 3.0 x1, full height

• Two M.2 slots (one for WLAN, one for SSD)
  Case Color: Cloud Grey
  System Fan: 1x Front + 1x Rear
  Form Factor: Tower (13.6L)
  Dimensions (WxDxH): 145 x 287.9 x 340 mm (5.71 x 11.33 x 13.39 inches)
  Weight: Around 4.9 kg (10.8 lbs)

CONNECTIVITY

WLAN + Bluetooth: Wi-Fi® 6E, 802.11ax 2x2 + BT5.3
Ethernet: WWAN Not Supported
WWAN: Integrated 100/1000M

Front Ports:

• 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x headphone / microphone combo jack (3.5mm)

Rear Ports:

• 4x USB-A (Hi-Speed USB / USB 2.0)

• 1x HDMI® 2.1 TMDS

• 1x VGA

• 1x Ethernet (RJ-45)

• 1x headphone (3.5mm)

• 1x power connector

SECURITY & PRIVACY

Security Chip: Firmware TPM 2.0 integrated in processor

MANAGEABILITY

System Management:

SERVICE

Warranty: 3Y Premium Care - Idea DT (ESS)

CERTIFICATIONS

Green Certifications: ErP Lot 3

• RoHS compliant

SOFTWARE

Operating System: Windows® 11 Home Single Language, English
Bundled Software: Microsoft® 365 Basic + Office Home 2024
