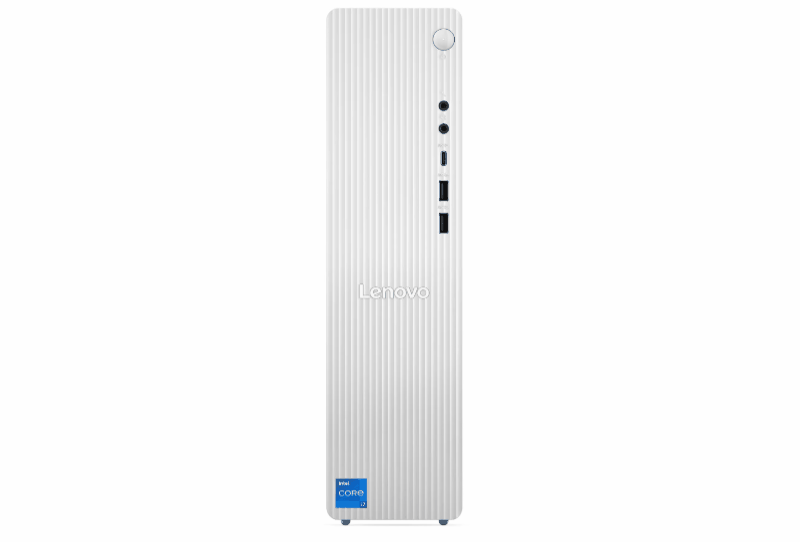

Lenovo IdeaCentre Tower 08IRH9 90XW009FPH | Intel Core i3-1315U | 8GB DDR5 | 512GB SSD | Intel UHD Graphics | Win11

Specifications

Model Lenovo IdeaCentre Tower 08IRH9

Part Number 90XW009FPH

PERFORMANCE

Processor Intel Core i3-1315U 6 Cores (2P + 4E) / 8 Threads P-core up to 4.5GHz E-core up to 3.3GHz 10MB Intel® Smart Cache

Graphics Integrated Intel® UHD Graphics

Chipset Intel® SoC Platform

Memory 1 × 8GB SODIMM DDR5-5200

Memory Slots Two DDR5 SODIMM slots Dual-channel capable

Maximum Memory Up to 32GB DDR5-5200

Storage 512GB M.2 2280 PCIe® 4.0 x4 NVMe® SSD

Maximum Storage Support Up to three drives: 1 × 3.5-inch HDD + 2 × M.2 SSD 3.5-inch HDD bay for customer self-upgrade only M.2 SSD up to 1TB each

Card Reader No card reader

Optical Drive None

Audio Chip High Definition (HD) Audio Realtek® ALC623-CG codec

24-bit DAC supports 44.1K / 48K / 96K sample rates 2-channel DAC supports 16 / 20 / 24-bit PCM format for independent two-stereo-channel or 2.1 audio playback 24-bit ADC supports 44.1K / 48K / 96K sample rates 2-channel ADC supports 16 / 20 / 24-bit PCM format for independent two-stereo-channel audio inputs

Speakers No speakers

Power Supply 260W, 90% efficiency

DESIGN

Keyboard USB Calliope Keyboard Black, English layout

Mouse USB Calliope Mouse, Black

Expansion Slots One PCIe® 3.0 x16, low-profile, length ? 155mm, height ? 70mm One PCIe® 3.0 x1, low-profile, length ? 155mm, height ? 70mm Three M.2 slots: one for WLAN and two for SSD

Case Color Cloud Grey

System Fan 2 × default fans

Pen Support Pen not supported

Form Factor SFF (8.2L)

Dimensions (W × D × H) 89 × 291.4 × 339.5mm 3.5 × 11.5 × 13.4 inches

Weight Approximately 3.59kg (7.9 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2 × 2 Bluetooth® 5.2

WWAN WWAN not supported

Ethernet Integrated 100/1000M Ethernet

Front Ports 1 × USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 2 × USB-A (USB 5Gbps / USB 3.2 Gen 1) 1 × headphone/microphone combo jack (3.5mm) 1 × microphone jack (3.5mm)

Rear Ports 1 × USB-A (USB 5Gbps / USB 3.2 Gen 1) 1 × USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On 2 × USB-A (Hi-Speed USB / USB 2.0) 1 × HDMI® 2.1 TMDS 1 × VGA 1 × Ethernet (RJ-45) 1 × audio-out (3.5mm) 1 × power connector

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in SoC

MANAGEABILITY

System Management Non-vPro®

CERTIFICATIONS

Green Certifications ErP Lot 3 RoHS compliant

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Microsoft® 365 Basic Office Home 2024

ACCESSORIES

Bundled Accessories None
