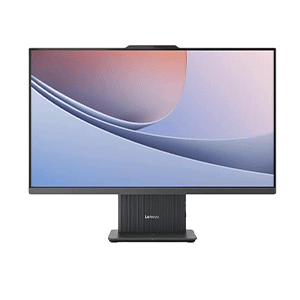

Lenovo IdeaCentre AIO 27ILL11 F0JW002LPH | 27in FHD | Intel Core U 7 256V | 16GB LPDDR5x | 1TB SSD | Intel Arc | Win11

Specifications

Model Lenovo IdeaCentre AIO 27ILL11

Part Number F0JW002LPH

AI PC Category AI PC

PERFORMANCE

Processor Intel Core Ultra 7 256V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.8GHz, 12MB Intel® Smart Cache

NPU Integrated Intel® AI Boost, up to 47 TOPS

Graphics Integrated Intel® Arc Graphics 140V

Chipset Intel® SoC Platform

Memory 16GB Soldered LPDDR5X-8533, MoP Memory

Memory Slots Memory soldered to systemboard, no slots, dual-channel

Max Memory 16GB soldered LPDDR5X-8533 MoP, not upgradable

Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Max Storage Support One drive, up to 1TB M.2 SSD

Card Reader No Card Reader

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC233 codec

Speakers 3Wx2, HARMAN

Camera 5.0MP

Microphone Dual Microphone

Power Supply 135W 90% Adapter

DESIGN

Display 27" FHD (1920x1080) IPS 300nits Anti-glare, 99% sRGB, 3-side borderless, hardware low blue light, Non-Touch

Touchscreen Non-touch

Keyboard Wireless EOS Keyboard, Luna Grey, English

Mouse Wireless EOS Mouse, Luna Grey

Expansion Slots Two M.2 slots (one for WLAN, one for SSD)

Case Color Luna Grey

Stand Monitor Stand

Wireless Charger Wireless Charger

Pen Pen Not Supported

Form Factor AIO (27 inches)

Dimensions (WxDxH) 611.72 x 192.1 x 478.46 mm (24.08 x 7.56 x 18.83 inches)

Weight Around 7.1 kg (15.65 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2x2 + BT5.3

WWAN WWAN Not Supported

Rear Ports 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) 2x USB-A (Hi-Speed USB / USB 2.0) 1x HDMI® 2.1 TMDS 1x HDMI®-in 1x Ethernet (RJ-45) 1x power connector

Left Ports 1x Camera switch 1x Power button

Right Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm)

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in SoC

CERTIFICATIONS

Green Certifications ErP Lot 3/7 GREENGUARD® RoHS compliant

SOFTWARE

Operating System Windows® 11 Home, English

Bundled Software Microsoft® 365 Basic + Office Home 2024
