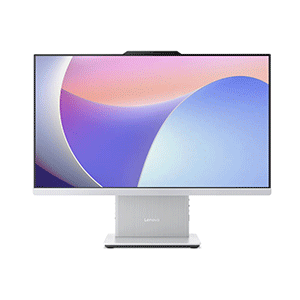

Lenovo IdeaCentre AIO 24IRH9 F0HN00U1PH | 23.8in FHD | Intel Core i3-1315U | 8GB DDR5 | 512GB SSD | Intel Graphics | Win11

Technical Specifications:

Processor Intel Core i3-1315U, 6C (2P + 4E) / 8T, P-core 1.2 / 4.5GHz, E-core 0.9 / 3.3GHz, 10MB

Graphics Integrated Intel UHD Graphics

Chipset Intel SoC Platform

Memory 1x 8GB SO-DIMM DDR5-5200

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 16GB DDR5-5200

Storage 512GB SSD M.2 2280 PCIe 4.0x4 NVMe

Optane Memory None

Max Storage Support One drive, up to 1TB M.2 SSD

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC233-CG codec

Speakers 3Wx2, HARMAN

Camera 5.0MP + IR

Microphone Dual Microphone

Power Supply 90W 89% Adapter

DESIGN

Display 23.8" FHD (1920x1080) IPS Anti-glare 250nits, 100Hz, 99% sRGB, hardware low blue light, 3-side borderless, non-touch

Touchscreen None

Keyboard Wireless EOS Keyboard, Cloud Grey, English

Mouse Wireless EOS Mouse, Cloud Grey

Expansion Slots Two M.2 slots (one for WLAN, one for SSD)

Case Color Cloud Grey

Stand AIO Stand

Mounting -

Wireless Charger None

Pen Pen Not Supported

Form Factor AIO (23.8 inches)

Dimensions (WxDxH) 540 x 192 x 431 mm (21.25 x 7.56 x 16.97 inches)

Weight Around 6.0 kg (13.23 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi 6, 802.11ax 2x2 + BT5.2

WWAN Non-WWAN

Ethernet Integrated 100/1000M

Rear Ports 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)

2x USB-A (Hi-Speed USB / USB 2.0)

1x HDMI®-in 1.4

1x HDMI®-out 2.1 TMDS

1x Ethernet (RJ-45)

1x power connector

Left Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only

1x headphone / microphone combo jack (3.5mm)

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in SoC

Physical Locks No physical locks

SERVICE

Warranty 3Y Premium Care - Idea AIO (ESS)

CERTIFICATIONS

Green Certifications ENERGY STAR 8.0

- ErP Lot 3/7

- GREENGUARD

- RoHS / WEEE / REACH

Other Certifications TÜV Rheinland Flicker Free

TÜV Rheinland Low Blue Light

TÜV Rheinland Ultra Low Noise

SOFTWARE

Operating System Windows 11 Home Single Language, English

Bundled Software Microsoft 365 Basic + Office Home 2024
