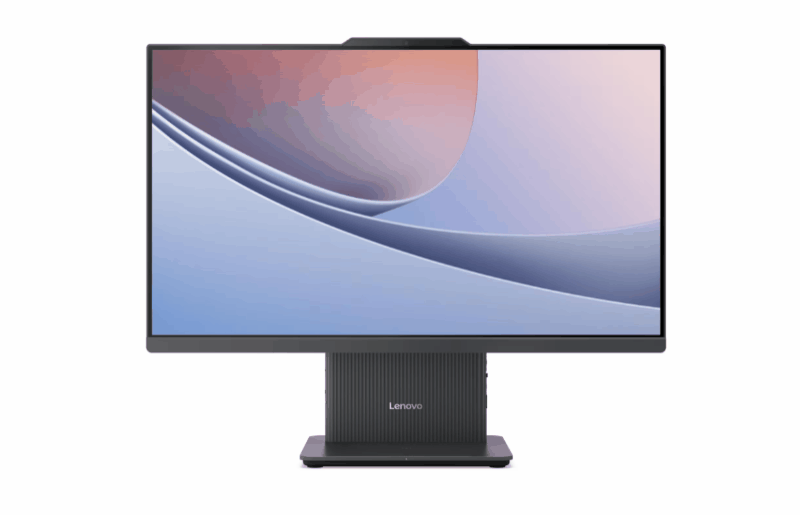

Lenovo IdeaCentre AIO 24ILL11 F0JY002NPH | 23.8in FHD IPS | Core Ultra 5 226V | 16GB RAM | 512GB SSD | Intel Arc | Win11

Specifications

Model
Lenovo IdeaCentre AIO 24ILL11

Part Number
F0JY002NPH

AI PC Category
AI PC

PERFORMANCE

Processor
Intel Core Ultra 5 226V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB Intel® Smart Cache

NPU
Integrated Intel® AI Boost, up to 40 TOPS

Graphics
Integrated Intel® Arc Graphics 130V

Chipset
Intel® SoC Platform

Memory
16GB Soldered LPDDR5X-8533, MoP Memory

Memory Slots
Memory soldered to systemboard, no slots, dual-channel

Max Memory
16GB soldered LPDDR5X-8533 MoP, not upgradable

Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Max Storage Support
One drive, up to 1TB M.2 SSD

Card Reader
No Card Reader

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC233 codec

Speakers
3Wx2, HARMAN

Camera
5.0MP

Microphone
Dual Microphone

Power Supply
90W 89% Adapter

DESIGN

Display
23.8" FHD (1920x1080) IPS Anti-glare 250nits, 100Hz, 99% sRGB, hardware low blue light, 3-side borderless, non-touch

Touchscreen
Non-touch

Keyboard
Wireless EOS Keyboard, Luna Grey, English

Mouse
Wireless EOS Mouse, Luna Grey

Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)

Case Color
Luna Grey

Stand
Monitor Stand

Wireless Charger
No Wireless Charger

Pen
Pen Not Supported

Form Factor
AIO (23.8 inches)

Dimensions (WxDxH)
539.5 x 192.1 x 437.97 mm (21.24 x 7.56 x 17.24 inches)

Weight
Around 6.0 kg (13.23 lbs)

CONNECTIVITY

WLAN + Bluetooth
Wi-Fi® 6, 802.11ax 2x2 + BT5.3

WWAN
WWAN Not Supported

Rear Ports
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x HDMI®-in
1x Ethernet (RJ-45)
1x power connector

Left Ports
1x Camera switch
1x Power button

Right Ports
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)

SECURITY & PRIVACY

Security Chip
Firmware TPM 2.0 integrated in SoC

CERTIFICATIONS

Green Certifications
ErP Lot 3/7
GREENGUARD®
RoHS compliant

SOFTWARE

Operating System
Windows® 11 Home, English

Bundled Software
Microsoft® 365 Basic + Office Home 2024
