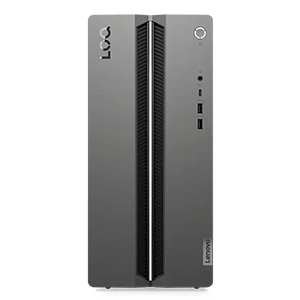

Lenovo LOQ Tower 17IAX10 91AY007YPH | Core Ultra 7 251HX | 32GB DDR5 | 1TB SSD | GF RTX 5060 Ti, 8GB | WIN11

Specifications

Model Lenovo LOQ Tower 17IAX10

Part Number 91AY007YPH

PERFORMANCE

Processor Intel Core Ultra 7 251HX 18 Cores (6P + 12E) / 18 Threads Max Turbo Frequency: Up to 5.1GHz 30MB Intel® Smart Cache

AI PC Category AI PC

NPU Integrated Intel® AI Boost Up to 13 TOPS

Graphics NVIDIA GeForce RTX 5060 Ti 8GB GDDR7

Chipset Intel® HM870 Chipset

Memory 32GB SODIMM DDR5-5600 (2 × 16GB)

Memory Slots Two DDR5 SODIMM slots Dual-channel capable

Maximum Memory Up to 32GB DDR5-5600

Storage 1TB M.2 2280 PCIe® 4.0 x4 NVMe® SSD

Optane Memory None

Maximum Storage Support Up to two drives, 2 × M.2 SSD M.2 SSD up to 1TB each

Card Reader No card reader

Optical Drive None

Audio Chip High Definition (HD) Audio Realtek® ALC623-CG codec

24-bit DAC supports 44.1K / 48K / 96K sample rates 4-channel DAC supports 16 / 20 / 24-bit PCM format for independent two-stereo-channel or 2.1 audio playback 24-bit ADC supports 44.1K / 48K / 96K sample rates 4-channel ADC supports 16 / 20 / 24-bit PCM format for independent two-stereo-channel audio inputs

Speakers No speakers

Power Supply 500W, 92% efficiency

DESIGN

Keyboard USB Calliope Keyboard Luna Grey, English layout

Mouse USB Calliope Mouse, Luna Grey

Expansion Slots One PCIe® 4.0 x16, full-height One PCIe® 3.0 x1, full-height Three M.2 slots: one for WLAN and two for SSD

Case Color Luna Grey front bezel Raven Black chassis

System Fan 1 × front fan + 1 × rear fan

Pen Support Pen not supported

Form Factor Tower (17L)

Dimensions (W × D × H) 170 × 279.7 × 376mm 6.69 × 11.01 × 14.8 inches

Weight Approximately 6.7kg (14.77 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2 × 2 Bluetooth® 5.2

WWAN WWAN not supported

Ethernet Integrated 100/1000M Ethernet

Front Ports 1 × USB-C® (USB 20Gbps / USB 3.2 Gen 2x2) 2 × USB-A (USB 10Gbps / USB 3.2 Gen 2) 1 × headphone/microphone combo jack (3.5mm)

Rear Ports 2 × USB-A (Hi-Speed USB / USB 2.0) 2 × USB-A (USB 5Gbps / USB 3.2 Gen 1) 1 × HDMI® 2.1 TMDS 1 × Ethernet (RJ-45) 1 × audio-out (3.5mm) 1 × power connector

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in chipset

CERTIFICATIONS

Green Certifications ErP Lot 3 RoHS compliant

SOFTWARE

Operating System Windows® 11 Home Single Language, English
