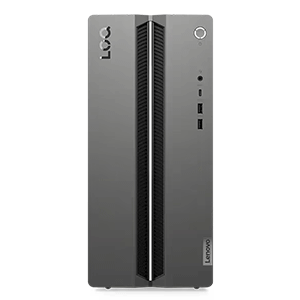

Lenovo LOQ Tower 17IAX10 91AY003KPH | Intel Core Ultra 7 255HX | 32GB DDR5 | 1TB SSD | GF RTX5060 Ti, 8GB | Win11

Technical Specifications:

Processor Intel Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB

AI PC Category AI PC

NPU Integrated Intel AI Boost, up to 16 TOPS

Graphics NVIDIA GeForce RTX 5060 Ti 8GB GDDR7

Chipset Intel HM870 Chipset

Memory 32GB SO-DIMM DDR5-5600 (2x 16GB)

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-5600

Storage 1TB SSD M.2 2280 PCIe 4.0x4 NVMe

Optane Memory None

Max Storage Support Up to two drives, 2x M.2 SSD ? M.2 SSD up to 1TB each

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek ALC623-CG codec

24-bit DAC supports 44.1K/48K/96K sample rate, 4 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback

24-bit ADC supports 44.1K/48K/96K sample rate,  4 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs

Speakers No speakers

Power Supply 500W 92%

DESIGN

Keyboard USB Calliope Keyboard, Luna Grey, English

Mouse USB Calliope Mouse, Luna Grey

Expansion Slots One PCIe 4.0 x16, full height

One PCIe 3.0 x1, full-height

Three M.2 slots (one for WLAN, two for SSD)

Case Color Luna Grey (Front Bezel), Raven Black (Chassis)

System Fan 1x Front + 1x Rear

Pen Pen Not Supported

Form Factor Tower (17L)

Dimensions (WxDxH) 170 x 279.7 x 376 mm (6.69 x 11.01 x 14.8 inches)

Weight Around 6.7 kg (14.77 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi 6, 802.11ax 2x2 + BT5.2

WWAN Non-WWAN

Ethernet Integrated 100/1000M

Front Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2)

2x USB-A (USB 10Gbps / USB 3.2 Gen 2)

1x headphone / microphone combo jack (3.5mm)

Rear Ports 2x USB-A (Hi-Speed USB / USB 2.0)

2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x HDMI 2.1 TMDS

1x Ethernet (RJ-45)

1x audio-out (3.5mm)

1x power connector

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in chipset

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Upgrade 3Y Premium Care - Idea DT (ESS)

CERTIFICATIONS

Green Certifications ErP Lot 3

RoHS compliant

SOFTWARE

Operating System Windows 11 Home Single Language, English

Bundled Software Office Home 2024 + Lenovo AI Now
