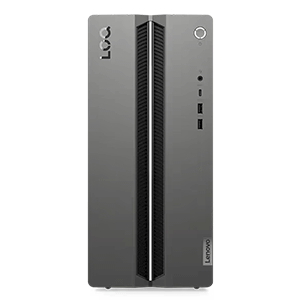

Lenovo LOQ Tower 17IAX10 91AY001GPH | Intel Core Ultra 7 255HX | 32GB DDR5 | 1TB SSD | GF RTX4060, 8GB | Win11

Technical Specifications:

PERFORMANCE

AI PC Category None

Processor Intel® Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB

NPU Integrated Intel® AI Boost, up to 16 TOPS

Graphics NVIDIA® GeForce RTX? 4060 8GB GDDR6

Chipset Intel® HM870 Chipset

Memory 32GB SO-DIMM DDR5-5600 (2x 16GB)

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-5600

Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Optane Memory None

Storage Support Up to two drives, 2x M.2 SSD ? M.2 SSD up to 1TB each

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers No speakers

Power Supply 500W 92%

DESIGN

Keyboard USB Calliope Keyboard, Luna Grey, English

Mouse USB Calliope Mouse, Luna Grey

Expansion Slots One PCIe® 4.0 x16, full height

One PCIe® 3.0 x1, full-height

Three M.2 slots (one for WLAN, two for SSD)

Case Color Luna Grey (Front Bezel), Raven Black (Chassis)

System Fan 1x Front + 1x Rear

Pen Pen Not Supported

Form Factor Tower (17L)

Dimensions (WxDxH) 170 x 279.7 x 376 mm (6.69 x 11.01 x 14.8 inches)

Weight Around 6.7 kg (14.77 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN Non-WWAN

Ethernet Integrated 100/1000M

Front Ports 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2)

2x USB-A (USB 10Gbps / USB 3.2 Gen 2)

1x headphone / microphone combo jack (3.5mm)

Rear Ports 2x USB-A (Hi-Speed USB / USB 2.0)

2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x HDMI® 2.1 TMDS

1x Ethernet (RJ-45)

1x audio-out (3.5mm)

1x power connector

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in chipset

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Upgrade 3Y Premium Care - Idea DT (ESS)

CERTIFICATIONS

Green Certifications ErP Lot 3

RoHS compliant

-

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Office Home 2024
