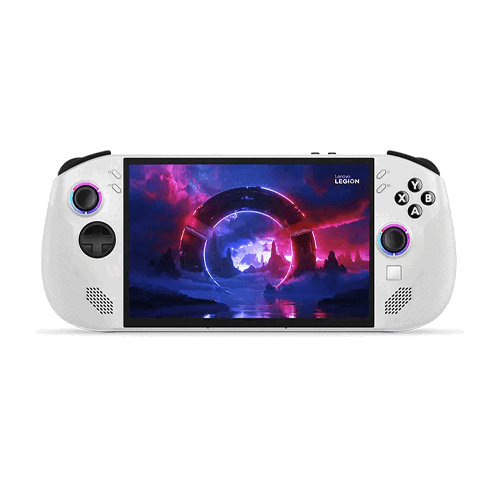

Lenovo Legion Go S 8ARP1 83L3000NPH | 8inch WUXGA Touch | AMD Ryzen Z2 Go | 16GB RAM | 512GB SSD | AMD Radeon Graphics | WIN11

Technical Specifications

Processor: AMD Ryzen Z2 Go (4C / 8T, 3.0 / 4.3GHz, 2MB L2 / 8MB L3)

Graphics: Integrated AMD Radeon Graphics

Chipset : AMD SoC Platform

Memory: 16GB Soldered LPDDR5x-6400

Memory Slots: Memory soldered to systemboard, no slots

Max Memory: 16GB soldered memory, not upgradable

Storage : 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Support: One drive, up to 1TB M.2 2242 SSD

Storage Slot: One M.2 2280 PCIe® 4.0 x4 slot

Card Reader: microSD Card Reader

Optical: None

Audio Chip: High Definition (HD) Audio

Speakers: Stereo speakers, 2W x2

Camera : None

Microphone: 2x, Array

Battery: Integrated 55.5Wh

Power Adapter: 65W USB-C® Slim (2-pin, Wall-mount)

Special Features: Legion Coldfront cooling system

DESIGN

Display: 8inch WUXGA (1920x1200) IPS 500nits Glossy / Anti-fingerprint, 100% sRGB, 48-120Hz VRR, Panda King Glass, Low Blue Light, Touch

Touchscreen: In-cell, 10-point Multi-touch

Touchpad: Buttonless Mylar® surface touchpad (on the right controller), 10 x 10 mm (0.39 x 0.39 inches)

Case Color: Glacier White

Surface Treatment: Painting + Laser Special Texture

Case Material

PC-ABS + 15% Talc

Pen Not Supported

Controls: A B X Y buttons D-pad Touchpad Left & right Joysticks 4x function buttons Y1 & Y2 buttons LT & RT buttons LB & RB buttons LT & RT button range switch

Dimensions (WxDxH) 298.5 x 127.55 x 22.6-43.4 mm (11.75 x 5.02 x 0.89-1.71 inches)

Weight Around 740 g (1.63 lbs)

Others

Power button

Volume keys

SOFTWARE

Operating System: Windows® 11 Home Single Language, English

Bundled Software: Office Trial

CONNECTIVITY
Ethernet No Onboard Ethernet
WLAN + Bluetooth AMD Wi-Fi® 6E RZ616, 11ax 2x2 + BT5.3
WWAN Non-WWAN

Standard Ports
2x USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4)
1x Headphone / microphone combo jack (3.5mm)
1x Card reader

Docking: Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion Go S 8ARP1

SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader: None

SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 2Y Depot/CCI -IPENTRY (ESS)

ACCESSORIES
Bundled Accessories: None

CERTIFICATIONS
Green Certifications
ErP Lot 6/26
RoHS compliant
Other Certifications: TÜV Rheinland® Low Blue Light (Hardware Solution)
