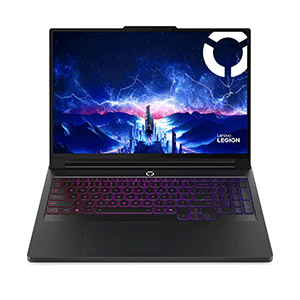

Lenovo Legion Pro 7i 16IAX10H 83F5008GPH | Intel Core Ultra9 275HX | 16in WQXGA | 64GB DDR5 | 1TB SSD | NVIDI GF RTX5080, 16G | Win 11

Technical Specifications:

Model Legion Pro 7i 16IAX10H

Part No. 83F5008GPH

PERFORMANCE

Processor Intel Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB

AI PC Category AI-Powered Gaming PC

NPU Integrated Intel AI Boost, up to 13 TOPS

Graphics NVIDIA GeForce RTX 5080 16GB GDDR7, Boost Clock 2287MHz, TGP 175W, 1334 AI TOPS

Chipset Intel HM870 Chipset

Memory 2x 32GB CSODIMM DDR5-6400

Memory Slots Two DDR5 CSODIMM slots, dual-channel capable

Max Memory Up to 64GB DDR5-6400 offering

Storage 1TB SSD M.2 2242 PCIe 4.0x4 NVMe

Storage Support Up to two drives, 2x M.2 SSD ? M.2 2242 SSD up to 1TB ? M.2 2280 SSD up to 2TB

Storage Slot Two M.2 slots ? One M.2 2280 PCIe 5.0 x4 slot ? One M.2 2280 PCIe 4.0 x4 slot

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek ALC3306 codec

Speakers 4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Nahimic Audio, Smart Amplifier (AMP)

Camera 5.0MP with E-shutter

Microphone 2x, Array

Battery 80Wh

Power Adapter 400W Slim Tip (3-pin)

Special Features AI Chip: LA3

-

DESIGN -

Display 16" WQXGA (2560x1600) OLED 500nits Glossy, 100% DCI-P3, 240Hz, DisplayHDR True Black 1000, Dolby Vision, G-SYNC, Low Blue Light, High Gaming Performance, Flicker Free

Touchscreen None

Color Calibration Factory Color Calibration

Keyboard Per-key RGB Backlit, English

Touchpad Buttonless Mylar surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)

Case Color Eclipse Black

Surface Treatment Anodizing Sandblasting

Case Material Aluminium (Top), Aluminium (Bottom)

Pen Pen Not Supported

Dimensions (WxDxH) 364.38 x 275.94 x 21.9-26.65 mm (14.35 x 10.86 x 0.86-1.05 inches)

Weight Starting at 2.57 kg (5.67 lbs)

SOFTWARE

Operating System Windows 11 Home Single Language, English

Bundled Software Office Home 2024

CONNECTIVITY

Ethernet -

WLAN + Bluetooth Wi-Fi 7, 802.11be 2x2 + BT5.4

WWAN Non-WWAN

Ethernet 2.5GbE (RJ-45)

Standard Ports 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On

- 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort 2.1

- 1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 2.1)

- 1x HDMI 2.1, up to 8K/60Hz

- 1x Headphone / microphone combo jack (3.5mm)

- 1x Ethernet (2.5GbE RJ-45)

- 1x Power connector

Docking Various docking solutions supported via Thunderbolt or USB-C. For more compatible docking solutions, please visit Docking for Legion Pro 7 16IAX10H

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 Enabled

Fingerprint Reader None

Other Security E-shutter

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Warranty Upgrade 3Y ADP - IPPREM (ESS), 3Y Legion Ultimate Support -IPPREM (ESS)

ACCESSORIES

Bundled Accessories 4 Switchable Keycaps

CERTIFICATIONS

Green Certifications ErP Lot 3

- RoHS compliant

Other Certifications TÜV Rheinland Flicker Free

- TÜV Rheinland High Gaming Performance

TÜV Rheinland Low Blue Light (Hardware Solution)
