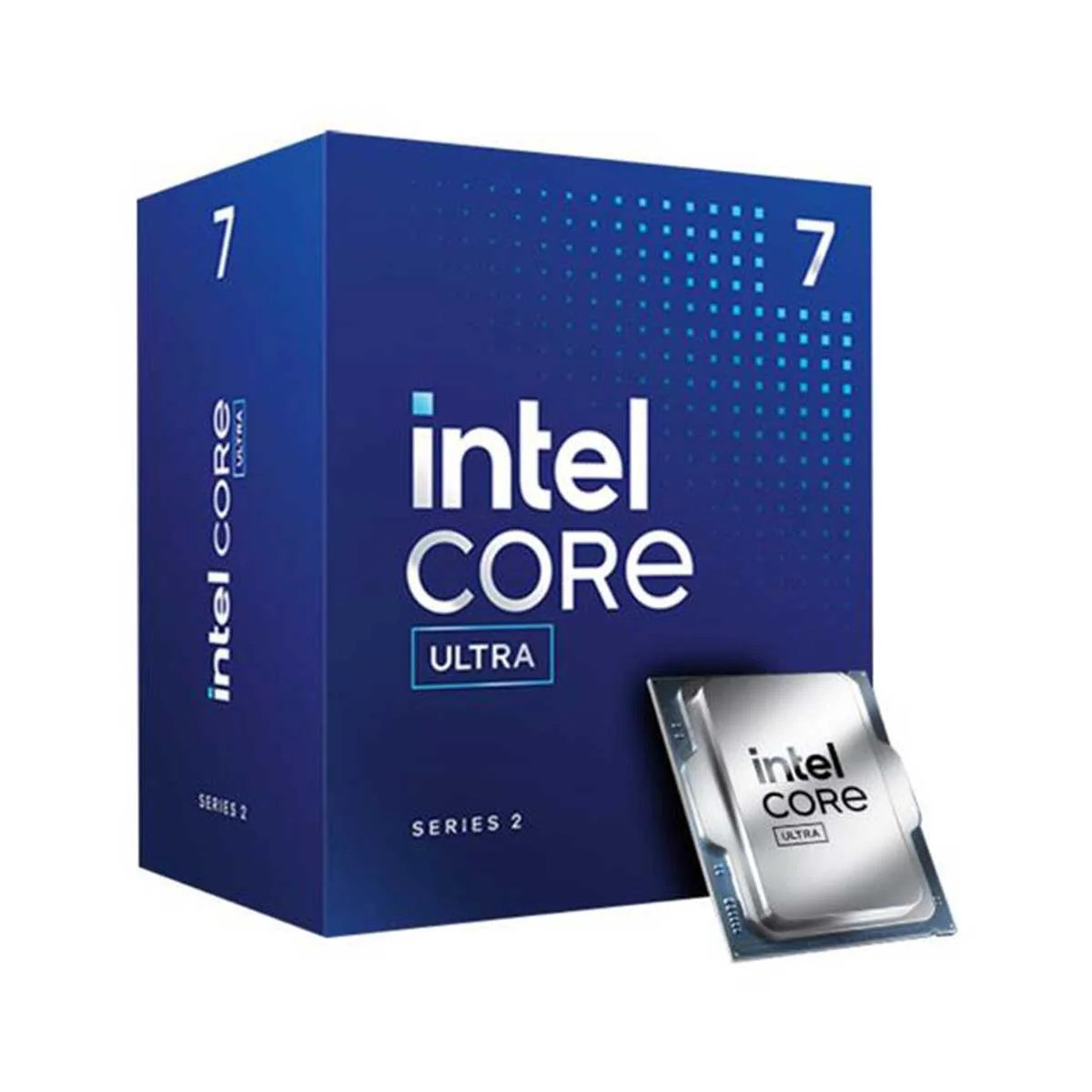

Intel Core Ultra 7 Processor 265F 30M Cache, up to 5.30 GHz

Specifications

Essentials

Product Collection
Intel® Core? Ultra Processors (Series 2)

Code Name
Products formerly Arrow Lake

Vertical Segment
Desktop

Processor Number
265F

Overall Peak TOPS (Int8)
25

CPU Specifications
Total Cores 20
Performance-cores 8
Efficient-cores 12
Low Power Efficient-cores 0
Total Threads 20
Max Turbo Frequency 5.3 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency 5.3 GHz
Performance-core Max Turbo Frequency 5.2 GHz
Efficient-core Max Turbo Frequency 4.6 GHz
Performance-core Base Frequency 2.4 GHz
Efficient-core Base Frequency 1.8 GHz
Cache 30 MB Intel® Smart Cache
Total L2 Cache 36 MB
Processor Base Power 65 W
Maximum Turbo Power 182 W
CPU Lithography TSMC N3B
Intel® Deep Learning Boost (DL Boost) on CPU Yes
AI Software Frameworks Supported by CPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebNN

Memory Specifications
Max Memory Size 256 GB
Memory Types Up to DDR5 6400 MT/s
Max Memory Channels 2
ECC Memory Supported No

GPU Specifications
Integrated Graphics None
Graphics Output n/a
Xe-cores 0
Intel® Quick Sync Video No
Displays Supported 0

NPU Specifications
NPU Name Intel® AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options
DMI Revision 4
Max DMI Lanes 8
Intel® Thunderbolt? 4 Yes
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max PCI Express Lanes 24

Package Specifications
Socket FCLGA1851
Thermal Solution Specification PCG 2022C
Max Operating Temperature 105 °C
Package Size 45 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.5
Intel® Thread Director Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology No
Intel® 64
Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device
Yes

Security & Reliability
Intel® Threat Detection Technology
Yes
Intel® Active Management Technology
No
Intel® Standard Manageability
Yes
Intel® Remote Platform Erase
No
Intel® One-Click Recovery
No
Intel® Secure Key
Yes
Intel® Control-Flow Enforcement Technology
Yes
Intel® Total Memory Encryption ? Multi Key
No
Intel® AES New Instructions
Yes
Intel® Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel® OS Guard
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control
Yes
Intel® Stable IT Platform Program
No
Intel® Virtualization Technology with Redirect Protection
No
Intel® Virtualization Technology (VT-x)
Yes
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® VT-x with Extended Page Tables
Yes
