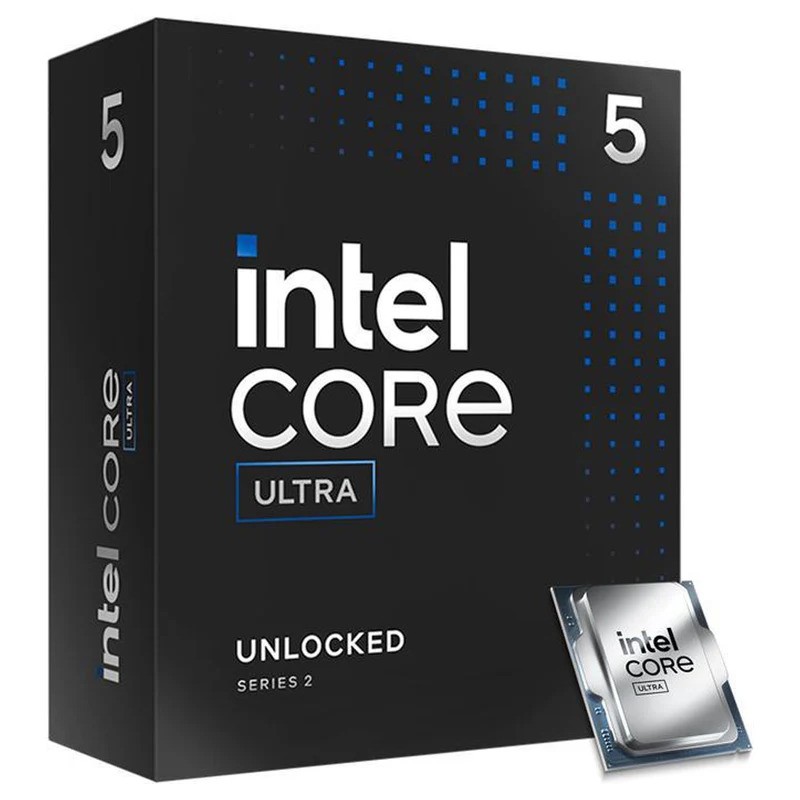

Intel Core Ultra 5 Processor 245K 24M Cache, up to 5.20 GHz

Specifications

Essentials

Product Collection
Intel® Core? Ultra Processors (Series 2)

Code Name
Products formerly Arrow Lake

Vertical Segment
Desktop

Processor Number
245K

Overall Peak TOPS (Int8)
30

CPU Specifications

Total Cores 14
Performance-cores 6
Efficient-cores 8
Low Power Efficient-cores 0
Total Threads 14
Max Turbo Frequency 5.2 GHz
Performance-core Max Turbo Frequency 5.2 GHz
Efficient-core Max Turbo Frequency 4.6 GHz
Performance-core Base Frequency 4.2 GHz
Efficient-core Base Frequency 3.6 GHz
Cache 24 MB Intel® Smart Cache
Total L2 Cache 26 MB
Processor Base Power 125 W
Maximum Turbo Power 159 W
CPU Lithography TSMC N3B
Intel® Deep Learning Boost (DL Boost) on CPU Yes
AI Software Frameworks Supported by CPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebNN

Memory Specifications

Max Memory Size 256 GB
Memory Types Up to DDR5 6400 MT/s
Max Memory Channels 2
ECC Memory Supported Yes

GPU Specifications

GPU Name Intel® Graphics
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.9 GHz
GPU Peak TOPS (Int8) 8
Xe-cores 4
Graphics Output eDP 1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Max Resolution (HDMI) 4096 x 2304 @ 60Hz (TMDS), 7680 x 4320 @ 60Hz (FRL)
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP) 3840 x 2400 @ 120Hz
DirectX Support 12
OpenGL Support 4.5
OpenCL Support 3
H.264 Encode/Decode Yes
H.265 (HEVC) Encode/Decode Yes
AV1 Encode/Decode Yes
Intel® Quick Sync Video Yes
Displays Supported 4
Device ID 0x7D67
Intel® DL Boost on GPU Yes
AI Software Frameworks Supported by GPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications

NPU Name Intel® AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

DMI Revision 4
Max DMI Lanes 8
Intel® Thunderbolt? 4 Yes
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max PCI Express Lanes 24

Package Specifications

Socket FCLGA1851
Thermal Solution Specification PCG 2020A
Max Operating Temperature 105 °C
Package Size 45 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator 3.5
Intel® Thread Director Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology No
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device Yes

Security & Reliability

Intel vPro® Eligibility Intel vPro® Enterprise
Intel® Threat Detection Technology Yes
Intel® Active Management Technology Yes
Intel® Standard Manageability Yes
Intel® Remote Platform Erase Yes
Intel® One-Click Recovery Yes
Intel® Secure Key Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® Total Memory Encryption ? Multi Key Yes
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® OS Guard Yes
Intel® Boot Guard Yes
Mode-based Execute Control Yes
Intel® Stable IT Platform Program Yes
Intel® Virtualization Technology with Redirect Protection Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables Yes
