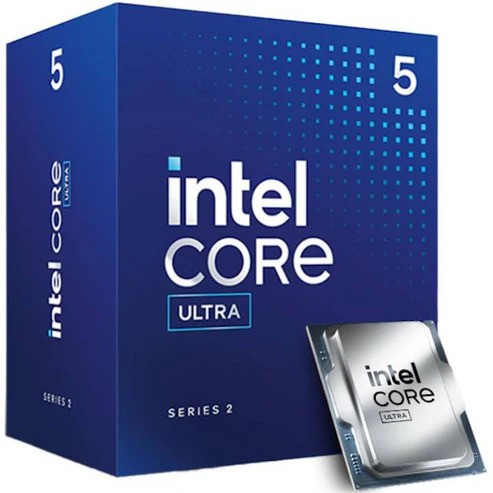

Intel Core Ultra 5 Processor 225 20M Cache, up to 4.90 GHz

Specifications

Essentials

Product Collection
Intel® Core? Ultra Processors (Series 2)

Code Name
Products formerly Arrow Lake

Vertical Segment
Desktop

Processor Number
225

Overall Peak TOPS (Int8)
23

CPU Specifications

Total Cores 10
Performance-cores 6
Efficient-cores 4
Low Power Efficient-cores 0
Total Threads 10
Max Turbo Frequency 4.9 GHz
Performance-core Max Turbo Frequency 4.9 GHz
Efficient-core Max Turbo Frequency 4.4 GHz
Performance-core Base Frequency 3.3 GHz
Efficient-core Base Frequency 2.7 GHz
Cache 20 MB Intel® Smart Cache
Total L2 Cache 22 MB
Processor Base Power 65 W
Maximum Turbo Power 121 W
CPU Lithography TSMC N3B
Intel® Deep Learning Boost (DL Boost) on CPU Yes
AI Software Frameworks Supported by CPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebNN

Memory Specifications

Max Memory Size 256 GB
Memory Types Up to DDR5 6400 MT/s
Max Memory Channels 2
ECC Memory Supported No

GPU Specifications

GPU Name Intel® Graphics
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.8 GHz
GPU Peak TOPS (Int8) 4
Graphics Output eDP 1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores 2
Max Resolution (HDMI) 4096 x 2304 @ 60Hz (TMDS), 7680 x 4320 @ 60Hz (FRL)
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP) 3840 x 2400 @ 120Hz
DirectX Support 12
OpenGL Support 4.5
OpenCL Support 3
H.264 Hardware Encode/Decode Yes
H.265 (HEVC) Hardware Encode/Decode Yes
AV1 Encode/Decode Yes
Intel® Quick Sync Video Yes
Displays Supported 4
Device ID 0x7D67
Intel® DL Boost on GPU Yes
AI Software Frameworks Supported by GPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebGPU

NPU Specifications

NPU Name Intel® AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPU OpenVINO?, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

DMI Revision 4
Max DMI Lanes 8
Intel® Thunderbolt? 4 Yes
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
Max PCI Express Lanes 24

Package Specifications

Socket FCLGA1851
Thermal Solution Specification PCG 2022C
Max Operating Temperature 105 °C
Package Size 45 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator 3.5
Intel® Thread Director Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology No
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device Yes

Security & Reliability

Intel® Threat Detection Technology Yes
Intel® Active Management Technology No
Intel® Standard Manageability Yes
Intel® Remote Platform Erase No
Intel® One-Click Recovery No
Intel® Secure Key Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® Total Memory Encryption ? Multi Key No
Intel® AES New Instructions Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® OS Guard Yes
Intel® Boot Guard Yes
Mode-based Execute Control Yes
Intel® Stable IT Platform Program No
Intel® Virtualization Technology with Redirect Protection No
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables Yes
