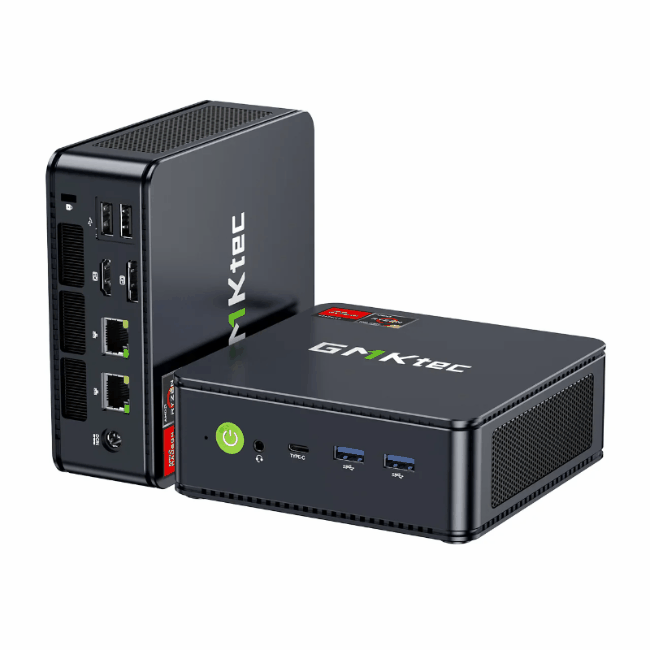

GMKtec NucBox M5 Ultra Mini PC | AMD Ryzen 7 7730U | 16GB DDR4 | 512GB PCIe SSD | Windows 11 Pro

Specifications

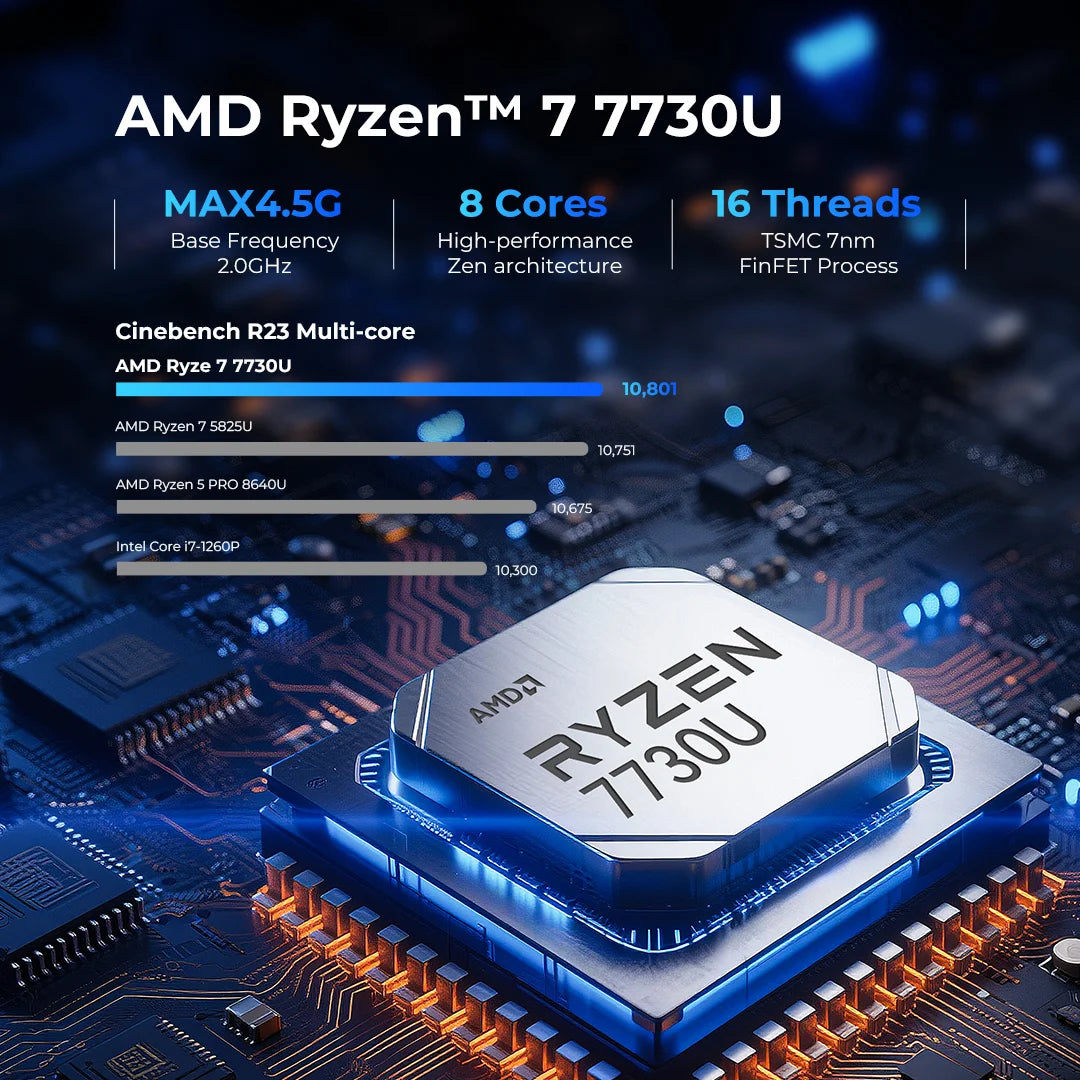

CPU
AMD Ryzen 7 7730U Processor, AMD Ryzen 7000 Series, 8 Cores, 16 Threads, 2.0GHz Base Frequency, Up to 4.5GHz Boost, 4MB L2 Cache, 16MB L3 Cache, TSMC 7nm Process

---

CPU Package
FP6 Package, TSMC 7nm FinFET

---

Graphics
AMD Radeon Graphics, 8 Compute Cores, Up to 2000MHz

---

Memory
2x 8GB = 16GB DDR4 3200, 2x SO-DIMM Slots, Supports Up to 64GB

---

Storage
512GB M.2 2280 PCIe 3.0 SSD

---

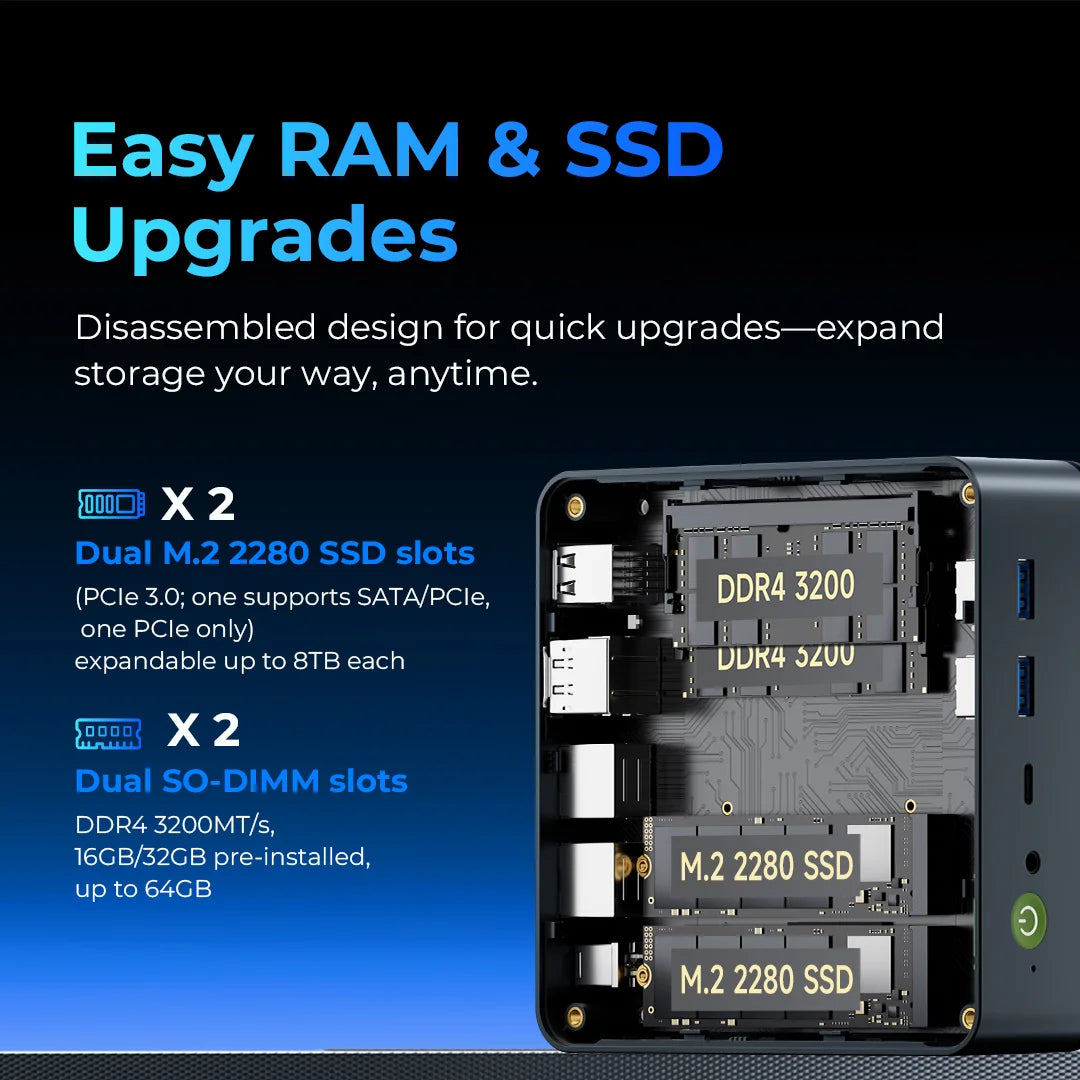

Storage Expansion
2x M.2 2280 SSD Slots, Supports Up to 8TB per SSD (Up to 16TB Total)

---

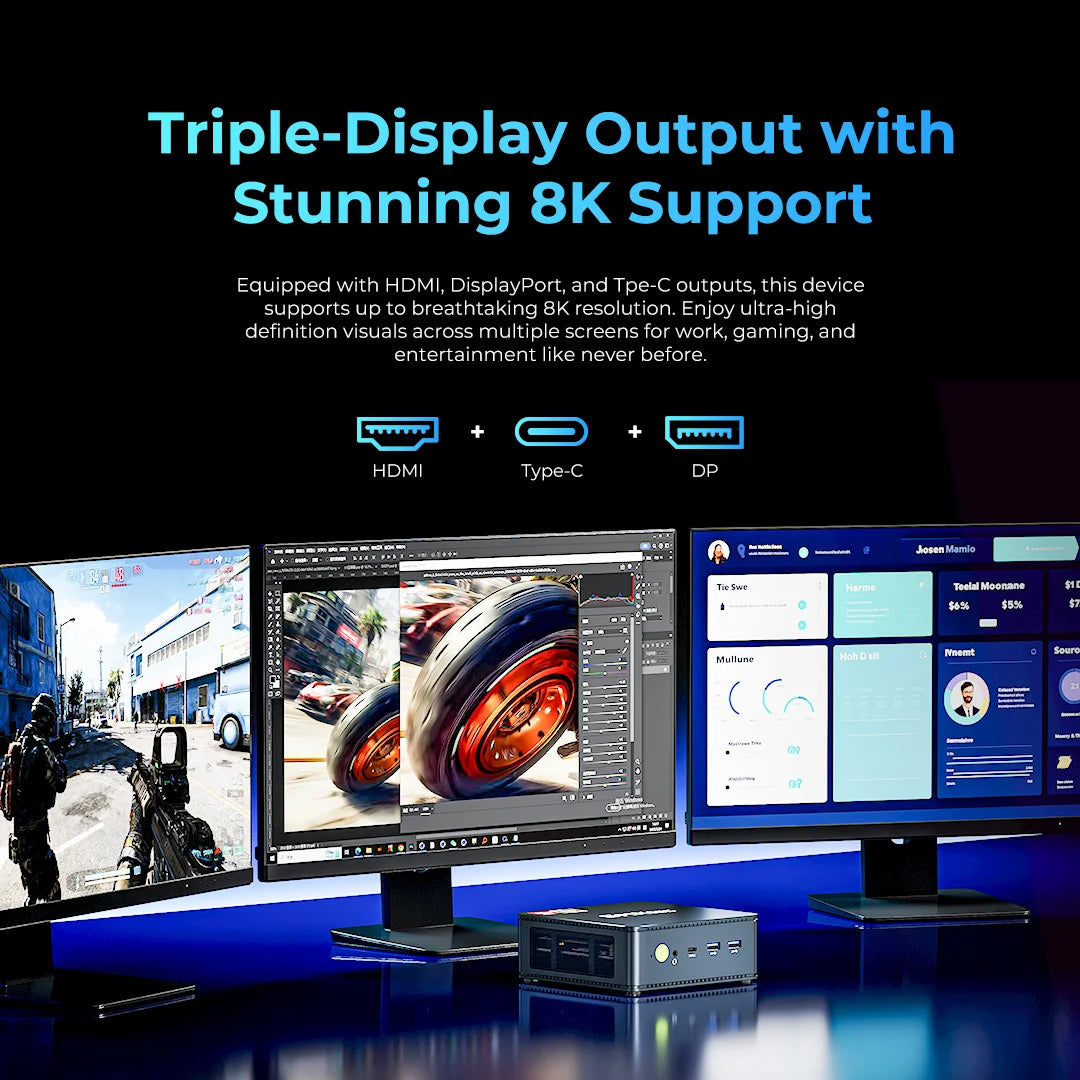

Graphics Output
Triple Display Support via HDMI, DisplayPort, and USB-C, Supports Up to 8K Resolution via DisplayPort

---

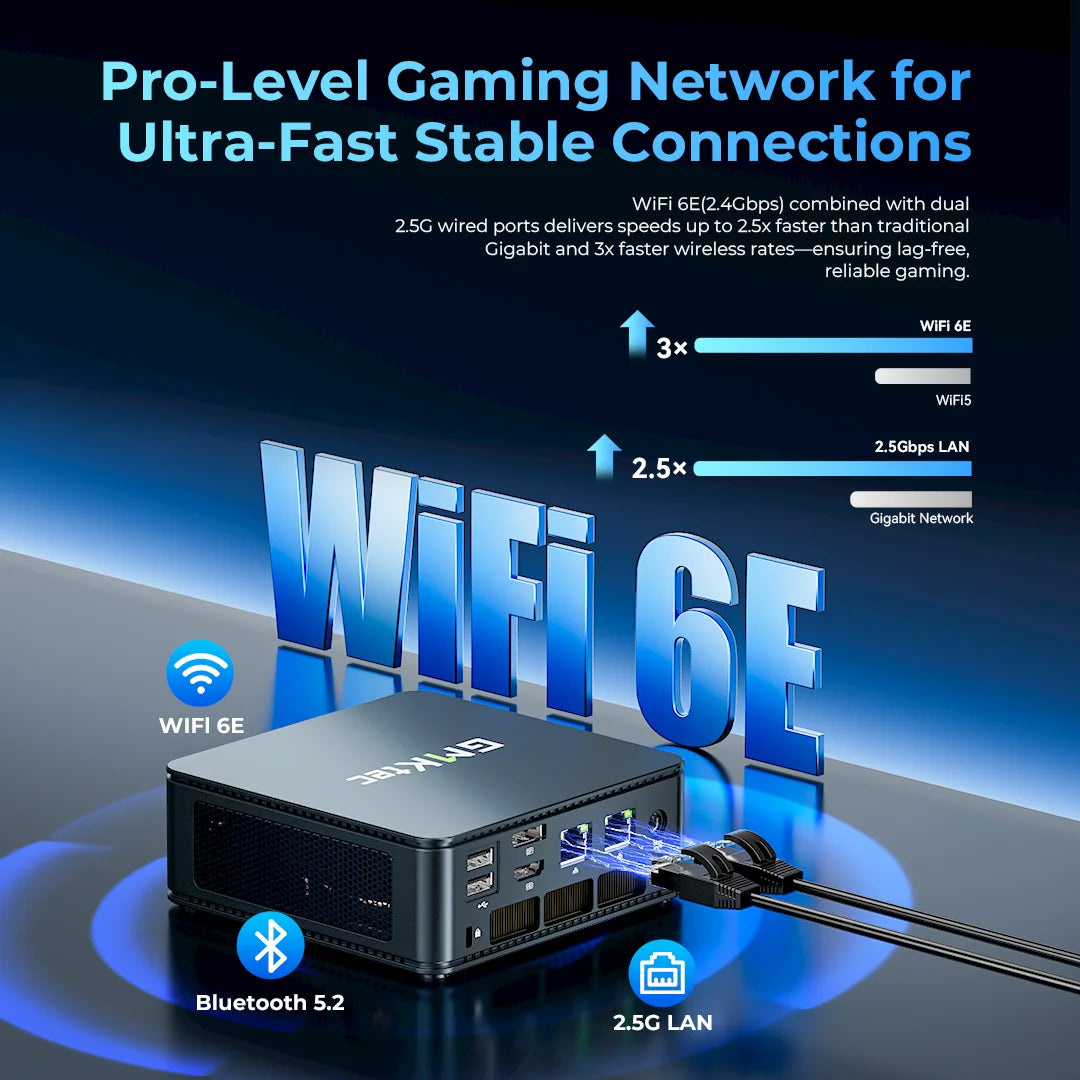

Network
Wi-Fi 6E (RZ616, Up to 2.4Gbps), Bluetooth 5.2, Dual 2.5G Ethernet LAN

---

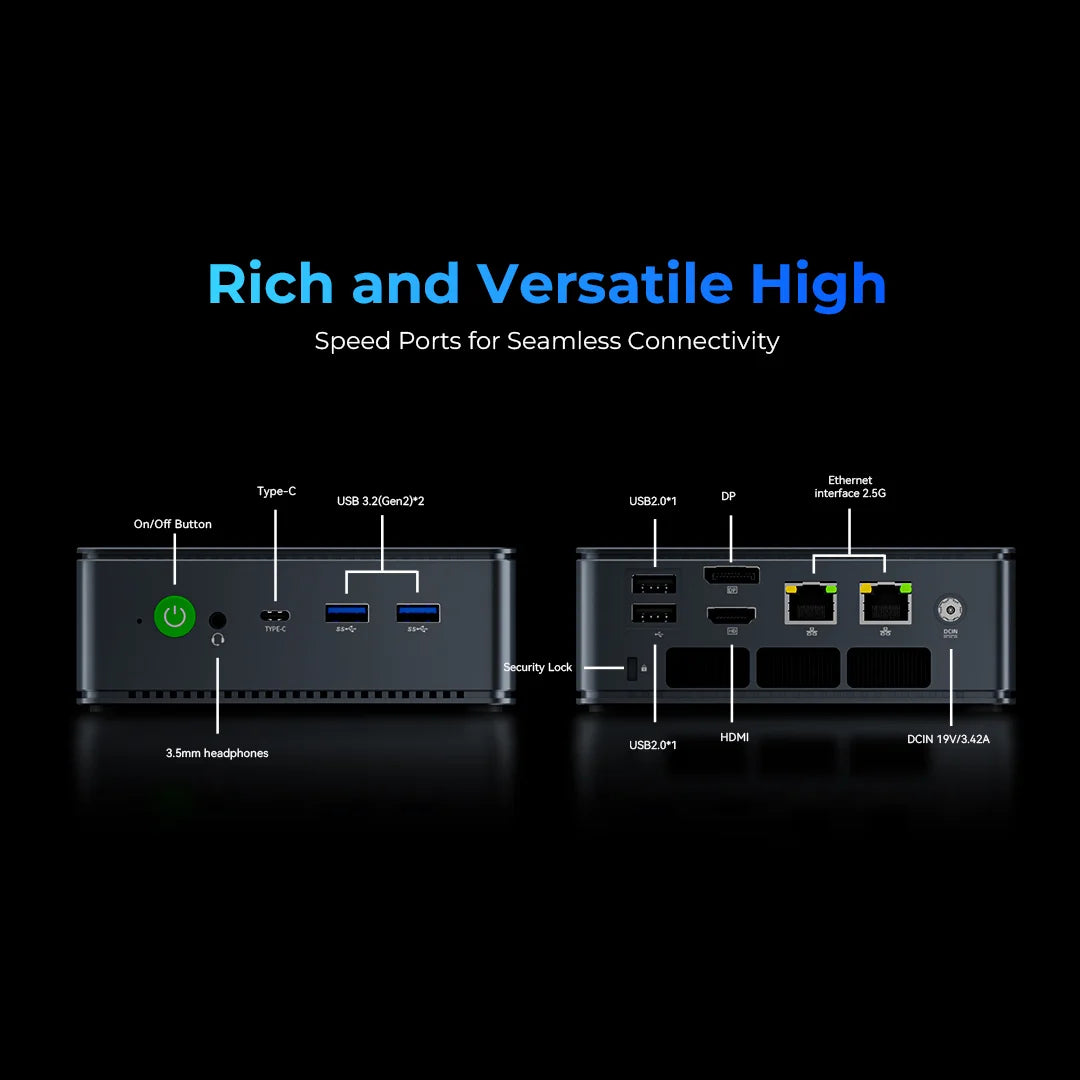

USB Ports
2x USB 3.2 Gen2 (10Gbps), 2x USB 2.0

---

USB-C Port
1x USB 3.2 Gen2 Type-C with DisplayPort 1.4, 100W Power Delivery, Up to 4K@60Hz

---

HDMI Port
1x HDMI 2.0 (Up to 4K@60Hz)

---

DisplayPort
1x DisplayPort 1.4 (Up to 8K@60Hz)

---

Audio
1x 3.5mm CTIA Audio Jack

---

LAN
2x RJ45 2.5G Ethernet Ports

Power
DC IN (19V/3.42A), Built-in Coin Cell Battery

---

Reset Button
1

---

Operating System
Windows 11 Pro

---

Language Support
English, Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic

---

Dimensions
128.8 × 127 × 47.8 mm

---

Weight
28g

---

Color
Rust Color

---

Operating Temperature
0°C to 40°C

---

Certifications
CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report

---

Package Contents
User Manual, Warranty Card, Power Adapter, VESA Mount Bracket, HDMI Cable
