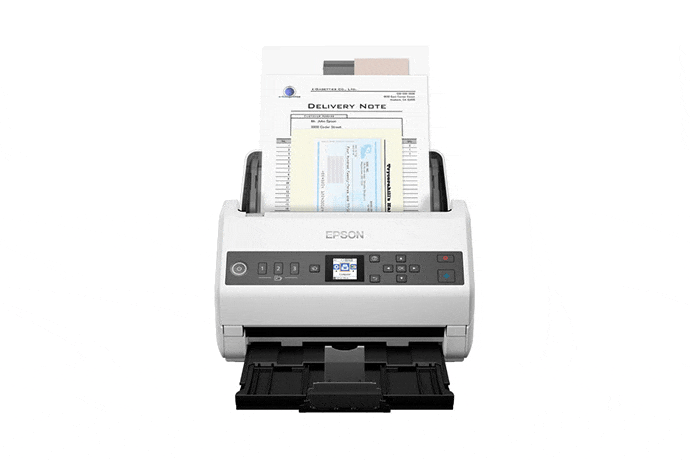

Epson WorkForce DS-730N A4 Duplex Sheet-fed Document Scanner

Specifications

Scanner:
Scanner Type:
A4 sheet-fed, one-pass duplex colour scanner

Sensor Type:
Contact Image Sensor (CIS) x 2

Scanning Method:
Fixed carriage and moving document

Light Source:
RGB LED x 2

Optical Resolution*1:
600 x 600 dpi

Output Resolution:
50 ? 1,200 dpi (in 1 dpi increments)

Bit Depth:
Colour: 30-bit input, 24-bit output
Grayscale: 10-bit input, 8-bit output
Black and White: 10-bit input, 1-bit output

Supported Paper Weight:
27 ? 413 g/m2 (Less than A8 size: 127 ? 413 g/m2)

ADF Capacity:
100 sheets (80 g/m2)

Daily Scan Volume:
Up to 6,500 sheets / day

Multi-feed Detection:
Ultrasonic Sensor and Length Detection

Interface:
USB 2.0
Ethernet (1000BASE-T/100BASE-TX/10BASE-T)

Max Document Size:
215.9 x 6,096 mm

Min Document Size:
50.8 x 50.8 mm

Scan to Destinations :
Computer (Document Capture Pro), Network
Folder/FTP, Email, Computer (WSD)

*Scanning Speed 2:
Resolution (A4, Colour/Monochrome):
300 dpi: 40 ppm / 80 ipm
600 dpi: 12 ppm / 24 ipm

Drivers and Software:
Supported OS (Scanner Driver):
Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11
Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022
Mac OS X 10.6.8 or later, macOS 11 or later

Driver Compatibility:
TWAIN, SANE, WIA, ICA, ISIS

Bundled Software:
Epson Scan 2
ISIS Driver (Web Download)
Epson Scan OCR Component
Epson Scan PDF Extensions
Document Capture Pro (Windows) / Document Capture (Mac)

Software Solutions Compatibility:
Document Capture Pro Server
Epson Device Admin
Epson Remote Services

File Format:
Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP*3, PNG
Document Capture Pro: JPEG, JPEG2000 *3, BMP 3, PDF, Searchable PDF, TIFF, Multi-TIFF3, PNG, DOCX, XLSX, PPTX *3

Options & Consumables :
Roller Assembly Kit:
Durability: 200,000 scans
Order Code: B12B819671

Carrier Sheet:
Durability: 3,000 scans
Order Code: B12B819051

Cleaning Kit:
Order Code: B12B819291

Control Panel:
LCD Screen:
1.44? LCD

Dimensions and Weight:
Dimensions (W x D x H):
296 x 169 x 167 mm

Weight:
3.6 kg

Environmental Conditions:
Temperature:
Operating: 5 - 35°C
Storage: -25 - 60°C

Humidity:
Operating: 15 ? 80% (No condensation)
Storage: 15 ? 85% (No condensation)

Electrical Specifications:
Rated Voltage:
AC 220 ? 240 V

Rated Frequency:
50 ? 60 Hz

Power Consumption:
Operating: 13 W (USB) / 14 W (Ethernet)
Ready Mode: 5.9 W
Sleep Mode: 1.2 W (USB) / 1.5 W (Ethernet)
Power Off: 0.1 W

What's in the box:
Scanner Main unit
USB 2.0 Cable
AC Adapter
Power Cable
Software CD
Setup Guide
